ASME SB338 Titanium Alloy Tubes OD25mm OD38mm For Heat Exchange

Name: ASME SB338 Titanium Alloy Tubes OD25mm OD38mm For Heat Exchange
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: tube
Price: 24.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	tube
MOQ:	100kg
Price:	$20--$28/pcs
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5Ton per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Grade:

Gr2

Outer Diameter:

OD25mm OD38mm

Application:

Industrial,Chemical

Material:

GR1.GR2

Standard:

ASTM B338

Length:

<6000mm,6000mm Or According To Client's Requirement

Packaging Details:

Sponge wrap or plastic bag inside, plywood case as outside,

Supply Ability:

5Ton per month

Highlight:

ASME SB338 Titanium Alloy Tubes

OD25mm Titanium Alloy Tubes

OD38mm Titanium Alloy Tubes

Product Description

titanium tube ASME SB338 1inch OD25mm OD25.4mm titanium tube price per kg

1. SB338 Titanium tube specification

Product name: Gr2 titanium tube

Material: Titanium Gr2

Standard :ASTM B338 .

size: 12.7mm 19.1mm 25.4mm 31.75mm 38.1mm 45mm , or as customer's request

OD19mmxWT0.5-0.8mmx3000-12000mm

OD25mmxWT1.0-1.2mmx3000-12000mm

OD32mmxWT1.0-1.2mmx3000-6000mm

OD38mmxWT1.0-1.2mmx3000-6000mm

Or according customer’s requirement.

Status: Annealed(M)

Type:Seamless,welded

Certification: ISO9001:2015, EN10204.3.1

Seamless Titanium alloy Tube for heat exchanger, Titanium welded tube OD25mm

titanium coil tube Welded Titanium Tube,

2. Titanium tube tolerance

Titanium tube diametere tolerance(mm)

3-10

>10-30

>30-50

>50-80

>80-100

>100

Tolerance

±0.15

±0.30

±0.50

±0.65

±0.75

Length of titanium tube(mm)
Titanium seamless tube	OD	≤15	Random length	500~400
		15		500~900
Titanium welded tube	WT	0.5~1.25		500~1500
		1.25~2.0		500~6000
Titanium welded tube(rolled)	WT	2.0~2.5		500~4000
		0.5~0.8		500~8000
		>0.8~2.0		500~5000

2 . Details picture

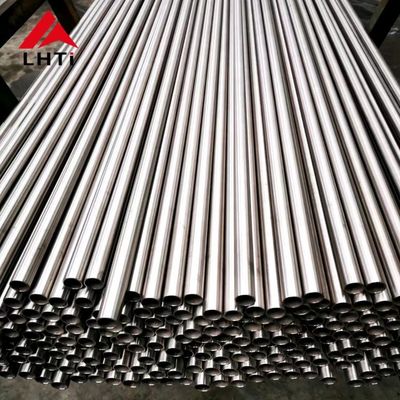

ASME SB338 Titanium Alloy Tubes OD25mm OD38mm For Heat Exchange 1

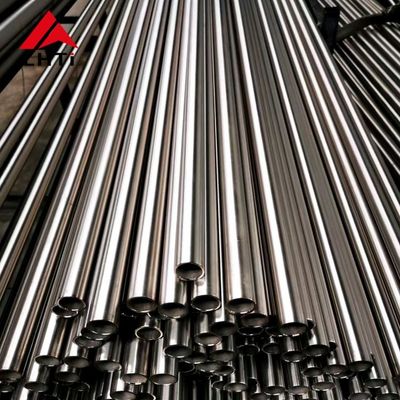

ASME SB338 Titanium Alloy Tubes OD25mm OD38mm For Heat Exchange 2

Applied field of different grade titanium:

Titanium in grade 1 and 2 is used in the chemical industry and marine technology,because of its resistance to corrosion.In addition, titanium grade 1/2 is also used in plant engineering, medical technology and in the watch and jewelery industries.

Titanium grade 5 is widely used in aviation industry and machinery industry, automobile industry--It has better physical properties and hardness than pure titanium.

Titanium Grade 7 is preferably used in chemical plants.Due to the high palladium content, Titanium Grade 7 is very resistant to corrosion. Thus, for example, titanium grade 7 is resistant to salt water and iSuitable for handling chlorides media. In addition, Titanium Grade 7 is resistant to erosion or impact.

Titanium Grade 12 alloy is similar to Titanium Grades 2 and 3 except that Titanium Grade 12 has 0.3% molybdenum and 0.8% nickel. This offers enhanced corrosion resistance.

Gr16 Medium-strength titanium plus 0.04-0.08% Pd for enhanced corrosion properties Titanium tube grades (other grades are available on request).

3. Production process

ASME SB338 Titanium Alloy Tubes OD25mm OD38mm For Heat Exchange 3

4. ASME SB388 Test as below

We provide following tests for Ti seamless and welded tubes

Chemical Composition	Visual Inspect	Ultrasonic Testing	Current Testing
Flattening Testing	Flattening Testing	Pneumatic Test	Hydrostatic Test
Tensile	Yield	Hardness	Elongation

5. Feel free to contact us titanium tube 338 supplier
