Annealed AMS 4911 Ti6al4v Gr5 Titanium Sheet 3000mm Length

Brand Name:	LHTI
Model Number:	LH-145
MOQ:	1kg
Payment Terms:	L/C,D/P, T/T etc.
Supply Ability:	10000 kgs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji Shaanxi China

Certification:

ISO9001

Standard:

ASTM/ASME B265, AMS 4911, ASTM F136

Material:

Titanium

Grade:

Grade 5

Purity:

99.0%min

Thickness:

Max 25mm

Width:

2000mm

Length:

3000mm

Key Word 1:

Titanium Sheet For Sale

Key Word 2:

Grade 5 Titanium Sheet

Key Word 3:

Grade 5 Titanium Plate

Packaging Details:

Pearl cotton package surface, then put into the standard export cases or Carton case.

Supply Ability:

10000 kgs per month

Highlight:

Gr5 Titanium Sheet

AMS 4911 Titanium Sheet

Annealed Titanium Sheet

Product Description

ASTM B265 AMS 4911 grade 5 gr5 titanium sheet plate ti6al4v price per kg

Grade 5 titanium is one of the most commonly used alloys in titanium industry, accounting for 50% of the world titanium consumption. Also known as Ti-6Al-4V (or ti6-4), this name refers to its main chemical composition of 90% titanium, 6% aluminum, 4% vanadium, 0.25% (maximum) iron and 0.2% (maximum) oxygen. It has almost the same high corrosion resistance as pure titanium, but has better strength, low elastic modulus, good weldability and heat treatment. The addition of aluminum and vanadium improves the hardness and physical and mechanical properties of the alloy.

Product name:Titanium Sheet

Material: Titanium Grade 5 (Ti6al4v)

Standard: ASTM/ASME B265, AMS 4911, ASTM F136

Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size);

Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc

Technique : Rolled

Status: Annealed(M)

MTC: EN10204.3.1 certificate

Titanium 6al4v plate
Chemical compositions(weight%,<=)
Ti	Al	V	Fe	C
Remainder	5.5-6.75	3.5-4.5	0.30	0.08
N	H	O	Other(total)
0.05	0.015	0.2	0.4
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)	δL0+50mm Elongation (%)	ψ Reduction of area (%)
895	830	8-12	18-30

Titanium 6al4v plates in stock:

Thickness: 1mm 2mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 20mm 25mm

Size: 1000*2000mm 3000*6000mm

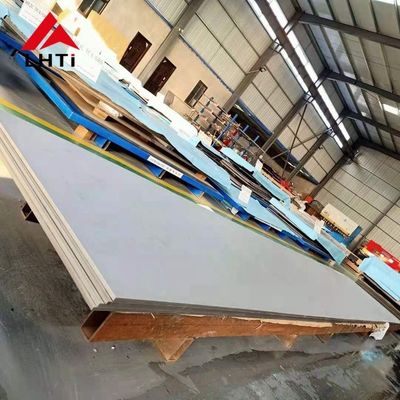

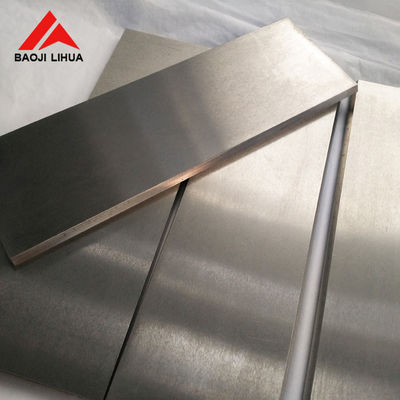

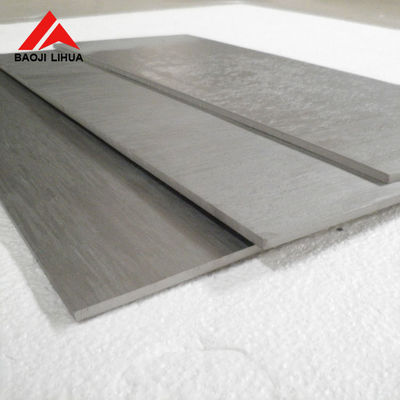

Detailed images:

Annealed AMS 4911 Ti6al4v Gr5 Titanium Sheet 3000mm Length 0

The production process of titanium plates/sheets:

Annealed AMS 4911 Ti6al4v Gr5 Titanium Sheet 3000mm Length 4

Annealed AMS 4911 Ti6al4v Gr5 Titanium Sheet 3000mm Length 5

Annealed AMS 4911 Ti6al4v Gr5 Titanium Sheet 3000mm Length 6

About our company:

Annealed AMS 4911 Ti6al4v Gr5 Titanium Sheet 3000mm Length 7

Annealed AMS 4911 Ti6al4v Gr5 Titanium Sheet 3000mm Length 8

Annealed AMS 4911 Ti6al4v Gr5 Titanium Sheet 3000mm Length 9

Annealed AMS 4911 Ti6al4v Gr5 Titanium Sheet 3000mm Length 10
