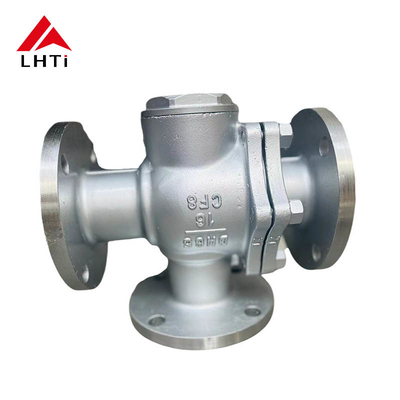

Titanium Three Way Ball Valve ASME16.34 Ti Gr1 Gr2 6 Inch Ball Valve

Titanium Three Way Ball Valve ASME16.34 Ti Gr1 Gr2 6 Inch Ball Valve

Product Introduction:

The ASME B16.34 Three-Way Ball Valve made from TA2 Titanium offers outstanding corrosion resistance, durability, and high performance. This valve is designed for systems requiring efficient flow control, with a focus on versatility and reliability. Available in a 6-inch size, it can be configured in L-type (Q44F) and T-type (Q45F) to cater to different operational needs in industrial systems.

Key Features:

• Titanium Alloy (TA2): The use of TA2 Titanium provides excellent corrosion resistance, making it ideal for aggressive or corrosive environments, such as chemical, marine, and oil & gas industries.
• L-Type and T-Type Designs: These types provide different flow control functionalities:
  • L-Type (Q44F): Primarily used for flow direction switching between two perpendicular channels.
  • T-Type (Q45F): Designed for media distribution, confluence, and flow direction switching between three interconnected channels.
• High Durability: Titanium offers superior strength while being lightweight, ensuring a long service life with minimal maintenance.
• Pressure and Temperature Range: These valves are designed to handle a broad range of pressures and temperatures, suitable for various industrial applications.

L-Type (Q44F) Three-Way Ball Valve

• Functionality: The L-type valve is used for flow direction switching between two perpendicular channels. It is ideal for applications that require diversion or flow switching between two paths.
• Applications:
  • Used in systems that require changing the flow direction between two pipelines or conduits.
  • Commonly applied in chemical or petrochemical systems where media needs to be redirected without complex mixing.

T-Type (Q45F) Three-Way Ball Valve

• Functionality: The T-type valve is designed for more complex flow control, allowing for distribution, confluence, or switching between three interconnected channels. It can connect any two of the three channels or allow for the interconnection of all three channels.
• Applications:
  • Ideal for systems requiring mixing, distribution, or diversion of fluids or gases in a multi-channel configuration.
  • Frequently used in chemical processing, water treatment, or oil & gas systems where flow from three different paths must be managed.

Key Benefits:

1. Corrosion Resistance: The use of TA2 Titanium makes these valves resistant to harsh chemicals, acids, seawater, and other corrosive media, ensuring longevity in challenging environments.
2. High Strength-to-Weight Ratio: Titanium’s lightweight nature coupled with its high strength makes these valves ideal for applications where weight and durability are both critical.
3. Versatile Flow Control: With both L-type and T-type designs, these valves provide flexibility in controlling the direction and distribution of fluid flow in complex systems.
4. Durability: These valves offer exceptional performance in high-pressure, high-temperature, and corrosive environments, reducing the need for frequent replacements.
5. Compliance with ASME B16.34: The valves meet the stringent standards set by ASME B16.34, ensuring high performance and reliability across various industries.

Applications:

• Chemical Processing: Managing the flow of reactive chemicals or acids where corrosion resistance is critical.
• Oil & Gas: Flow control in offshore platforms, pipelines, and refining processes, where both strength and corrosion resistance are required.
• Marine: Managing seawater and other aggressive fluids in marine systems, where corrosion resistance is essential.
• Water Treatment: Distributing and mixing fluids in water treatment plants or desalination systems.

Technical Specifications:

Conclusion:

The ASME B16.34 Three-Way Ball Valve TA2 Titanium is the perfect choice for industries requiring corrosion-resistant, high-strength, and versatile flow control solutions. With options for both L-type and T-type configurations, these valves are ideal for chemical, oil and gas, marine, and water treatment applications. Available in 6-inch size, this valve provides reliable, long-lasting performance for complex flow systems.
