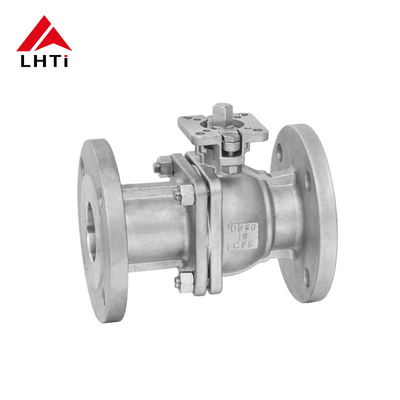

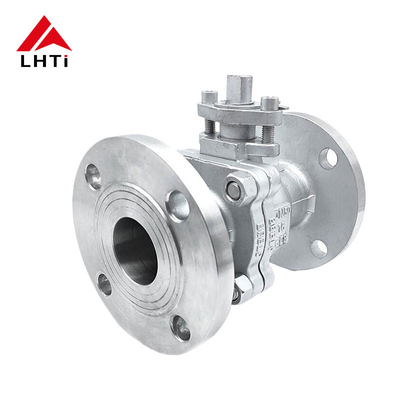

Two Way Ball Valve ASME DN 15 TA2 Titanium Industrial Ball Valve High Pressure Release Valve
Product Introduction:
Special material ball valves encompass a variety of types, including two-way, three-way, and four-way ball valves. These valves come in both soft-seal and hard-seal configurations and are available in floating and trunnion-mounted designs. The materials used for these ball valves are selected for their exceptional performance in demanding environments and include titanium, nickel, zirconium, Hastelloy, Monel, Inconel, duplex stainless steel, 904L, Alloy 20, and C4 steel, among others. These high-performance materials ensure that the valves offer excellent corrosion resistance, mechanical strength, and reliability across a broad range of industrial applications.
Features of Titanium Ball Valve:
The ball of a titanium ball valve is floating. Under the action of medium pressure, the ball can produce a certain displacement and press tightly against the sealing surface of the outlet end to ensure the sealing of the outlet end. The main advantage of the American Standard titanium ball valve is that it utilizes the excellent stability and self-passivation capability of the oxide film formed on titanium metal in highly corrosive environments, allowing it to resist strong corrosion in various harsh working conditions.
Low Flow Resistance: Ball valves have relatively low fluid resistance among all valve types. Even for reduced bore ball valves, the fluid resistance is quite small.
Good Sealing Performance: The sealing performance of American Standard titanium ball valves is excellent. The valve seat (sealing ring) is generally made of elastic materials such as PTFE (polytetrafluoroethylene), which ensures sealing easily. Moreover, the sealing force of the ball valve increases with the pressure of the medium.
Reliable Stem Sealing: The stem of a ball valve only rotates 90° during opening and closing operations, so the packing seal of the stem is not easily damaged. Additionally, the sealing force of the reverse seal of the stem increases with the pressure of the medium.
Product Technical Specifications:
SIZE | d | L | T | F | N | M | G | C | D | H | H1 | H2 | S | W | D1 | M1 | Torque | WT |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | 0.59 | 4.25 | 0.38 | 0.06 | 4 | 0.63 | 1.38 | 2.38 | 3.50 | 3.39 | 2.25 | 0.93 | 0.44 | 6.65 | 1.65 | M5 | 34 | 3.7 |
3/4" | 0.79 | 4.61 | 0.38 | 0.06 | 4 | 0.63 | 1.69 | 2.76 | 3.90 | 3.50 | 2.36 | 0.93 | 0.44 | 6.65 | 1.65 | M5 | 49 | 4.6 |
1" | 0.98 | 5.00 | 0.38 | 0.06 | 4 | 0.63 | 2.01 | 3.11 | 4.25 | 4.06 | 2.89 | 1.14 | 0.50 | 8.09 | 1.97 | M6 | 58 | 6.4 |
1-1/4" | 1.26 | 5.51 | 0.44 | 0.06 | 4 | 0.63 | 2.50 | 3.50 | 4.61 | 4.06 | 3.09 | 1.14 | 0.50 | 8.09 | 1.97 | M6 | 80 | 8.6 |
1-1/2" | 1.50 | 6.50 | 0.50 | 0.06 | 4 | 0.63 | 2.88 | 3.88 | 5.00 | 5.12 | 4.05 | 1.55 | 0.75 | 10.51 | 2.76 | M8 | 222 | 12.6 |
2" | 1.97 | 7.01 | 0.57 | 0.06 | 4 | 0.75 | 3.62 | 4.75 | 5.98 | 5.31 | 4.35 | 1.55 | 0.75 | 10.51 | 2.76 | M8 | 337 | 18.5 |
2-1/2" | 2.56 | 7.48 | 0.63 | 0.06 | 4 | 0.75 | 4.12 | 5.47 | 7.01 | 5.79 | 4.80 | 1.52 | 0.75 | 11.38 | 2.76 | M8 | 399 | 29.3 |
3" | 3.15 | 7.99 | 0.69 | 0.06 | 4 | 0.75 | 5.00 | 5.98 | 7.48 | 6.54 | 5.59 | 1.69 | 0.75 | 15.35 | 4.02 | M10 | 540 | 36.2 |
4" | 3.94 | 9.00 | 0.88 | 0.06 | 8 | 0.75 | 6.19 | 7.50 | 8.98 | 7.13 | 6.18 | 1.69 | 0.75 | 15.35 | 4.02 | M10 | 709 | 61.1 |
6" | 5.91 | 15.51 | 1.00 | 0.06 | 8 | 0.87 | 8.50 | 9.51 | 10.98 | 10.10 | 8.66 | 1.97 | 1.06 | 29.25 | 4.92 | M12 | 1682 | 119.0 |
8" | 7.87 | 17.99 | 1.13 | 0.06 | 8 | 0.89 | 10.63 | 11.75 | 13.50 | 13.15 | 11.83 | 3.37 | 1.42 | 33.07 | 5.51 | M16 | 4160 | 194.0 |
10" | 9.84 | 20.98 | 1.19 | 0.06 | 12 | 1.00 | 12.76 | 14.25 | 15.98 | 14.88 | 13.17 | 2.93 | 1.42 | 40.94 | 5.51 | M16 | 6638 | 359.4 |
Product Technical Specifications: | |
Pressure Rating: | Class 150-600Lb |
Nominal Diameter: | 1/2" - 10" |
Drive Mode: | Handle, Worm Gear, Pneumatic, Hydraulic, Electric |
Body, Bonnet: | TA1,TA2,TA10,Gr2,Gr3 |
Ball: | TA1,TA2,TA10,Gr2,Gr3 |
Stem: | TA1,TA2,TA10,TC4,Gr2,Gr3,Gr5 |
Sealing Ring: | PTFE,RPTFE,PPL,PEEK |
American Standard Titanium Ball Valve Model: | Q41F- 150Lb(Ti),Q41F-300Lb(Ti),Q41F-600Lb(Ti),Q341F-150Lb(Ti),Q341F-300Lb(Ti), Q341F-600Lb(Ti),Q341F-150Lb(A),Q341F-300Lb(A),Q341F-600Lb(A) |
Design Standards: | GB/T12237,API6D,ASME B16.34 |
Face-to-Face Dimensions: | GB/T12221,API6D,ASME B16.10 |
Flange Connections: | HG,GB,JB,API,ANSI,ISO,BS,DIN,NF,JIS |
Testing Standards: | JB/T9092,GB/T13927,API6D,API598 |
Product Design Features:
Applications of Titanium ball valves:
Titanium ball valves have a wide range of applications in various industrial fields, mainly including the following aspects:
Chemical Industry: Due to the excellent corrosion resistance of titanium materials, titanium ball valves are commonly used in chemical production processes that involve handling corrosive media, such as acid and alkali solutions, and oxides.
Petroleum and Natural Gas Industry: Titanium ball valves play a crucial role in the extraction, transportation, and processing of petroleum and natural gas. They are used to control the flow and pressure of fluids, ensuring the safe and stable operation of the system.
Marine Engineering: Titanium ball valves have good seawater corrosion resistance, making them widely used in marine engineering applications, such as fluid control systems in subsea pipelines and offshore platforms.
Aerospace Field: Titanium ball valves are extensively used in aerospace hydraulic systems, fuel systems, etc., due to their lightweight and high-strength characteristics that meet the requirements of aircraft.
Food and Pharmaceutical Industries: Since titanium materials are non-toxic and do not contaminate food or medicine, titanium ball valves are often used in fluid control systems in food processing and pharmaceutical industries.
