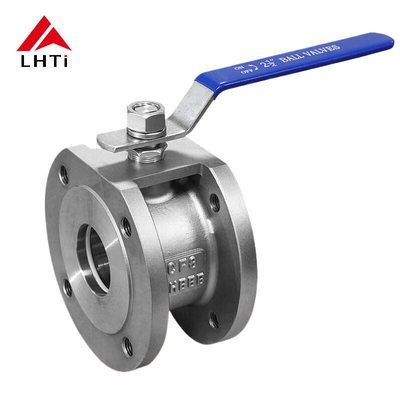

ANSI Titanium Two Piece Ball Valve Gr1 Gr2 Gr5 Ball Valve for Oil and Gas Industry

ANSI Titanium Two-Piece Ball Valve for Oil and Gas Industry – Gr1, Gr2, Gr5

The ANSI Titanium Two-Piece Ball Valve constructed from Gr1, Gr2, and Gr5 Titanium alloys is engineered for demanding oil and gas industry applications. These valves are designed to handle extreme environmental conditions, providing superior strength, outstanding corrosion resistance, and long-lasting performance in applications like oil extraction, refining, and pipeline transportation.

Key Characteristics

1. Titanium Alloys (Gr1, Gr2, Gr5):

   • Gr1 Titanium (Commercially Pure): Offers excellent resistance to corrosion, ideal for environments that experience less mechanical stress but still require robust protection against corrosive substances like sea water and acids.
   • Gr2 Titanium (Commercially Pure): Gr2 provides both strength and corrosion resistance, making it a popular choice in marine, chemical, and oil & gas environments where exposure to aggressive chemicals and high temperatures is frequent.
   • Gr5 Titanium (Ti-6Al-4V): Known for its high strength and fatigue resistance, Gr5 is widely used for heavy-duty applications, making it the ideal material for high-pressure and high-temperature environments found in the oil and gas industry.

2. Two-Piece Construction:

   • The two-piece ball valve design ensures easy installation, maintenance, and servicing. The strong body design provides reliable performance and is capable of withstanding extreme conditions without compromising its durability.
   • This construction allows for efficient access to internal components, which reduces downtime and maintenance costs, especially in critical operations where reliability is key.

3. ANSI Compliance:

   • Designed to meet the stringent standards set by ANSI (American National Standards Institute), these valves ensure high-quality performance and compatibility with other industry-standard equipment, ensuring safety and operational efficiency in high-demand applications.

4. Ball Valve Operation:

   • Featuring a quarter-turn ball valve mechanism, this valve provides a seamless shutoff by rotating the ball inside the valve to block or allow fluid flow. This simple yet effective design minimizes leakage and ensures tight closure, which is crucial in maintaining pipeline integrity.

5. Corrosion Resistance:

   • Titanium’s natural corrosion resistance is a significant advantage in environments where exposure to chemicals, saltwater, and other corrosive substances is prevalent. These valves can withstand even the harshest environments, offering a longer lifespan and reduced need for replacements.

6. Temperature and Pressure Tolerance:

   • With the ability to endure extreme temperatures ranging from -50°C to 300°C and handle high pressures, these titanium ball valves are suitable for challenging applications where conventional materials might fail.

7. Lightweight and Durable:

   • Titanium is not only highly durable but also much lighter than traditional metals such as stainless steel, contributing to lower transport and installation costs. Its lightweight nature is particularly beneficial in offshore and subsea oil extraction applications.

8. Seal Material:

   • Seals made from PTFE or other specialized materials are used to ensure an effective, leak-free performance under high-pressure and high-temperature conditions, while also offering exceptional chemical resistance.

Technical Features

Benefits of Titanium Ball Valves in the Oil and Gas Sector

1. Exceptional Resistance to Corrosion:

   • Titanium alloys, especially Gr1, Gr2, and Gr5, offer unparalleled corrosion resistance in highly corrosive environments, ensuring that the valve remains functional in areas exposed to acids, salts, and chemicals, which are typical in oil and gas extraction and refining.

2. Strength and Weight Efficiency:

   • Gr5 Titanium, being a high-strength alloy, provides a superior strength-to-weight ratio. This ensures the valve can withstand the intense pressure and temperature fluctuations of oil and gas systems while being much lighter than steel counterparts, easing transport and installation, particularly in offshore applications.

3. Durability and Reliability:

   • These titanium valves are built to last. With an ability to resist fatigue, wear, and corrosion, the valves offer extended service life, which is essential in the high-demand environment of the oil and gas industry. Less frequent replacements mean reduced operational costs and less downtime.

4. High Temperature and Pressure Capability:

   • The titanium alloys used in these valves exhibit outstanding resistance to both temperature and pressure extremes, making them suitable for high-pressure pipelines, deepwater operations, and environments with fluctuating temperatures.

5. Minimal Maintenance Requirements:

   • Titanium's natural resistance to wear and corrosion means these valves demand less maintenance, contributing to reduced operational costs. Their two-piece construction allows for easy inspection and servicing, making them ideal for situations that require quick repairs without halting production.

6. Leak-Free Operation:

   • The ball valve design is synonymous with a tight shutoff, preventing any leakage in critical systems. This is particularly important in systems handling hazardous or flammable substances, where containment is essential.

7. Compliance with Global Standards:

   • Manufactured to adhere to ANSI, API, and other international standards, these valves provide assurance of quality, safety, and operational compatibility across the oil and gas industry, ensuring that systems run smoothly without compromising on regulatory requirements.

8. Cost Efficiency in the Long Run:

   • While titanium valves may come at a higher initial cost compared to other materials, their extended durability, minimal maintenance needs, and resistance to corrosion ensure significant cost savings over their lifespan, especially in offshore and extreme operating conditions.

Applications of Titanium Ball Valves

1. Offshore and Onshore Oil Platforms:

   • The robust performance of titanium ball valves is essential in offshore operations where exposure to sea water and highly corrosive substances is constant. These valves are also used in onshore oil extraction facilities for their strength and reliability.

2. Oil and Gas Pipelines:

   • For high-pressure oil and gas pipelines, titanium ball valves ensure tight seals and safe flow regulation, preventing costly leaks and improving system efficiency.

3. Refineries and Petrochemical Plants:

   • Titanium’s corrosion resistance makes it a preferred choice in refining and petrochemical industries, where the valves need to endure constant exposure to chemical agents and high temperatures.

4. Liquefied Natural Gas (LNG) Plants:

   • In LNG facilities, these valves perform under low-temperature conditions, maintaining their integrity in cryogenic environments, where they regulate gas flow without failing under stress.

5. Subsea Exploration:

   • In deep-sea drilling operations, titanium ball valves withstand extreme pressure and saltwater exposure, ensuring safe flow control even in the harshest subsea environments.

Conclusion

The ANSI Titanium Two-Piece Ball Valve made from Gr1, Gr2, and Gr5 titanium alloys offers unparalleled performance in the oil and gas industry. These valves provide outstanding corrosion resistance, high strength, and long-term reliability, ensuring continuous, safe, and efficient operation in extreme environments. The combination of low maintenance needs, lightweight construction, and resilient performance makes these valves an invaluable asset in a range of critical oil and gas applications.
