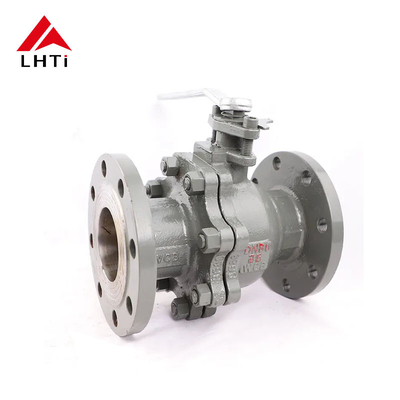

Industrial ASME Gr1 Gr2 Titanium Ball Valves with 99.6% Ti Content and API 6D Testing Standard

ASME Titanium Ball Valves Gr1 Gr2 PN1.6-4.0 MPa NPS 1/2''-12'' Industrial Ball Valves

Titanium ball valves are a popular choice in industrial applications due to their excellent corrosion resistance, high strength, and lightweight properties. Specifically, ASME Titanium Ball Valves Gr1 and Gr2 are ideal for environments where the handling of corrosive fluids, high pressures, and precise control are required. The PN1.6-4.0 MPa pressure rating and NPS 1/2''-12'' sizes make these valves suitable for a wide range of industrial applications, offering flexibility and reliability.

Key Features of ASME Titanium Ball Valves Gr1 and Gr2

1. Material Grades (Gr1 & Gr2)

• Grade 1 Titanium (Gr1): Gr1 is a commercially pure titanium material, offering excellent corrosion resistance in water and air environments. It is particularly effective in environments with moderate exposure to corrosive agents but where extreme strength is not a major concern.

  • Benefits: Excellent corrosion resistance, good formability, lightweight, and cost-effective for less demanding applications.

• Grade 2 Titanium (Gr2): Gr2 is the most widely used titanium grade in industrial applications. It has slightly higher strength than Gr1, making it suitable for applications under medium pressure and harsh environments.

  • Benefits: Higher strength than Gr1, superior corrosion resistance, and better durability under moderate chemical exposure. Ideal for more aggressive environments like seawater or mild acidic/alkaline conditions.

2. Pressure Rating (PN1.6-4.0 MPa)

• The PN1.6-4.0 MPa pressure rating indicates the valve’s ability to handle pressures between 1.6 MPa (16 bar) and 4.0 MPa (40 bar), making it suitable for a wide range of industrial processes that require reliable pressure control.
• PN1.6 (1.6 MPa) is suitable for lower pressure applications like standard fluid transfer, while PN4.0 (4.0 MPa) can handle more demanding, high-pressure environments such as those found in industrial or chemical processing.
• Applications: Water treatment, oil and gas, chemical processing, power generation, and desalination.

3. Nominal Pipe Size (NPS 1/2''-12'')

• The NPS (Nominal Pipe Size) range from 1/2'' to 12'' means these ball valves are available in sizes suitable for various pipe diameters, offering versatility in different flow requirements.
  • 1/2'' and 1'' NPS: Ideal for low to medium flow applications, such as fluid control in small diameter pipes.
  • 2''-4'' NPS: Suitable for medium flow applications, often used in industrial or water treatment processes.
  • 6''-12'' NPS: These larger sizes can handle high flow rates for large-scale industrial applications, such as power plants or large chemical processing facilities.

Advantages of Titanium Ball Valves

1. Superior Corrosion Resistance

• Titanium offers exceptional resistance to corrosion, even in harsh chemical environments like seawater, chlorides, or acidic/alkaline fluids. This makes titanium ball valves a popular choice in industries such as:

  • Chemical Processing
  • Desalination Plants
  • Oil & Gas Industry
  • Water Treatment
  • Power Generation

• Titanium ball valves can last significantly longer than traditional steel or brass valves in these harsh conditions, reducing maintenance costs and downtime.

2. Lightweight Yet Strong

• Titanium's strength-to-weight ratio is very high, making these ball valves ideal for situations where both strength and weight reduction are important. The material is much lighter than stainless steel, making it easier to handle, install, and transport, which is a big advantage in large-scale installations.

3. Longer Service Life

• Durability: Titanium valves exhibit high resistance to wear, ensuring they can perform reliably for extended periods without frequent replacements or repairs. This is especially beneficial in industrial applications that require continuous operation.

4. High Temperature Resistance

• Titanium ball valves can operate in higher temperature environments compared to other materials, providing an edge in applications that involve high heat conditions, such as steam systems or industrial fluid transfer processes.

5. Leakproof and Secure Sealing

• Titanium ball valves provide reliable and leakproof sealing, which is essential in industrial applications where even small leaks can lead to system failures or safety concerns. The ball valve design allows for smooth and consistent flow control without compromising sealing integrity.

Applications of ASME Titanium Ball Valves

1. Water Treatment Systems

• In water treatment facilities, titanium ball valves are used for controlling the flow of treated water, chemicals, and gases. The corrosion resistance of titanium ensures long-term performance even in harsh, chemically treated water systems.

2. Desalination Plants

• Titanium is highly resistant to seawater and saline environments, making it an ideal choice for desalination plants where corrosion resistance is critical for the longevity of equipment and minimizing downtime.

3. Chemical Processing

• The chemical industry frequently uses titanium valves to manage the flow of corrosive chemicals and fluids. The high strength of Gr2 titanium can withstand the pressures and chemical exposure in such systems, ensuring safety and reliability.

4. Oil & Gas Industry

• In offshore and onshore oil and gas production, titanium valves are used in applications such as oil extraction, transport pipelines, and refining processes, where they provide reliable flow control and minimize the risk of failure due to corrosive substances or high pressure.

5. Power Generation

• Titanium valves are employed in power plants for fluid and steam control due to their high-temperature resistance and corrosion resistance in harsh operating environments.

6. Industrial Fluid Transfer

• Industrial applications that involve the transfer of aggressive fluids or gasses at high pressures often use titanium valves for secure, efficient, and long-lasting flow regulation.

Specifications for ASME Titanium Ball Valves Gr1 and Gr2

Conclusion

The ASME Titanium Ball Valves Gr1 and Gr2 PN1.6-4.0 MPa NPS 1/2''-12'' are designed for high-performance, corrosion-resistant solutions across a wide range of industries. With their excellent sealing capabilities, superior corrosion resistance, and ability to handle high pressures and aggressive chemicals, these titanium ball valves are an ideal choice for industrial applications such as chemical processing, oil and gas, desalination, and water treatment.

By choosing titanium ball valves, industries can ensure reliable, long-lasting, and cost-effective solutions for flow control in even the most challenging environments.
