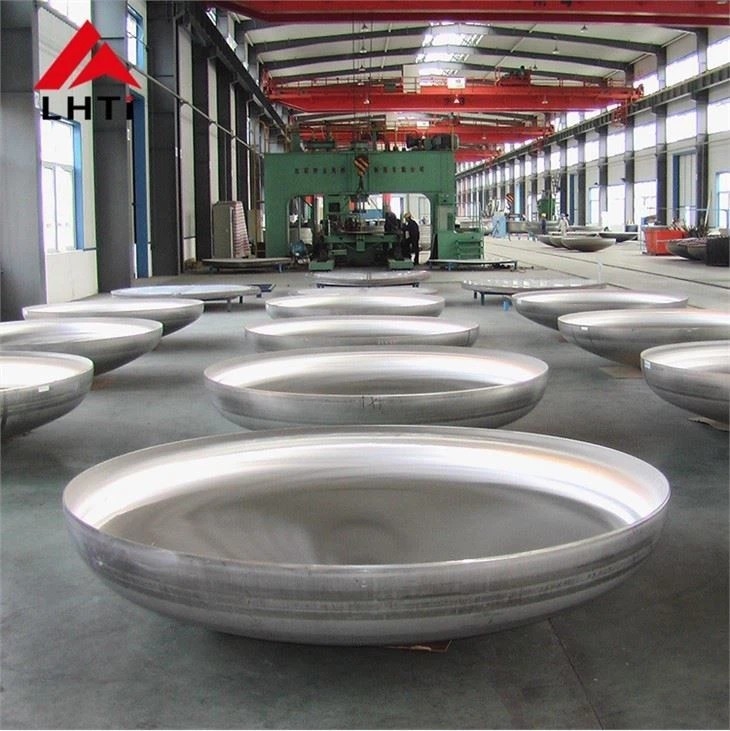

Titanium Equpiment Gr1 Gr2 Titanium Hemispherical Head Dish Shaped Titanium Head Equipment

Titanium Equpiment Gr1 Gr2 Titanium Hemispherical Head Dish Shaped Titanium Head Equipment

The dish head (or end cap) is a key component used in pressure vessels, reactors, boilers, storage tanks, and similar equipment. It is designed to close the ends of cylindrical containers, isolating the internal media from the external environment. Dish heads are crucial for maintaining the structural integrity and safety of these vessels by withstanding internal pressure and external forces.

Types of Dish Heads

Dish heads come in various shapes, each chosen based on specific application requirements. Here are the common types:

1. Hemispherical Heads:

   • Shape: A perfect half-sphere, the hemispherical head provides optimal stress distribution and is considered the most efficient head shape in terms of material usage under internal pressure.
   • Usage: Common in high-pressure applications like reactors, pressure vessels, and boilers.

2. Elliptical Dish Heads:

   • Shape: This is a head with an elliptical curvature. It offers a balance between strength and material usage and is often used in applications requiring moderate pressure resistance.
   • Usage: Suitable for medium-pressure storage tanks, heat exchangers, and reactors.

3. Convex Heads:

   • Shape: Convex heads have a rounded, outward-facing curvature. Common examples are spherical heads, oval heads, and disc-shaped heads.
   • Usage: These heads are often used in gas cylinders, boilers, chemical reactors, and similar pressure vessels, where the convex design can help distribute internal pressure efficiently.

4. Spherical Crown Heads:

   • Shape: The spherical crown is part of a sphere and is typically used to minimize material use while providing optimal strength.
   • Usage: This type is preferred for high-pressure systems where minimal thickness and efficient stress distribution are essential.

5. Conical Heads:

   • Shape: A conical head has a cone-like shape that is typically used in applications requiring a gradual transition between the vessel’s cylindrical part and the container's dome.
   • Usage: Common in separation equipment, heat exchangers, and boilers.

6. Flat Heads:

   • Shape: These heads are flat in shape, generally used in low-pressure applications where the vessel does not need to withstand significant internal pressure.
   • Usage: Used in storage tanks, piping systems, and certain heat exchangers.

Welding Types for Dish Heads

Dish heads are typically welded to the cylindrical body of a pressure vessel, and depending on the design, there are two common types of welding methods:

1. Butt Welding:

   • This is where the edges of the dish head and the cylindrical body are aligned and welded along their circumference. It ensures a smooth, flush connection that can withstand high internal pressures.

2. Socket Welding:

   • In this type, the head is fitted into a socket on the end of the cylinder, and the connection is made by welding the outer circumference of the socket. This method is more commonly used for smaller diameter vessels or low-pressure systems.

Applications of Dish Heads

Dish heads are used in various industries and applications that require pressure containment or separation of internal and external media:

• Storage Tanks:
  Used to seal the ends of tanks storing liquids, gases, or chemicals under pressure.

• Heat Exchangers:
  Found in systems that transfer heat between fluids, the heads help close off the ends of heat exchangers while maintaining pressure integrity.

• Boilers:
  In steam boilers, dish heads ensure that the pressure and heat are contained within the system.

• Reactors:
  Used in chemical reactors, nuclear reactors, and other reaction vessels, where pressure and safety are critical.

• Separation Equipment:
  Found in filtration and separation systems where the containment of liquids and gases is necessary under pressure.

• Gas Cylinders:
  Convex heads are often used in the manufacture of gas cylinders, which store gases under pressure.

Advantages of Dish Heads

• Strength and Efficiency:
  Convex heads (especially hemispherical) are highly efficient in terms of strength-to-weight ratio. They distribute internal stress evenly, reducing the likelihood of failure and allowing for thinner materials to be used, which can reduce costs.

• Safety:
  The design of dish heads is critical in ensuring that the internal pressure of a vessel is contained safely, preventing dangerous leaks or ruptures.

• Versatility:
  Dish heads come in a variety of shapes and sizes to meet the needs of different industries and applications, making them versatile components in pressure vessel design.

• Customization:
  Dish heads can be custom-designed to suit specific operational conditions such as temperature, pressure, and the type of media inside the container. This makes them adaptable to highly specialized applications.

Chemical composition

Mechanical Property
