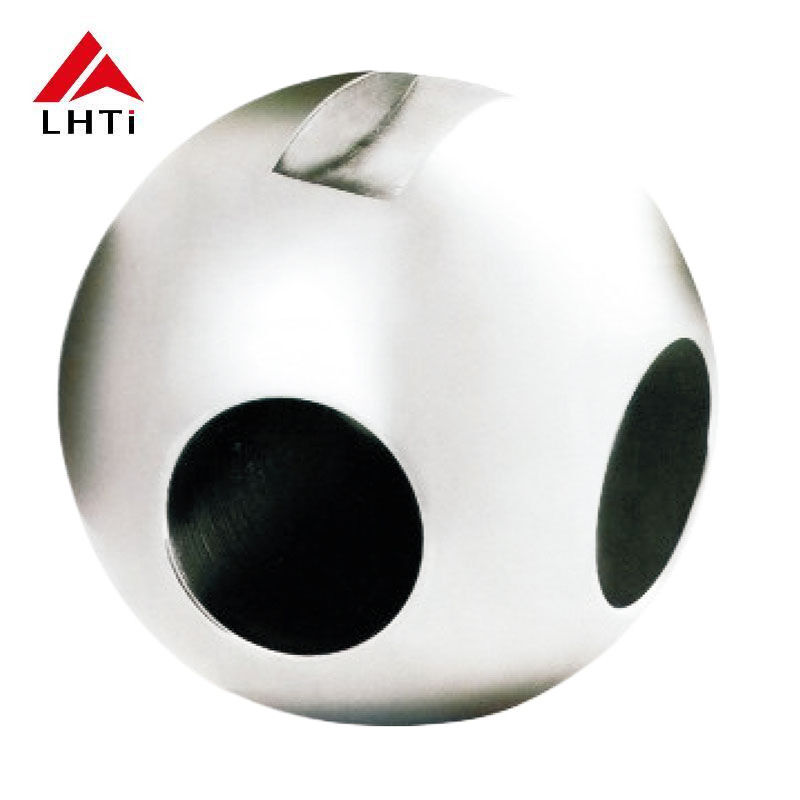

Titanium Balls High-Strength Gr5 Gr9 Titanium Ball Titanium 12mm Ball for Industrial Applications

Introduction of Titanium Balls:

Titanium balls are spherical metallic components made primarily from titanium or titanium alloys. They are precision-engineered to exacting standards and find application in a wide range of industries due to titanium's unique properties.

Titanium Ball Grade 5, also known as Ti-6Al-4V (Titanium 6 Aluminum 4 Vanadium), is one of the most widely used titanium alloys. It is known for its excellent combination of strength, lightness, and corrosion resistance, which makes it ideal for a variety of demanding applications. When made into balls, it retains these properties while also offering additional benefits in precision applications, such as in ball bearings, valve seats, and other mechanical components.

Key Properties of Titanium Ball Grade 5 (Ti-6Al-4V):

1. Composition:

   • Titanium (Ti): 90%
   • Aluminum (Al): 6%
   • Vanadium (V): 4%

   This specific alloy composition gives Grade 5 titanium its unique properties, combining the lightweight nature of titanium with the added strength from aluminum and vanadium.

2. High Strength:
   Grade 5 titanium balls have an impressive strength-to-weight ratio. The alloy is much stronger than pure titanium, offering tensile strength around 900 MPa (130,000 psi), making it suitable for high-stress applications like aerospace or industrial equipment.

3. Lightweight: Titanium is much lighter than steel or other metals, so titanium Grade 5 balls are ideal when weight is a crucial factor, such as in aerospace or high-performance machinery.

4. Corrosion Resistance:
   Like other titanium alloys, Grade 5 titanium is highly resistant to corrosion, even in harsh environments, such as seawater, acids, and many chemicals. This makes titanium Grade 5 balls suitable for marine, medical, and chemical processing applications.

5. Biocompatibility:
   Titanium is biocompatible, meaning it is non-toxic and not harmful to the human body. Grade 5 titanium is often used in medical applications, such as implants and prosthetics, where it is in direct contact with biological tissues.

6. Heat Resistance:
   Grade 5 titanium can withstand elevated temperatures (up to 600°C or 1100°F) without losing its strength or integrity. This is especially important for aerospace applications, where components are subject to high heat.

7. Wear Resistance:
   The hardness of Grade 5 titanium provides excellent wear resistance, which is essential for components that experience frequent movement or friction, such as bearings and valve seats.

8. Non-Magnetic: Titanium is inherently non-magnetic, which can be an important property in certain precision applications, such as medical devices or electronic components.

The Differences between Grade 2 and Grade 5:

Grade 2 and Grade 5 titanium are two distinct alloys with different compositions and properties, suited for different applications based on their specific strengths and characteristics:

Grade 2 Titanium:

Composition:

Grade 2 titanium is unalloyed and consists primarily of titanium (about 99.2%), with trace amounts of other elements such as oxygen, nitrogen, carbon, and iron.

Properties:

Strength: Grade 2 titanium offers moderate strength, comparable to low alloy steels. It is relatively softer and more ductile compared to Grade 5.

Corrosion Resistance: Excellent corrosion resistance in oxidizing and mildly reducing environments, similar to other titanium alloys.

Weldability: Grade 2 titanium is easily weldable and formable, making it suitable for a wide range of applications where ease of fabrication is important.

Applications: Commonly used in industrial applications such as chemical processing, marine environments, and medical implants where its corrosion resistance and biocompatibility are beneficial.

Product Specifications:

Grade 5 Titanium (Ti-6Al-4V):

Composition:

Grade 5 titanium is an alloy composed of titanium (about 90%), aluminum (6%), and vanadium (4%). Sometimes small amounts of iron and oxygen are also present.

Properties:

Strength: Grade 5 titanium is significantly stronger than Grade 2, with higher tensile and yield strength. It has excellent strength-to-weight ratio, making it ideal for aerospace and high-performance applications.

Corrosion Resistance: Similar to Grade 2, Grade 5 titanium exhibits excellent corrosion resistance, especially in marine and chemical environments.

Heat Resistance: Grade 5 titanium has good heat resistance properties, allowing it to maintain its mechanical properties at elevated temperatures.

Applications: Widely used in aerospace components, such as aircraft structures, engine components, and critical parts where high strength, low weight, and resistance to fatigue are essential.

Key Differences:

Strength: Grade 5 titanium (Ti-6Al-4V) is stronger and more durable than Grade 2 titanium, making it suitable for applications requiring higher mechanical properties.

Alloy Composition: Grade 5 contains alloying elements (aluminum and vanadium) that enhance its strength and heat resistance, whereas Grade 2 is a pure titanium grade.

Applications: Grade 2 is used in general industrial, chemical, and medical applications where corrosion resistance and formability are prioritized. Grade 5 is favored in aerospace, marine, and high-performance engineering applications where strength and weight reduction are critical.

Applications of Titanium Balls:

Aerospace

Components: Used in valves, connectors, and gyroscopes due to their lightweight nature and high strength-to-weight ratio.

Benefits: Contribute to fuel efficiency and safety in aircraft by reducing overall weight without compromising structural integrity.

Medical Technology

Implants: Titanium balls are utilized in medical implants like hip and knee replacements.

Biocompatibility: Ensures compatibility with the human body, minimizing the risk of rejection or adverse reactions.

Chemical Processing

Corrosion Resistance: Essential in equipment handling corrosive chemicals and acids.

Longevity: Maintain operational integrity and durability in harsh chemical environments.

Sports Equipment

Performance Enhancement: Used in golf clubs and bicycle frames to improve performance through lightweight construction.

Precision Machinery

Bearings and Instruments: Employed in precision machinery for bearings and measurement instruments.

Reliability: Ensures accuracy and reliability due to their high strength and durability.

Packing Information for Titanium Balls:

Our titanium balls are carefully packed to ensure safe transportation and handling. Depending on the quantity and size of the balls, we use the following packaging methods:

Wooden Crate:

Usage: Primarily used for larger quantities and sizes of titanium balls.

Advantages: Provides excellent protection against impacts and ensures the balls remain secure during transit.

Carton:

Usage: Employed for smaller quantities or smaller sizes of titanium balls.

Advantages: Offers sufficient protection while being convenient for handling and storage.

Custom Packaging:

Usage: Tailored packaging solutions available upon request for specialized shipping needs or specific customer requirements.

Advantages: Ensures adherence to unique packaging specifications and enhances overall product safety.

Future Trends in Smart Water Management:

Looking ahead, the role of automated titanium ball valves in smart water management systems is poised to expand significantly. As cities and industries increasingly adopt Internet of Things (IoT) technologies, the integration of advanced sensors and analytics will enable even greater levels of automation and optimization. These developments will allow for more precise control over water distribution and management, further enhancing sustainability efforts.

Moreover, advancements in materials science may lead to the development of new titanium alloys with improved performance characteristics, such as enhanced resistance to wear and higher thermal stability. These innovations will likely increase the applicability of titanium ball valves in even more demanding environments, further broadening their use in smart water management applications.

Sustainability will continue to be a driving force in the evolution of water management systems. As global water scarcity issues become more pressing, the need for efficient, reliable, and environmentally friendly solutions will intensify. Automated titanium ball valves, with their long lifespan and minimal maintenance requirements, will play a crucial role in supporting sustainable practices across various sectors.

Applications of Titanium Balls:

Aerospace: Used in aerospace components requiring lightweight materials with high strength and corrosion resistance, such as bearings and valves.

Medical: Utilized in medical devices and implants due to biocompatibility and inertness within the body.

Precision Instruments: Applied in precision instruments and measurement tools where dimensional accuracy and resistance to wear are critical.

Chemical Processing: Used in valves, pumps, and handling equipment for its resistance to corrosive chemicals.

Automotive: Employed in automotive applications where lightweight materials can enhance fuel efficiency and performance.

Manufacturing Process: Titanium balls are typically manufactured through precision machining or forging processes to achieve the desired size and surface finish. Quality control measures ensure that each ball meets stringent specifications for roundness, surface smoothness, and dimensional accuracy.
