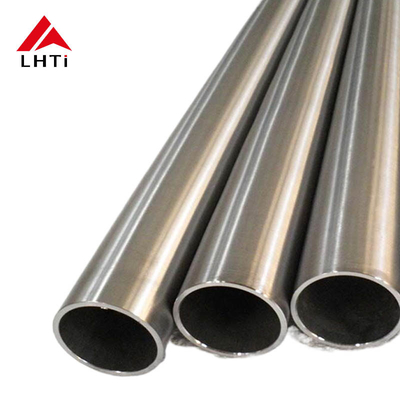

ASTMB338 Ti Grade 7 Pure Titanium Tube Titanium Seamless Tube For Aggressive Chemical Industry Uses

Introduction to ASTM B338 Titanium Tube:

ASTM B338 is a standard specification that outlines the requirements for seamless and welded titanium tubes used in various industrial applications. This specification is crucial for ensuring that titanium tubes meet specific mechanical properties, dimensions, and chemical compositions necessary for demanding environments. The unique characteristics of titanium, such as its excellent corrosion resistance and high strength-to-weight ratio, make it an ideal choice for industries like aerospace, chemical processing, and marine applications. By adhering to ASTM B338, manufacturers can guarantee that their titanium tubes perform reliably under challenging conditions.

Grade 7 titanium, or Ti-0.2Pd, is indeed a notable titanium alloy. The addition of palladium significantly improves its corrosion resistance, especially in acidic environments, which is crucial for many industrial applications.

Key characteristics of Grade 7 titanium pipes include:

1. Strength and Durability: These pipes maintain high strength while being lightweight, making them ideal for applications where both strength and weight are critical.

2. Corrosion Resistance: The presence of palladium enhances resistance to corrosion, particularly against harsh chemicals, which is beneficial in industries like chemical processing and marine engineering.

3. Versatility: Its unique properties make it suitable for various sectors, including aerospace, where reliability and performance under extreme conditions are essential.

4. Fabrication: Grade 7 titanium can be easily fabricated and welded, adding to its appeal in manufacturing processes.

Overall, Grade 7 titanium is a preferred choice for applications requiring a combination of strength, lightness, and corrosion resistance.

ASTM B338 is a standard specification that covers seamless and welded titanium tubes and pipes for various applications, particularly in the aerospace, chemical processing, and marine industries. Here’s a concise introduction to ASTM B338 titanium tubes:

Overview of ASTM B338

1. Scope:

   • ASTM B338 specifies requirements for titanium tubes in various grades, including commercially pure titanium and titanium alloys. The tubes can be either seamless or welded, and they are designed for use in high-performance environments.

2. Material Grades:

   • Common grades include CP (Commercially Pure) titanium grades (Grade 1 to Grade 4) and alloyed grades (e.g., Grade 5, Ti-6Al-4V). Each grade offers different properties, such as strength, ductility, and corrosion resistance.

3. Applications:

   • The specification is primarily used in industries that require high strength-to-weight ratios and excellent corrosion resistance, such as aerospace, chemical processing, marine engineering, and medical applications.

4. Manufacturing Processes:

   • The tubes are produced through processes like hot working, cold working, and heat treatment to meet specific mechanical properties and dimensions. They may also undergo inspections for quality assurance.

5. Standards and Testing:

   • ASTM B338 outlines requirements for testing mechanical properties, corrosion resistance, and dimensions, ensuring that the tubes meet industry standards for performance and safety.

6. Specifications:

   • The standard provides detailed requirements for tube dimensions, wall thicknesses, tolerances, and surface finishes, ensuring that they meet the rigorous demands of their intended applications.

Benefits of ASTM B338 Titanium Tubes

• Corrosion Resistance: Excellent resistance to a wide range of corrosive environments, including seawater and acidic conditions.
• Lightweight: Lower density compared to steel, making them suitable for applications where weight savings are critical.
• Strength: High tensile strength and fatigue resistance, ideal for demanding applications.
• Biocompatibility: Suitable for medical applications, as they do not react adversely with bodily tissues.

Key Properties of ASTM B338 Titanium Tubes:

Key Properties of Grade 7 Titanium Tube

Manufacturing Processes for ASTM B338 Titanium Tubes:

The production of ASTM B338 titanium tubes involves sophisticated manufacturing techniques to ensure high quality and precision. The process begins with the selection of high-grade titanium billets, which are then heated and pierced to form a hollow tube. This initial step is followed by elongation processes, such as rotary piercing or extrusion, which create seamless tubes with uniform wall thickness. The seamless design eliminates potential weaknesses associated with welded joints, enhancing overall durability and reliability.

After forming, the titanium tubes undergo various heat treatment processes to optimize their mechanical properties. These treatments can include solution annealing and aging, which improve the strength and toughness of the material. Rigorous quality control measures, including non-destructive testing (NDT), are implemented to detect any flaws or defects in the tubes. This attention to detail during the manufacturing process ensures that ASTM B338 titanium tubes meet stringent industry standards.

Applications of Grade 7 Titanium Pipe

Grade 7 titanium tubes (Ti-0.2Pd) are utilized across various industries due to their excellent corrosion resistance, strength, and lightweight properties. Here are some key applications:

1. Chemical Processing

• Used in piping and equipment for handling corrosive substances, such as acids and chlorides. Their resistance to corrosion makes them ideal for reactors, heat exchangers, and storage tanks.

2. Aerospace

• Employed in aircraft components, such as fuel lines and structural parts, where strength-to-weight ratio is critical. Their durability and lightweight nature contribute to fuel efficiency and performance.

3. Marine Engineering

• Ideal for components exposed to seawater and harsh marine environments, including shipbuilding and offshore oil rigs. Their corrosion resistance ensures longevity and reliability.

4. Medical Applications

• Utilized in medical devices and implants, such as surgical instruments and prosthetics, due to their biocompatibility and resistance to bodily fluids.

5. Power Generation

• Used in nuclear power plants for components that require resistance to corrosive cooling fluids, as well as in fossil fuel plants for heat exchangers and piping systems.

6. Pharmaceuticals

• Employed in manufacturing processes where sterile conditions and resistance to corrosive agents are required, ensuring product purity and safety.

7. Oil and Gas

• Used in drilling and production equipment, where resistance to aggressive environments is necessary. Applications include flow lines and subsea components.

8. Food Processing

• Ideal for equipment in food and beverage industries due to its non-reactive properties and ease of cleaning, ensuring hygiene and safety in food production.

Advantages of Using ASTM B338 Titanium Tubes

Conclusion

In conclusion, Grade 7 titanium pipes represent a vital component in many industrial applications due to their unique properties and advantages. Their exceptional corrosion resistance, lightweight nature, and high strength make them suitable for demanding environments in aerospace, chemical processing, and marine industries. The sophisticated manufacturing processes and stringent quality controls ensure that these pipes meet the highest standards of performance and reliability. As industries continue to seek innovative solutions, Grade 7 titanium pipes will remain at the forefront, offering durability and efficiency that align with modern operational needs. Embracing these advanced materials will not only enhance productivity but also contribute to a more sustainable future in engineering and manufacturing.
