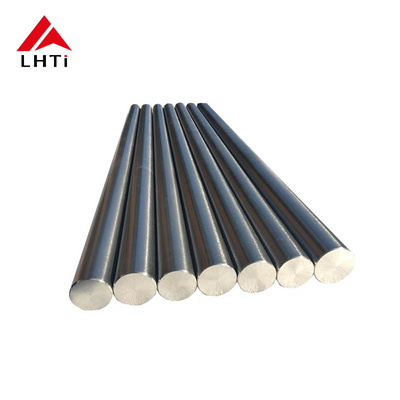

High Quality Gr1 Gr2 Titanium Rod Titanium Round Bar Ti Grade 1 Grade 2 For Medical Uses

Product Details

Place of Origin: Baoji, Shaanxi, China

Brand Name: LHTi

Certification: ISO9001, CE, API,etc

Model Number: Titanium Bar

Payment & Shipping Terms

Minimum Order Quantity: 100 pieces

Price: negotiable

Packaging Details: Carton, Plywood case, as per your requirement

Delivery Time: about 20-45 days for delivery

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 100-200 Ton/Tons Per Month

Get Best Price
Highlight:
Length:
Customizable
Heat Resistance:
High
Thickness:
0.5---10mm
Processing:
Forging Rolling Annealing
Advantage:
Corrosion Resistance
Application:
Industrial And Medical
Purity:
99.5%min
Material Grade:
Grade 7 (Ti-0.2Pd)
Key Words:
ASTM B338 Titanium Tube
Service:
OEM, ODM
Size:
Customizable
Condition:
Anealed(M)
Connection:
Welding
Shape:
Rod
Standrad:
ASTM B861/B338
Length:
Customizable
Heat Resistance:
High
Thickness:
0.5---10mm
Processing:
Forging Rolling Annealing
Advantage:
Corrosion Resistance
Application:
Industrial And Medical
Purity:
99.5%min
Material Grade:
Grade 7 (Ti-0.2Pd)
Key Words:
ASTM B338 Titanium Tube
Service:
OEM, ODM
Size:
Customizable
Condition:
Anealed(M)
Connection:
Welding
Shape:
Rod
Standrad:
ASTM B861/B338
High Quality Gr1 Gr2 Titanium Rod Titanium Round Bar Ti Grade 1 Grade 2 For Medical Uses

High Quality Gr1 Gr2 Titanium Rod Titanium Round Bar Ti Grade 1 Grade 2 For Medical Uses

GR1 Titanium is a commercially pure titanium grade, known for its excellent corrosion resistance, high strength-to-weight ratio, and outstanding biocompatibility. It is commonly used in a variety of applications ranging from aerospace and medical to industrial and consumer products.

1. What is GR1 Titanium?

  • Titanium Grade 1 (GR1) is the purest form of titanium, containing approximately 99% titanium with very low amounts of other elements, such as iron and oxygen. It is often referred to as "commercially pure" titanium.
  • The material is characterized by its high ductility, excellent corrosion resistance, and good weldability.
Name Titanium Bar
Standard ASTM B348
Grade Commercially Pure Grade 5
Diameter 3.0mm-200mm
Length 500mm-6000mm
Tolerance h6,h7,h8,h9
Technique Forging ,Machining
Surface acid surface or polishing, sand blasted surface
Shape Round, flat, square, hexagonal,hollow
Application Oil.Medical,Chemical industrial etc

2. Properties of GR1 Titanium

  • Corrosion Resistance: One of the primary advantages of titanium is its resistance to corrosion, especially in harsh environments such as seawater, chlorides, and acidic conditions. GR1 is particularly well-suited for applications requiring resistance to chemicals and harsh weather conditions.
  • Strength-to-Weight Ratio: Titanium is both lightweight and strong, making it ideal for applications where minimizing weight while maintaining strength is important.
  • Ductility: GR1 is known for its excellent formability and ductility, which allows it to be easily shaped into rods, plates, sheets, and other forms.
  • Biocompatibility: Due to its non-reactive nature, GR1 titanium is often used in medical implants and devices, such as bone plates, screws, and dental implants.

Chemical Composition

Titanium Bar
Grade Ti Al V Nb Fe, max C, max N, max H, max O, max
Gr1 Bal / /   0.20 0.08 0.03 0.015 0.18
Gr2 Bal / /   0.30 0.08 0.03 0.015 0.25
Gr3 Bal / /   0.30 0.08 0.05 0.015 0.35
Gr4 Bal / /   0.50 0.08 0.05 0.015 0.40
Gr5 ELI
Ti-6Al-4VELI
Bal 5.5~6.5 3.5~4.5   0.25 0.08 0.05 0.012 0.13
Ti-6Al-7Nb Bal 5.5-6.5 / 6.5-7.5 0.25 0.08 0.08 0.009

0.20


3. Applications of GR1 Titanium Rod

  • Aerospace: Used in aircraft components, especially in environments where high corrosion resistance and low weight are essential.
  • Medical Devices: GR1 titanium is frequently used in medical implants, such as orthopedic devices, dental implants, and surgical instruments, due to its excellent biocompatibility.
  • Chemical and Marine Industries: Given its corrosion resistance, it is used in marine and chemical processing equipment, including heat exchangers, tanks, and pipes.
  • Sports Equipment: Titanium rods are also used in high-performance sports equipment, such as golf clubs and bicycle frames, where strength and light weight are desired.

High Quality Gr1 Gr2 Titanium Rod Titanium Round Bar Ti Grade 1 Grade 2 For Medical Uses 0

4. Advantages of GR1 Titanium Rod

  • Lightweight: Titanium is about 40% lighter than steel, making it advantageous for industries where weight is a critical factor.
  • Durable: The material exhibits high tensile strength and resistance to deformation, adding to its longevity in demanding applications.
  • Non-reactive: GR1 titanium is chemically stable and will not corrode or react in most environments.
  • Easy to Fabricate: GR1 titanium is easier to form into rods, tubes, and other shapes compared to higher-grade titanium alloys.

5. Limitations of GR1 Titanium

  • Strength Limitations: While GR1 has good strength, it is not as strong as titanium alloys like GR5 or GR23. For applications that require high tensile strength, other grades of titanium might be more suitable.
  • Cost: Titanium, including GR1, can be more expensive than other metals like steel or aluminum. This can be a consideration for cost-sensitive projects.
