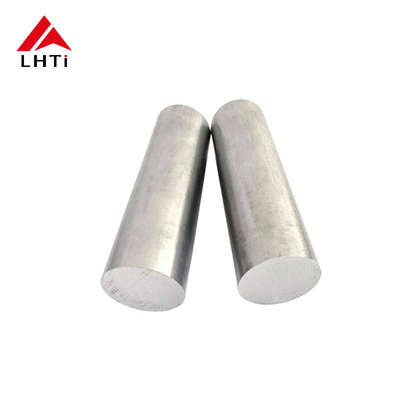

ASTM B265 Grade 2 Grade 5 Gr2 Gr5 Titanium Bars Titanium Round Bar Ensuring Structural Integrity For Medical Applications

ASTM B265 Grade 2 Grade 5 Gr2 Gr5 Titanium Bars Titanium Round Bar Ensuring Structural Integrity For Medical Applications

Introduction to Titanium Rod:

Medical titanium bars, particularly those manufactured in ASTM Grade 5, represent a significant advancement in the field of medical materials. This grade, also known as Ti-6Al-4V, is an alloy composed of 90% titanium, 6% aluminum, and 4% vanadium, making it one of the most commonly used titanium alloys in medical applications. Its exceptional properties make it an ideal choice for manufacturing a wide range of medical devices, prostheses, artificial organs, and auxiliary treatment devices that are implanted in the human body.

One of the key advantages of ASTM Grade 5 titanium alloys is their high specific strength. This characteristic allows for the creation of implants that are not only lightweight but also strong enough to withstand the stresses encountered in the human body. The mechanical properties of these alloys closely mimic those of human bone, which is crucial for ensuring the proper integration and functionality of implants. This similarity helps in reducing the risk of complications such as stress shielding, where the difference in stiffness between the implant and surrounding bone can lead to bone resorption and implant failure.

In addition to their mechanical advantages, ASTM Grade 5 titanium alloys exhibit excellent fatigue resistance. This property is vital for devices that will experience repeated loading and unloading, such as joint replacements and dental implants. The fatigue resistance of titanium ensures that these devices maintain their integrity over time, even under strenuous conditions.

Corrosion resistance is another remarkable feature of titanium alloys. The human body is a complex environment filled with various fluids and biological substances that can cause the degradation of materials. However, titanium forms a protective oxide layer that significantly enhances its resistance to corrosion. This characteristic is particularly important for implants that must remain in the body for extended periods, as it helps ensure long-term durability and reliability.

Furthermore, the biocompatibility of ASTM Grade 5 titanium alloys is a crucial factor in their use in medical applications. These alloys do not induce adverse reactions when in contact with human tissue, making them safe for implantation. This biocompatibility is supported by extensive research and clinical studies, confirming that titanium implants integrate well with bone and other tissues.

Summary Table of Specifications:

Advantages of Titanium Rods:

Titanium rods offer numerous advantages over traditional materials like steel and aluminum. Here are some key benefits:
Biocompatibility: One of titanium's standout properties is its biocompatibility. It is non-toxic and does not induce adverse reactions in the human body, making it a preferred material for medical implants, dental devices, and prosthetics. Its use in healthcare continues to expand, driven by its safety and effectiveness.
Non-magnetic: Titanium is inherently non-magnetic, making it an ideal choice for applications in medical equipment, such as MRI machines, where magnetic interference could disrupt functionality. This property is crucial in ensuring the safety and accuracy of medical imaging.
Strength: Titanium boasts a very high strength-to-weight ratio, meaning it is stronger than steel while remaining significantly lighter. This property is particularly beneficial in applications where reducing weight is critical, such as in aerospace and automotive industries.
Corrosion Resistance: The natural oxide layer on titanium provides exceptional resistance to corrosion. This feature enables titanium to perform reliably in harsh environments, including marine and chemical applications, where other materials might degrade quickly.
Durability: Titanium is highly resistant to wear and tear, significantly outlasting many other materials. This durability translates to lower maintenance costs and longer service life in various applications, from industrial machinery to consumer goods.
Aesthetics: Titanium has a unique and attractive appearance that makes it popular in jewelry and decorative applications. Its lustrous finish and ability to take on vibrant colors through anodization have made titanium a fashionable choice for high-end accessories.

Differences Between Grade 5 and Grade 9 Titanium

Grade 5 (Ti-6Al-4V) and Grade 9 (Ti-3Al-2.5V) are both titanium alloys, but they differ in terms of their composition, properties, and typical applications. Below is a detailed comparison of the two:

1. Composition

• Grade 5 (Ti-6Al-4V):

  • Alloy Composition: 90% Titanium (Ti), 6% Aluminum (Al), 4% Vanadium (V).
  • Grade 5 is one of the most widely used titanium alloys due to its high strength and versatility.

• Grade 9 (Ti-3Al-2.5V):

  • Alloy Composition: 94.5% Titanium (Ti), 3% Aluminum (Al), 2.5% Vanadium (V).
  • Grade 9 has a lower percentage of aluminum and vanadium compared to Grade 5, resulting in different mechanical properties and applications.

2. Strength and Durability

• Grade 5 (Ti-6Al-4V):

  • Tensile Strength: Approximately 895-1,200 MPa.
  • Yield Strength: Around 830 MPa.
  • Grade 5 is one of the strongest titanium alloys, known for its high strength-to-weight ratio.
  • Fatigue Strength: Excellent fatigue resistance, making it ideal for high-stress applications.

• Grade 9 (Ti-3Al-2.5V):

  • Tensile Strength: Around 620-900 MPa.
  • Yield Strength: Typically around 550 MPa.
  • While still strong, Grade 9 is generally weaker than Grade 5, with a lower tensile and yield strength.
  • Fatigue Resistance: Not as high as Grade 5, but still sufficient for medium-strength applications.

3. Weight and Density

• Grade 5:

  • Density: Approximately 4.43 g/cm³.
  • Grade 5 is relatively dense compared to Grade 9 due to its higher aluminum and vanadium content.

• Grade 9:

  • Density: Approximately 4.48 g/cm³.
  • The density is slightly higher than Grade 5 due to the lower aluminum content, but the difference is minimal.

4. Corrosion Resistance

• Grade 5:

  • Offers good corrosion resistance in a variety of environments, including seawater and oxidizing acids, but it is generally not as resistant to corrosion as pure titanium or some lower-alloyed grades.

• Grade 9:

  • Grade 9 titanium also offers excellent corrosion resistance, particularly in chloride-rich environments, and is often used in marine applications.
  • While it may have slightly better corrosion resistance than Grade 5 in some cases due to its lower content of alloying elements, the difference is not significant.

5. Weldability and Formability

• Grade 5 (Ti-6Al-4V):

  • Weldability: Good, but requires careful control of the welding process due to its high strength. Specialized welding techniques like TIG (tungsten inert gas) are often used to avoid degradation of mechanical properties.
  • Formability: Grade 5 is harder to form compared to Grade 9 due to its higher strength. It is more difficult to machine, cut, or shape.

• Grade 9 (Ti-3Al-2.5V):

  • Weldability: Excellent weldability. Grade 9 titanium is easier to weld compared to Grade 5, and its lower strength makes it more forgiving during welding.
  • Formability: Grade 9 is easier to form and machine due to its lower strength. It is often used in applications where complex shapes are needed.

Differences between Different Grades:

Manufacturing Processes of Gr9 Titanium Bars

Producing Gr9 titanium round bars involves several advanced manufacturing processes, each aimed at ensuring high-quality and precise specifications. Common techniques include forging, extrusion, and machining. Forging processes enhance the microstructure of the alloy, improving its strength and toughness. By refining the grain structure during forging, manufacturers can produce components that perform exceptionally well under stress.

Extrusion is another popular method used to create titanium round bars, allowing for the production of uniform profiles over long lengths. This method is particularly advantageous for applications that require specific dimensions and shapes. Additionally, machining plays a crucial role in achieving tight tolerances and intricate designs, which are essential for many engineering applications. Together, these manufacturing processes ensure that Gr9 titanium round bars meet the stringent requirements of diverse industries.

Applicationsof Titanium Rod:
