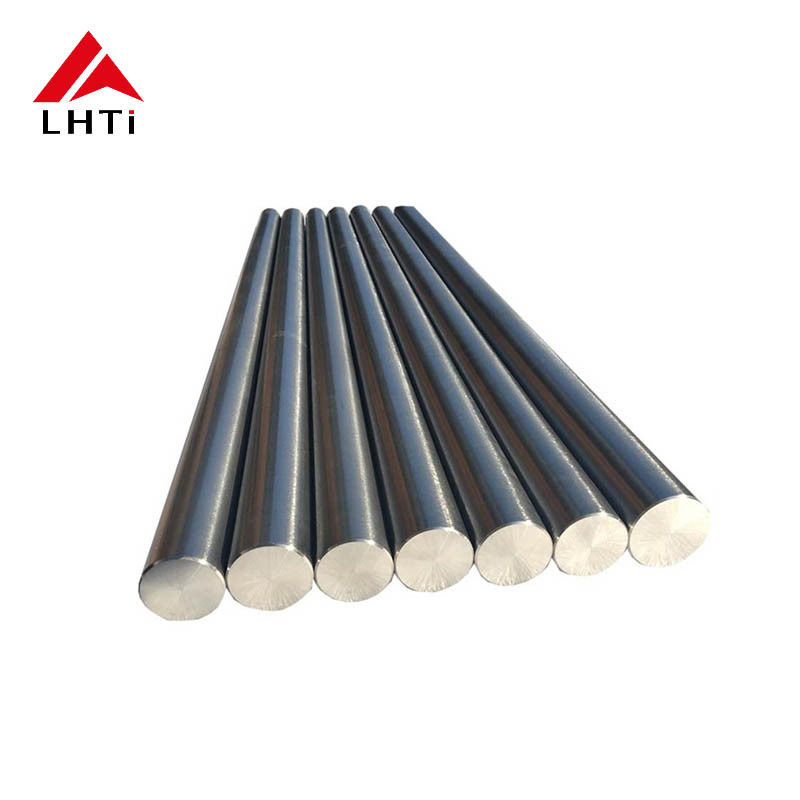

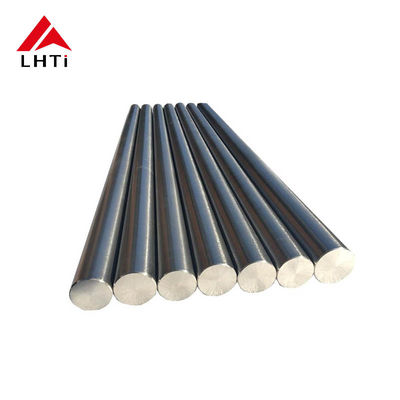

High Quality Corrosion Resistant Titanium Rod and Round Bar for Medical Uses with Customizable Size

Name: High Quality Corrosion Resistant Titanium Rod and Round Bar for Medical Uses with Customizable Size
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Bar
Price: 84.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Bar
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100-200 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, Shaanxi, China

Certification:

ISO9001, CE, API,etc

Material Grade:

Grade 7 (Ti-0.2Pd)

Purity:

99.5%min

Diameter:

3.0mm-200mm

Length:

500mm-6000mm

Tolerance:

H6,h7,h8,h9

Thickness:

0.5---10mm

Packaging Details:

Carton, Plywood case, as per your requirement

Supply Ability:

100-200 Ton/Tons Per Month

Highlight:

medical grade titanium rod

gr1 titanium round bar

gr2 titanium bar for medical

Product Description

High Quality Gr1 Gr2 Titanium Rod Titanium Round Bar Ti Grade 1 Grade 2 For Medical Uses

GR1 Titanium is a commercially pure titanium grade, known for its excellent corrosion resistance, high strength-to-weight ratio, and outstanding biocompatibility. It is commonly used in a variety of applications ranging from aerospace and medical to industrial and consumer products.

What is GR1 Titanium?

Titanium Grade 1 (GR1) is the purest form of titanium, containing approximately 99% titanium with very low amounts of other elements, such as iron and oxygen. It is often referred to as "commercially pure" titanium.
The material is characterized by its high ductility, excellent corrosion resistance, and good weldability.

Name	Titanium Bar
Standard	ASTM B348
Grade	Commercially Pure Grade 5
Diameter	3.0mm-200mm
Length	500mm-6000mm
Tolerance	h6,h7,h8,h9
Technique	Forging, Machining
Surface	acid surface or polishing, sand blasted surface
Shape	Round, flat, square, hexagonal, hollow
Application	Oil, Medical, Chemical industrial etc

Properties of GR1 Titanium

Corrosion Resistance: One of the primary advantages of titanium is its resistance to corrosion, especially in harsh environments such as seawater, chlorides, and acidic conditions. GR1 is particularly well-suited for applications requiring resistance to chemicals and harsh weather conditions.
Strength-to-Weight Ratio: Titanium is both lightweight and strong, making it ideal for applications where minimizing weight while maintaining strength is important.
Ductility: GR1 is known for its excellent formability and ductility, which allows it to be easily shaped into rods, plates, sheets, and other forms.
Biocompatibility: Due to its non-reactive nature, GR1 titanium is often used in medical implants and devices, such as bone plates, screws, and dental implants.

Chemical Composition

Grade	Ti	Al	V	Nb	Fe, max	C, max	N, max	H, max	O, max
Gr1	Bal	/	/		0.20	0.08	0.03	0.015	0.18
Gr2	Bal	/	/		0.30	0.08	0.03	0.015	0.25
Gr3	Bal	/	/		0.30	0.08	0.05	0.015	0.35
Gr4	Bal	/	/		0.50	0.08	0.05	0.015	0.40
Gr5 ELI Ti-6Al-4VELI	Bal	5.5~6.5	3.5~4.5		0.25	0.08	0.05	0.012	0.13
Ti-6Al-7Nb	Bal	5.5-6.5	/	6.5-7.5	0.25	0.08	0.08	0.009	0.20

Applications of GR1 Titanium Rod

Aerospace: Used in aircraft components, especially in environments where high corrosion resistance and low weight are essential.
Medical Devices: GR1 titanium is frequently used in medical implants, such as orthopedic devices, dental implants, and surgical instruments, due to its excellent biocompatibility.
Chemical and Marine Industries: Given its corrosion resistance, it is used in marine and chemical processing equipment, including heat exchangers, tanks, and pipes.
Sports Equipment: Titanium rods are also used in high-performance sports equipment, such as golf clubs and bicycle frames, where strength and light weight are desired.

Advantages of GR1 Titanium Rod

Lightweight: Titanium is about 40% lighter than steel, making it advantageous for industries where weight is a critical factor.
Durable: The material exhibits high tensile strength and resistance to deformation, adding to its longevity in demanding applications.
Non-reactive: GR1 titanium is chemically stable and will not corrode or react in most environments.
Easy to Fabricate: GR1 titanium is easier to form into rods, tubes, and other shapes compared to higher-grade titanium alloys.

Limitations of GR1 Titanium

Strength Limitations: While GR1 has good strength, it is not as strong as titanium alloys like GR5 or GR23. For applications that require high tensile strength, other grades of titanium might be more suitable.
Cost: Titanium, including GR1, can be more expensive than other metals like steel or aluminum. This can be a consideration for cost-sensitive projects.
