TiAl Titanium Aluminum Alloy Sputtering Target

Brand Name:	LHTi
Model Number:	LH-Target
MOQ:	10 piece
Price:	US dollar $25/pc--US dollar $125/pc
Payment Terms:	L/C,D/P,T/T,Western Union，paypal
Supply Ability:	5000 pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Color:

Silver

Trial Order:

Acceptable

Grade:

Gr2,Gr5,Gr7

Shape:

Round

Processing:

HIP

Surface:

Polished

Sample:

Available

Material:

Titanium Alloy

Hardness:

220HV

Quality Control:

Ultrasonic Testing

Grip:

Knurled

Surface State:

Polished Or Alkaline Cleaning

Type:

Darts

Weight:

10 Grams

Dimensions:

Dia30~200mm, Thickness 20~100mm

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per week

Highlight:

Medical Applications Titanium Aluminum Alloy Targets

Titanium Aluminum Alloy Targets

Product Description

TiAl Titanium Aluminum Alloy Sputtering Target

This titanium aluminum alloy (TiAl) sputtering target is a lightweight PVD material with high purity, fine and uniform particle size and good formability. It is produced in several Ti/Al composition ratios and supplied in round shape with a polished surface, hot isostatically pressed and checked by ultrasonic testing. TiAl targets are mainly used to deposit hard, wear-resistant and biocompatible coatings for medical instruments, implants and cutting tools.

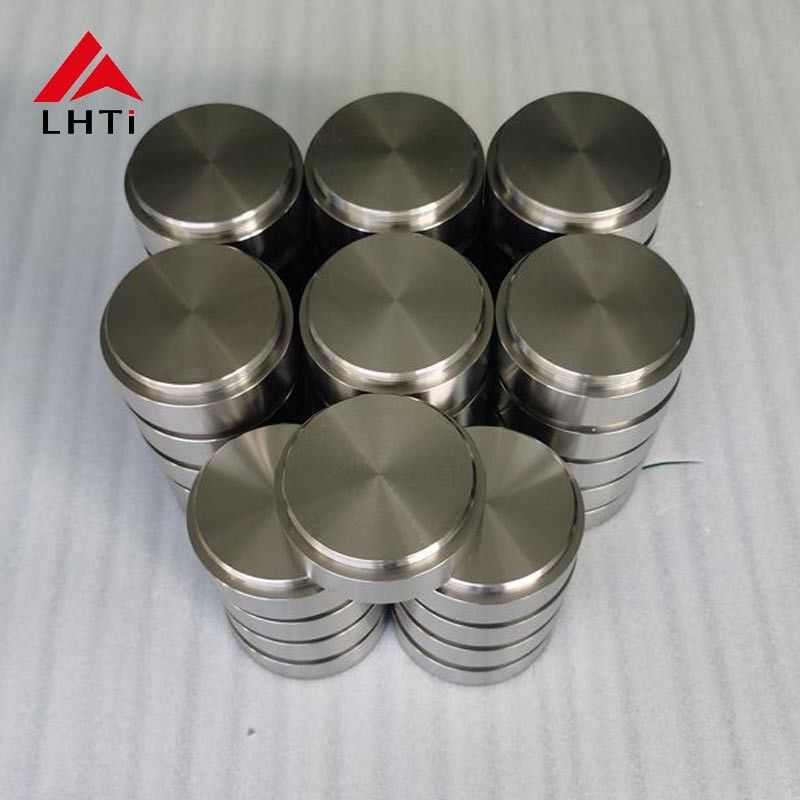

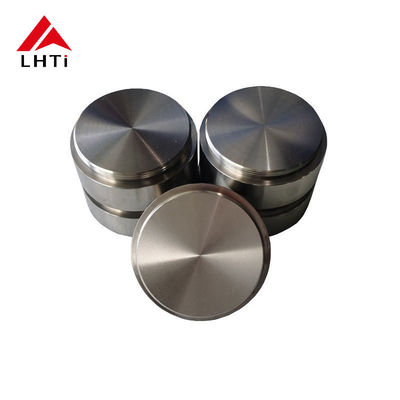

TiAl titanium aluminum alloy target 1

TiAl titanium aluminum alloy target 2

TiAl titanium aluminum alloy target 3

TiAl titanium aluminum alloy target 4

TiAl titanium aluminum alloy target 5

TiAl titanium aluminum alloy target 6

Technical Specifications

Material	Titanium aluminum alloy (TiAl)
Grade	Gr2, Gr5, Gr7
Shape	Round
Dimensions	Diameter 30-200 mm, thickness 20-100 mm
Processing	HIP (hot isostatic pressing)
Surface	Polished or alkaline cleaning
Hardness	220 HV
Quality Control	Ultrasonic testing
Color	Silver

Available Compositions

Item	Detail
Ti/Al composition ratios	25/75, 30/70, 33/67, 40/60, 45/55, 50/50
Customization	The composition can be tailored to the coating requirement

Target Characteristics

Characteristic	Benefit
High purity	Reliable performance in medical and coating applications
Fine particle size	Better sintering and improved coating quality
Easy sintering	Dense, uniform coatings
Good formability	Intricate shapes for complex devices

Applications & Titanium Advantages

TiAl targets are used to coat surgical instruments, to build biocompatible layers for implants and prosthetics, and to make hard coatings for surgical cutting tools such as drills. The alloy is light, corrosion resistant and compatible with body tissue, so coatings made from it improve wear life and support better integration with bone tissue.

Quality, Customization & Inquiry

LHTi produces this target under ISO 9001 and TUV quality control, with sample and trial orders accepted. Targets are wrapped in foam and packed in a plywood box for export, and custom compositions and dimensions can be made. Please send your specification for a quotation.
