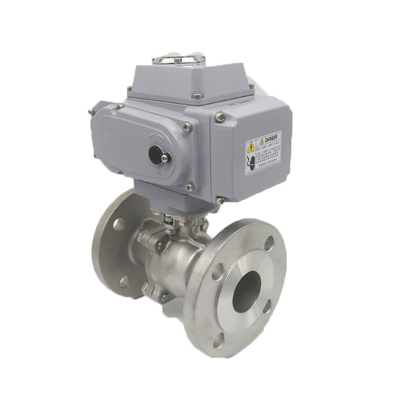

Electric Flanged Ball Valve with API 598 API 607 API 6FA Standards for Enhanced Control

Brand Name:	LHTi
Model Number:	Titanium Ball Valve Gr1 Gr2
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

BaoJi Shaanxi China

Certification:

ISO9001,CE,etc

Cavity Pressure Relief:

Yes

End Connections:

Flanged (ANSI, JIS, DIN, GB)

Testing Standards:

JB/T9092、GB/T13927、API6D、API598

Fire Safe Design:

API 607, API 6FA

Actuator Type:

Manual, Pneumatic, Electric

Body Type:

One-piece, Two-piece, Three-piece

Ball Material:

Titanium, Stainless Steel

Face To Face:

ASME B16.10

Type:

Ball Valve

Material:

Titanium

Port Type:

Full Port, Reduced Port

Grades:

TA1 TA2 TA10 Gr2 Gr3

Fire Safe:

Yes

Temperature Range:

-196°C To 600°C

Ball Materials:

Titanium TA1、TA2、TA10、Gr2、Gr3

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5 tons per month

Highlight:

High Pressure Electric Flanged Ball Valve

Flanged Connections Electric Flanged Ball Valve

High Pressure Flanged Ball Valve

Product Description

Electric Flanged Ball Valve with Flanged Connections

Product Overview

The Electric Flanged Ball Valve delivers precise flow control and reliable performance for demanding industrial applications. Engineered for automation integration, this valve combines durable construction with advanced electric actuation.

Key Features

Electric Actuation: Motor-driven operation enables accurate remote positioning for automated process control
Flanged Connections: Secure, leak-proof pipeline integration suitable for high-pressure/high-flow systems
Industrial-Grade Construction: Robust materials withstand harsh operating environments
Precision Flow Control: Quick response times and accurate regulation enhance process efficiency
Automation-Ready: Electric actuators simplify integration into control systems

Ideal for chemical processing, water treatment, and HVAC systems where durability and precision are critical.

Face-to-Face Dimensions

NPS (inch)	150# Long	150# Short	300# Long	300# Short	600# Long	900# Long	1500# Long	2500# Long
1/2	108	108	140	140	165
3/4	117	117	152	152	190	254
1	127	127	165	165	216	279
1.1/4	140	140	178	178	229	305
1.1/2	165	165	190	190	241	368	368	451
2	178	178	216	216	292	419	419	508
2.1/2	190	190	241	241	330	381	470	578
3	203	203	282	282	356	457	546	673
4	229	229	305	305	432
5						610	705	914
6	394	267	403	403	559	737	832	1022
8	457	292	502	419	660	838	991	1270
10	533	330	568	457	787	965	1130	1422
12	610	356	648	502	838	1029	1257
14	686	381	762	572	889	1130	1384
16	762	406	838	610	991	1219
18	864		914	660	1092	1321
20	914		991	711	1194
22			1092		1295	1549
24	1067		1143	813	1397
