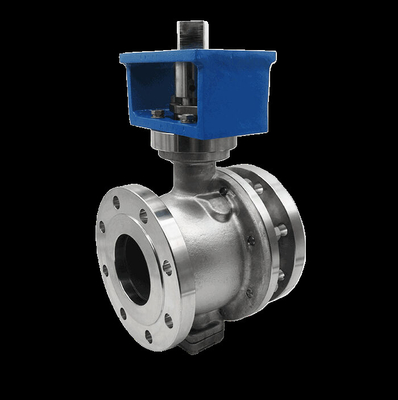

Titanium Electric V-Port Ball Valves Gr1 and Gr2 8-Inch Class 150 DN 15-250 for Water Supply

Name: Titanium Electric V-Port Ball Valves Gr1 and Gr2 8-Inch Class 150 DN 15-250 for Water Supply
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Ball Valve Gr1 Gr2
Price: 22,899.08 USD
Availability: InStock

Product Details

Place of Origin: BaoJi Shaanxi China

Brand Name: LHTi

Certification: ISO9001,CE,etc

Model Number: Titanium Ball Valve Gr1 Gr2

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Plywood case or pallet, or as per your requirement

Delivery Time: 15-20 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000 Pieces Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Class 150 Titanium Electric Ball Valves, 8-Inch Titanium Electric Ball Valves


Bore Type:	Full Bore, Reduced Bore	Material:	Titanium
Ball Type:	Full Port, Reduced Port	Face To Face Dimension:	ASME B16.10
Ball Materials:	Titanium TA1、TA2、TA10、Gr2、Gr3	Surface:	Metallic Luster
Working Temp:	150°-425°	Body Type:	2-Piece, 3-Piece
Type:	2 Piece Ball Valve	Suitable Media:	Water, Oil, Gas, Chemicals
Testing Standard:	API 598, API 6D	Temperature Rating:	-196°C - 600°C
Grades:	TA1 TA2 TA10 Gr2 Gr3	Port Rating:	ASME Class 150, Flanged Ends
Operation Method:	Lever, Gear, Actuator

Bore Type:	Full Bore, Reduced Bore
Material:	Titanium
Ball Type:	Full Port, Reduced Port
Face To Face Dimension:	ASME B16.10
Ball Materials:	Titanium TA1、TA2、TA10、Gr2、Gr3
Surface:	Metallic Luster
Working Temp:	150°-425°
Body Type:	2-Piece, 3-Piece
Type:	2 Piece Ball Valve
Suitable Media:	Water, Oil, Gas, Chemicals
Testing Standard:	API 598, API 6D
Temperature Rating:	-196°C - 600°C
Grades:	TA1 TA2 TA10 Gr2 Gr3
Port Rating:	ASME Class 150, Flanged Ends
Operation Method:	Lever, Gear, Actuator

Titanium Electric V-Port Ball Valves Gr1 and Gr2 8-Inch Class 150 DN 15-250 for Water Supply

Titanium Electric V-Port Ball Valves: Gr1 and Gr2, 8-Inch, Class 150, DN 15-250 for Water Supply

Product Description:

A titanium V-port ball valve is a precision control valve with a V-shaped port that enables more accurate flow regulation than standard ball valves. Constructed from titanium, these valves provide outstanding corrosion resistance, making them ideal for challenging industrial environments.

Face to Face Dimensions for Ball Valve:

Titanium Electric V-Port Ball Valves Gr1 and Gr2 8-Inch Class 150 DN 15-250 for Water Supply 0

	150#		300#		600#	900#	1500#	2500#
NPS (inch)	Long Pattern	Short Pattern	Long Pattern	Short Pattern	Long Pattern	Long Pattern	Long Pattern	Long Pattern
1/2	108	108	140	140	165
3/4	117	117	152	152	190	254
1	127	127	165	165	216	279
1.1/4	140	140	178	178	229	305
1.1/2	165	165	190	190	241	368	368	451
2	178	178	216	216	292	419	419	508
2.1/2	190	190	241	241	330	381	470	578
3	203	203	282	282	356	457	546	673
4	229	229	305	305	432
5						610	705	914
6	394	267	403	403	559	737	832	1022
8	457	292	502	419	660	838	991	1270
10	533	330	568	457	787	965	1130	1422
12	610	356	648	502	838	1029	1257
14	686	381	762	572	889	1130	1384
16	762	406	838	610	991	1219
18	864		914	660	1092	1321
20	914		991	711	1194
22			1092		1295	1549
24	1067		1143	813	1397

Applications of Three-Way Titanium Ball Valves:

Three-way titanium ball valves find diverse applications across various industrial sectors due to their unique properties:

Chemical Industry: With titanium's excellent corrosion resistance, these valves are ideal for managing corrosive substances such as acids, alkalis, and oxides in chemical production processes.
Aerospace Field: Thanks to their lightweight and high-strength characteristics, three-way titanium ball valves are widely used in aerospace hydraulic and fuel systems, meeting the demanding requirements of aircraft.
Food and Pharmaceutical Industries: Titanium's non-toxic nature and lack of contamination make these valves a preferred choice for fluid control in food processing and pharmaceutical applications.
Petroleum and Natural Gas Industry: They are essential in controlling the flow and pressure of fluids during the extraction, transportation, and processing of petroleum and natural gas, ensuring system safety and stability.
Marine Engineering: Their resistance to seawater corrosion makes them suitable for marine applications, including fluid control systems in subsea pipelines and offshore platforms.
