Three-Way Threaded Ball Valve - Ti Ball Valves Gr2 DN 15 Class 150-2500 With Flanges For Water Treatment

Name: Three-Way Threaded Ball Valve - Ti Ball Valves Gr2 DN 15 Class 150-2500 With Flanges For Water Treatment
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Ball Valve Gr1 Gr2
Price: 22,899.08 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Ball Valve Gr1 Gr2
MOQ:	1
Price:	negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

BaoJi Shaanxi China

Certification:

ISO9001,CE,etc

End Connection:

Flanged, Threaded, Welded

Suitable Media:

Water, Oil, Gas, Chemicals

Seat Type:

Soft Seat, Metal Seat

Port Rating:

ASME Class 150, Flanged Ends

Working Temp:

150°-425°

Material:

Titanium

Suitable Medium:

Water, Oil, Gas, Steam, Corrosive Fluids

Temperature Rating:

-196°C - 600°C

Testing Standards:

JB/T9092、GB/T13927、API6D、API598

Blowout Proof Stem:

Yes

Seat Material:

PTFE, RPTFE, PEEK, Metal

Ball Type:

Full Port, Reduced Port

Surface:

Metallic Luster

Standard:

ASTM B863 AWS A5.16 ASTM F136 ASTM F67

End Connections:

Flanged (ANSI, JIS, DIN, GB)

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

Gr2 Three-Way Threaded Ball Valve

Ti Ball Valves Gr2 DN 15

Water Treatment Ti Ball Valves

Product Description

Three-Way Threaded Ball Valve - Ti Ball Valves Gr2 DN 15 Class 150-2500 with Flanges for Water Treatment

Product Introduction:

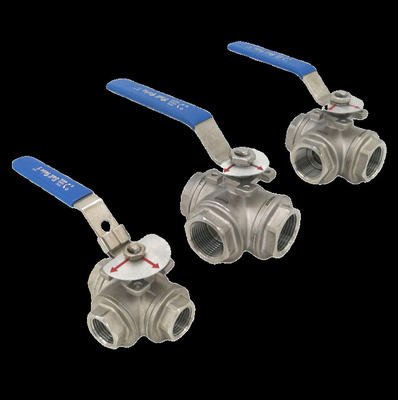

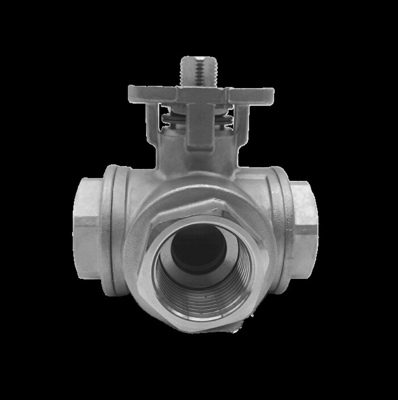

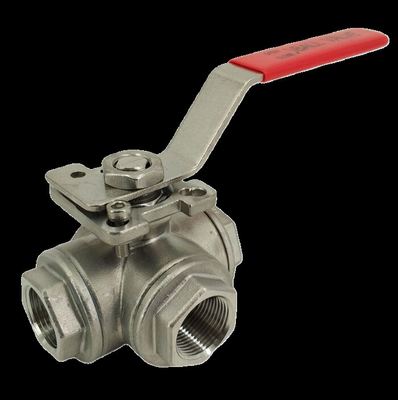

Three-Way Titanium Ball Valves: L-Type and T-Type

Three-way titanium ball valves are available in L-Type (Q44F) and T-Type (Q45F), each providing unique flow control capabilities.

L-Type (Q44F): Designed for redirecting the medium between two perpendicular channels, this valve effectively changes the flow path.
T-Type (Q45F): This valve supports media distribution and confluence by connecting three channels or any two of the three, offering flexible and complex flow control options.

Face to Face Dimensions for Ball Valve:

Three-Way Threaded Ball Valve - Ti Ball Valves Gr2 DN 15 Class 150-2500 With Flanges For Water Treatment 0

	150#		300#		600#	900#	1500#	2500#
NPS (inch)	Long Pattern	Short Pattern	Long Pattern	Short Pattern	Long Pattern	Long Pattern	Long Pattern	Long Pattern
1/2	108	108	140	140	165
3/4	117	117	152	152	190	254
1	127	127	165	165	216	279
1.1/4	140	140	178	178	229	305
1.1/2	165	165	190	190	241	368	368	451
2	178	178	216	216	292	419	419	508
2.1/2	190	190	241	241	330	381	470	578
3	203	203	282	282	356	457	546	673
4	229	229	305	305	432
5						610	705	914
6	394	267	403	403	559	737	832	1022
8	457	292	502	419	660	838	991	1270
10	533	330	568	457	787	965	1130	1422
12	610	356	648	502	838	1029	1257
14	686	381	762	572	889	1130	1384
16	762	406	838	610	991	1219
18	864		914	660	1092	1321
20	914		991	711	1194
22			1092		1295	1549
24	1067		1143	813	1397

Applications of Three-Way Titanium Ball Valves:

Three-way titanium ball valves find diverse applications across various industrial sectors due to their unique properties:

Chemical Industry: With titanium's excellent corrosion resistance, these valves are ideal for managing corrosive substances such as acids, alkalis, and oxides in chemical production processes.
Petroleum and Natural Gas Industry: They are essential in controlling the flow and pressure of fluids during the extraction, transportation, and processing of petroleum and natural gas, ensuring system safety and stability.
Marine Engineering: Their resistance to seawater corrosion makes them suitable for marine applications, including fluid control systems in subsea pipelines and offshore platforms.
Aerospace Field: Thanks to their lightweight and high-strength characteristics, three-way titanium ball valves are widely used in aerospace hydraulic and fuel systems, meeting the demanding requirements of aircraft.
Food and Pharmaceutical Industries: Titanium's non-toxic nature and lack of contamination make these valves a preferred choice for fluid control in food processing and pharmaceutical applications.
