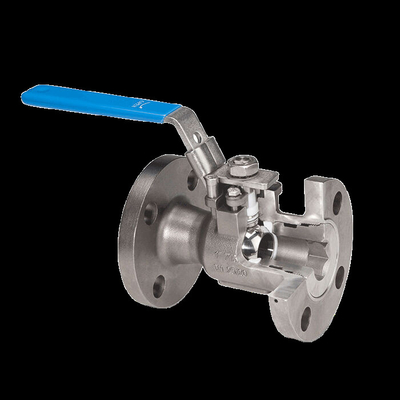

ASME Titanium Ball Valves, Grades 1 and 2, PN 1.6-4.0 MPa, NPS 1/2''-12'', for Industrial Use

Product Description:

Special material ball valves include a range of types such as two-way, three-way, and four-way valves. These valves are available in both soft-seal and hard-seal configurations and come in floating and trunnion-mounted designs. They are made from high-performance materials like titanium, nickel, zirconium, Hastelloy, Monel, Inconel, duplex stainless steel, 904L, Alloy 20, and C4 steel. These materials are chosen for their outstanding performance in harsh environments, offering excellent corrosion resistance, mechanical strength, and reliability for a wide array of industrial applications.

Titanium ball valves, in particular, are crucial for directing, mixing, or changing the flow of fluids. They feature a top-mounted structure that reduces the number of connecting bolts in the valve body, which is especially advantageous in high-pressure and large-diameter scenarios. This design enhances the valve’s reliability and reduces the impact of system weight on its normal operation.

Grades of Titanium Ball Valves:

Titanium ball valves are valued for their exceptional corrosion resistance and strength, making them suitable for demanding environments such as chemical, petroleum, pharmaceutical, and marine engineering:

• TA1 (Gr1): Pure titanium with excellent ductility and toughness, easy to form and weld.
• TA2 (Gr2): Pure titanium with strong corrosion resistance and moderate strength, also easy to form and weld.
• TA9 (Gr7): Titanium alloyed with 0.12-0.25% palladium (Pd) for enhanced corrosion resistance, especially in reducing environments.
• TA10 (Gr12): Titanium alloy containing molybdenum (Mo) and nickel (Ni) for improved strength and heat resistance while maintaining good corrosion resistance.
• TC4 (Gr5): Titanium alloy with 6% aluminum (Al) and 4% vanadium (V), offering high strength, hardness, good corrosion resistance, and low density.

Face to Face Dimensions for Ball Valve:
