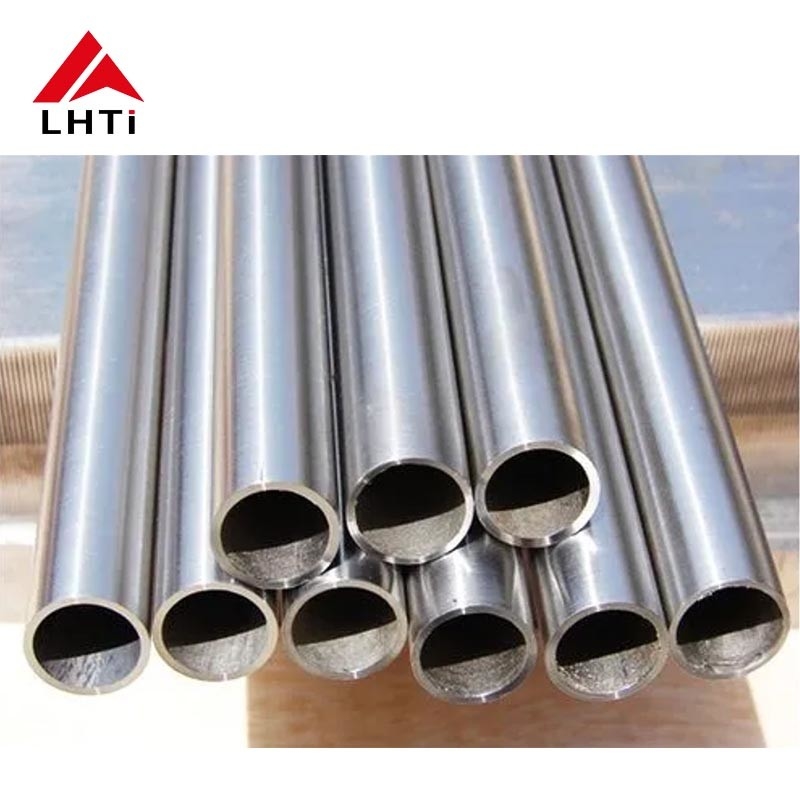

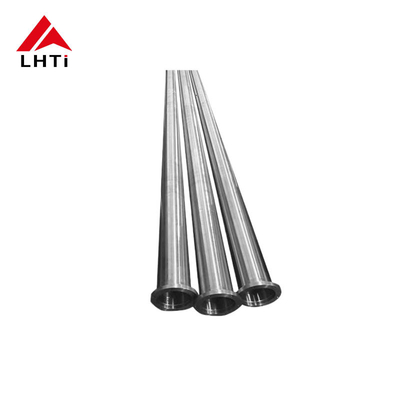

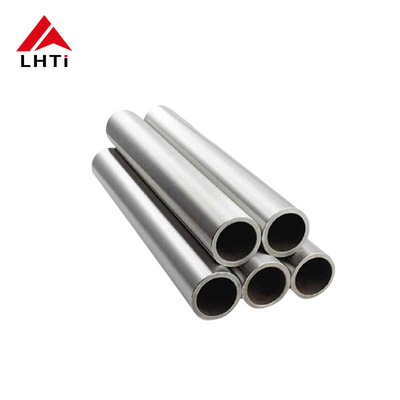

High Purity Gr2 Seamless Titanium Tube ASTM B338 / Small Diameter Titanium Tubing

Name: High Purity Gr2 Seamless Titanium Tube ASTM B338 / Small Diameter Titanium Tubing
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-01
Price: 23.50 USD
Availability: InStock

Product Details

Place of Origin: BaoJi Shaanxi China

Brand Name: LHTI

Certification: ISO9001

Model Number: LH-01

Payment & Shipping Terms

Minimum Order Quantity: If in stock, sample is available; If not in stock,100kgs of each size

Price: USD $19.5-$28.5 / kg

Packaging Details: Standard exporting packaging, plywood case outside

Delivery Time: 7-15 working days

Payment Terms: T/T, L/C, D/A, D/P, Western Union

Supply Ability: 10000 Kilogram/Kilograms per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                ASTM B338 Titanium Tube, small diameter Titanium Tube, High Purity Gr2 Titanium Tube


Surface Treatment:	Polished	Payment Term:	T/T,L/C Etc
Product Type:	Polished Welded Titanium Round Tubes	Diameter:	10mm
Tolerance:	H7	Performance:	Titanium Heat-transferring Coil
Hs Code:	8108904090	Length:	Customizable
Shape:	Round	Material:	Titanium
Material Grade:	Gr1,Gr2	Classification:	Gr1 Gr2 Gr5 Gr7 Gr9
Size:	Customizable	Third Party Testing:	Available
Payment:	T/T,L/C,ESCROW,PAYPAL

Surface Treatment:	Polished
Payment Term:	T/T,L/C Etc
Product Type:	Polished Welded Titanium Round Tubes
Diameter:	10mm
Tolerance:	H7
Performance:	Titanium Heat-transferring Coil
Hs Code:	8108904090
Length:	Customizable
Shape:	Round
Material:	Titanium
Material Grade:	Gr1,Gr2
Classification:	Gr1 Gr2 Gr5 Gr7 Gr9
Size:	Customizable
Third Party Testing:	Available
Payment:	T/T,L/C,ESCROW,PAYPAL

High Purity Gr2 Seamless Titanium Tube ASTM B338 / Small Diameter Titanium Tubing

High Purity Gr2 Seamless Titanium Tube ASTM B338 / small diameter titanium tubing

Titanium Tubing, made from high-quality titanium, delivers outstanding strength, lightweight properties, and excellent resistance to corrosion and oxidation, along with a 20% elongation for both durability and flexibility. Suitable for diverse applications such as chemical processing, oil and gas production, aerospace engineering, and the automotive industry, it is available in both seamless and welded forms. Its exceptional strength-to-weight ratio is ideal for scenarios where weight reduction is crucial. Combining high strength, low weight, and superior resistance, Titanium Tubing is the optimal choice for demanding applications requiring reliability and performance.

High Purity Gr2 Seamless Titanium Tube ASTM B338 / Small Diameter Titanium Tubing 0

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
