Titanium Motorcycle Auto Exhaust Pipe Dia - GR2 : 38mm / 50.8mm / 63.5mm / 76mm / 89mm

Name: Titanium Motorcycle Auto Exhaust Pipe Dia - GR2 : 38mm / 50.8mm / 63.5mm / 76mm / 89mm
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-01
Price: 23.50 USD
Availability: InStock

Product Details

Place of Origin: BaoJi Shaanxi China

Brand Name: LHTI

Certification: ISO9001

Model Number: LH-01

Payment & Shipping Terms

Minimum Order Quantity: If in stock, sample is available; If not in stock,100kgs of each size

Price: USD $19.5-$28.5 / kg

Packaging Details: Standard exporting packaging, plywood case outside

Delivery Time: 7-15 working days

Payment Terms: T/T, L/C, D/A, D/P, Western Union

Supply Ability: 10000 Kilogram/Kilograms per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                89mm Titanium Motorcycle Auto Exhaust Pipe, GR2 Titanium Motorcycle Auto Exhaust Pipe, 50.8mm Titanium Motorcycle Auto Exhaust Pipe


Length:	Customizable	Yieldstrength:	800MPa
Applications:	Aerospace, Medical, Chemical Industry	Production Time:	15 Working Days
Product Type:	Polished Welded Titanium Round Tubes	Elongation:	20%
Outer Diameter:	3mm -57mm	Size:	Customizable
Processing Service:	Bending, Cutting	Certifications:	ASTM, ASME, ISO
Type:	Seamless/Welded	Diameter:	Customizable
Corrosion Resistance:	High	Smls Or Welded:	Seamless
Packing:	Standard Exported Wooden Cases

Length:	Customizable
Yieldstrength:	800MPa
Applications:	Aerospace, Medical, Chemical Industry
Production Time:	15 Working Days
Product Type:	Polished Welded Titanium Round Tubes
Elongation:	20%
Outer Diameter:	3mm -57mm
Size:	Customizable
Processing Service:	Bending, Cutting
Certifications:	ASTM, ASME, ISO
Type:	Seamless/Welded
Diameter:	Customizable
Corrosion Resistance:	High
Smls Or Welded:	Seamless
Packing:	Standard Exported Wooden Cases

Titanium Motorcycle Auto Exhaust Pipe Dia - GR2 : 38mm / 50.8mm / 63.5mm / 76mm / 89mm

Titanium Motorcycle Auto Exhaust Pipe Dia - GR2 : 38mm / 50.8mm / 63.5mm / 76mm / 89mm

Product Description:

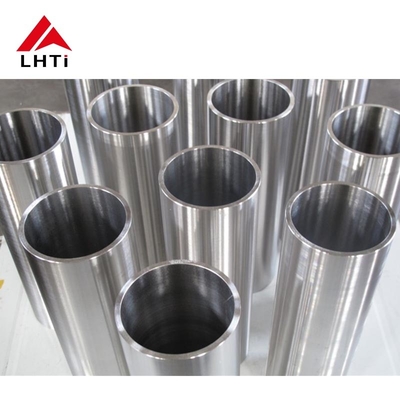

Made from pure Titanium Grade 2, this tubing comes in various sizes including 1.5" (38.1mm), 2.0" (50.8mm), 2.5" (63.5mm), 3" (76.2mm), 3.5" (88.9mm), and 4.0" (101.6mm), with a length of 39.4 inches (1.0 meters). It features wall thicknesses of 1mm, .039", or 1.2mm and is available in seamless or welded styles. The surface can be finished with pickling or polishing.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

Titanium Motorcycle Auto Exhaust Pipe Dia - GR2 : 38mm / 50.8mm / 63.5mm / 76mm / 89mm 0
