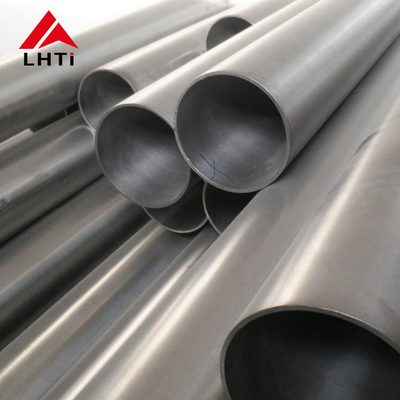

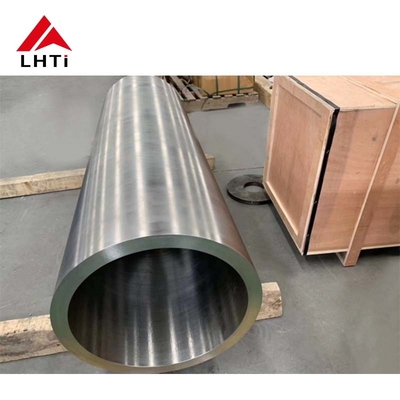

Grade 1/2 Pickling Surface Titanium Pipe EB1199/ ASTM B338 Titanium Tube/ Titanium Welded Pipe

Name: Grade 1/2 Pickling Surface Titanium Pipe EB1199/ ASTM B338 Titanium Tube/ Titanium Welded Pipe
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-01
Price: 23.50 USD
Availability: InStock

Product Details

Place of Origin: BaoJi Shaanxi China

Brand Name: LHTI

Certification: ISO9001

Model Number: LH-01

Payment & Shipping Terms

Minimum Order Quantity: If in stock, sample is available; If not in stock,100kgs of each size

Price: USD $19.5-$28.5 / kg

Packaging Details: Standard exporting packaging, plywood case outside

Delivery Time: 7-15 working days

Payment Terms: T/T, L/C, D/A, D/P, Western Union

Supply Ability: 100 tons per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Pickling Surface Titanium Pipe, Grade 1/2 Titanium Pipe, ASTM B338 Titanium Pipe


Dimention:	OD(5-114)X(0.3—10)XL1200mmMax	Processing Service:	Bending, Cutting
Coporation:	Trading And Manufacture	Titanium Coil Tube:	ASTM B861/B338
Applications:	Pressure Vessel Equipment And Boilers	Processing:	Seamless
Corrosion Resistance:	High	Corrosionresistance:	Excellent
Inside Diameter:	4~268mm	Application:	Aerospace, Chemical Processing, Medical, Marine, Oil And Gas
Package:	Wooden Cases	Thickness:	0.5---10mm
Color:	Metallic	Colour:	Silver
Grade:	Grade 2	Packing:	Standard Exported Wooden Cases
Shape:	Round	Tensilestrength:	1000MPa
Techology:	Rolling Extrusion	Hs Code:	8108904090
Outer Diameter:	9.52/12.7/15.9/19.1/25.4/32/33.4/38.1mm	Heatresistance:	Good
Biocompatibility:	High	Product Type:	Polished Welded Titanium Round Tubes
Standard:	ASTM B338, ASTM B861, ASTM B862	Hardness:	HV200
Technique:	Technique	Corporation:	Trading And Manufacturer
Key Words:	Thick Wall Titanium Alloy Tube	Lead Time:	7-10days
Standrad:	ASTM B861/B338	Technology:	Cold Rolled, Hot Rolled
Commodity:	Rectangle Frame Coil Tube	Tolerance:	H7
Specification:	Customzied	Service:	OEM, ODM
Electrical Conductivity:	Low	Size:	NPS 1/8 ~ 36 * Sch 5 ~ 80
Diameter:	6.000 - 12.200 Mm	Yieldstrength:	800MPa
Certificates:	ISO9001:2015	Melting Point:	1668 °C
Smls Or Welded:	Seamless	Pipe Diameter:	31.8mm
Widthness:	30mm---100mm	Weight:	Lightweight
Condition:	R M Y	Production Time:	15 Working Days
Drawing:	Accept Customized	Refrigerant:	R22,R134a,R407c,R410a R417a
Elongation:	20%	Density:	4.51 G/cm3
Surface:	Polished	Dimension:	As Drawing Or Customized
High Temperature Resistance:	Yes	Length:	Customizable
Connection:	Welding/seamless	Weldability:	Good
Meltingpoint:	1660℃	Payment:	T/T,L/C,ESCROW,PAYPAL
Regular Size:	48ft/ 410ft/ 1500*3000mm	Type:	Pure Round Titanium Pipe
Classification:	GR1 GR2 GR7 GR12 Etc

Dimention:	OD(5-114)X(0.3—10)XL1200mmMax
Processing Service:	Bending, Cutting
Coporation:	Trading And Manufacture
Titanium Coil Tube:	ASTM B861/B338
Applications:	Pressure Vessel Equipment And Boilers
Processing:	Seamless
Corrosion Resistance:	High
Corrosionresistance:	Excellent
Inside Diameter:	4~268mm
Application:	Aerospace, Chemical Processing, Medical, Marine, Oil And Gas
Package:	Wooden Cases
Thickness:	0.5---10mm
Color:	Metallic
Colour:	Silver
Grade:	Grade 2
Packing:	Standard Exported Wooden Cases
Shape:	Round
Tensilestrength:	1000MPa
Techology:	Rolling Extrusion
Hs Code:	8108904090
Outer Diameter:	9.52/12.7/15.9/19.1/25.4/32/33.4/38.1mm
Heatresistance:	Good
Biocompatibility:	High
Product Type:	Polished Welded Titanium Round Tubes
Standard:	ASTM B338, ASTM B861, ASTM B862
Hardness:	HV200
Technique:	Technique
Corporation:	Trading And Manufacturer
Key Words:	Thick Wall Titanium Alloy Tube
Lead Time:	7-10days
Standrad:	ASTM B861/B338
Technology:	Cold Rolled, Hot Rolled
Commodity:	Rectangle Frame Coil Tube
Tolerance:	H7
Specification:	Customzied
Service:	OEM, ODM
Electrical Conductivity:	Low
Size:	NPS 1/8 ~ 36 * Sch 5 ~ 80
Diameter:	6.000 - 12.200 Mm
Yieldstrength:	800MPa
Certificates:	ISO9001:2015
Melting Point:	1668 °C
Smls Or Welded:	Seamless
Pipe Diameter:	31.8mm
Widthness:	30mm---100mm
Weight:	Lightweight
Condition:	R M Y
Production Time:	15 Working Days
Drawing:	Accept Customized
Refrigerant:	R22,R134a,R407c,R410a R417a
Elongation:	20%
Density:	4.51 G/cm3
Surface:	Polished
Dimension:	As Drawing Or Customized
High Temperature Resistance:	Yes
Length:	Customizable
Connection:	Welding/seamless
Weldability:	Good
Meltingpoint:	1660℃
Payment:	T/T,L/C,ESCROW,PAYPAL
Regular Size:	48ft/ 410ft/ 1500*3000mm
Type:	Pure Round Titanium Pipe
Classification:	GR1 GR2 GR7 GR12 Etc

Grade 1/2 Pickling Surface Titanium Pipe EB1199/ ASTM B338 Titanium Tube/ Titanium Welded Pipe

Round Shaped Hollow Polished Titanium Tube With Good Strength in 800MPa/ titanium seamless tube

Product Description:

Titanium Tubing is made from high-quality titanium, providing exceptional strength, lightweight properties, and outstanding corrosion and oxidation resistance. It also features an elongation of 20%, ensuring both durability and flexibility.

Available in seamless and welded forms, Titanium Tubing is versatile and suitable for a wide range of applications, including chemical processing, oil and gas production, aerospace engineering, and the automotive industry. Its remarkable strength-to-weight ratio is particularly advantageous for applications where weight reduction is critical.

For demanding applications, Titanium Tubing offers high strength, low weight, and superior resistance. It is the ideal choice for those seeking a reliable and high-performance tubing solution.

Technical Parameters:

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

Grade 1/2 Pickling Surface Titanium Pipe EB1199/ ASTM B338 Titanium Tube/ Titanium Welded Pipe 0
