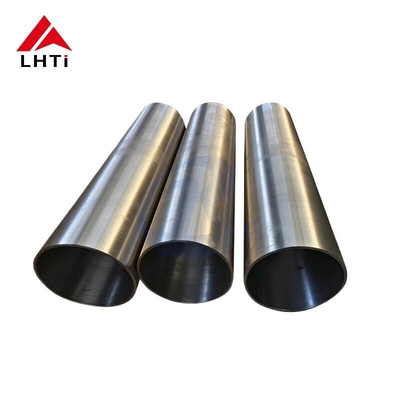

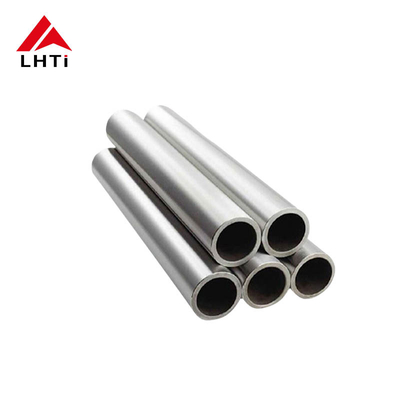

Grade 2 Titanium Seamless Tube Pipe for Chemical Plants Inside Diameter Range of 0.5-100mm

Titanium Seamless Tube & Pipe Grade 2 Titanium Tubing to Chemical Processing Plants

Introduction of Titanium Tube Grade 2:

Titanium Seamless Tube Grade 2 is a commercially pure titanium alloy known for its excellent corrosion resistance, formability, and weldability.

Here’s an introduction to Titanium Seamless Tube Grade 2:

Composition: Grade 2 titanium consists primarily of titanium (around 99% pure) with small amounts of oxygen, nitrogen, hydrogen, iron, and traces of other elements. It does not contain alloying elements such as aluminum or vanadium.

Corrosion Resistance: Grade 2 titanium exhibits superb corrosion resistance in a wide range of environments, including seawater, chlorides, and acids. This property makes it highly suitable for applications where protection against corrosion is critical, such as chemical processing, marine environments, and medical implants.

Strength and Ductility: Grade 2 titanium has good strength comparable to some steels but is much less dense. It offers excellent ductility and toughness, allowing it to be formed and fabricated easily into various shapes and sizes.

Weldability and Fabrication: Titanium Seamless Tube Grade 2 is readily weldable using standard techniques for titanium and its alloys. It can be seamlessly formed into tubes through processes like extrusion or cold drawing, ensuring consistent dimensions and mechanical properties.

Biocompatibility: Due to its purity and lack of alloying elements, Grade 2 titanium is biocompatible and widely used in medical applications. It is often used for surgical implants, prosthetics, orthopedic devices, and dental instruments where it interacts safely with human tissues.

Heat Resistance: Grade 2 titanium maintains its properties at moderate temperatures and is suitable for applications involving heat transfer and thermal processing equipment.

Grade 2 Titanium Tube Specifications:

Different Grades of Titanium:


CP Grade 1 (UNS R50250):

• Properties: Softest and most ductile grade.
• Characteristics: Excellent cold formability, high impact toughness, good welding properties.
• Applications: Ideal for applications requiring high formability and resistance to mild to high oxidation.

CP Grade 2 (UNS R50400):

• Properties: Widely used commercially pure titanium.
• Characteristics: Moderate strength, excellent cold-forming properties.
• Applications: Known as the "workhorse" of commercially pure titanium due to its balanced strength and ductility. Widely used in various industries.

CP Grade 3:

• Properties: Primarily used in pressure vessels.
• Characteristics: Excellent corrosion resistance.
• Applications: Suitable for applications where corrosion resistance is critical, such as in chemical processing.

Alloy Grade 5 (Ti-6Al-4V, UNS R56400):

• Properties: Most widely used titanium alloy.
• Characteristics: Two-phase α+β titanium alloy with aluminum as alpha stabilizer and vanadium as beta stabilizer.
• Applications: Offers comprehensive mechanical, physical, and chemical properties. Commonly used in aerospace, marine, and medical applications.

Alloy Grade 23 (Ti-6Al-4V ELI, UNS R56401):

• Properties: Extra Low Interstitial version of Ti-6Al-4V.
• Characteristics: Superior damage tolerance, making it ideal for medical and dental applications.
• Applications: Specifically designed for enhanced biocompatibility and strength, suitable for surgical implants and medical devices.

Titanium 8Al-1Mo-1V:

• Properties: Near Alpha Alloy.
• Characteristics: Designed for elevated temperature use (up to 455°C), good creep strength.
• Applications: Used in aerospace and industrial applications where high temperature and low density are advantageous.

Each grade of titanium tubing is chosen based on specific requirements such as strength, corrosion resistance, formability, and temperature tolerance, ensuring optimal performance across a wide range of industrial and medical applications.

Chemical Composition of ASME SB338 Ti Gr 2 Seamless Pipe:

Applications of Grade 2 Titanium Seamless Tubes:

Grade 2 titanium seamless tubes find numerous applications across various industries where their unique properties are highly advantageous. Some of the key applications include:

Aerospace Industry:

Heat Exchangers: Grade 2 titanium seamless tubes are used in heat exchangers due to their excellent corrosion resistance and thermal conductivity properties. They help in efficiently transferring heat in aircraft engines and air conditioning systems.

Hydraulic Tubing: Titanium tubes are used in hydraulic systems of aircraft where lightweight, corrosion resistance, and high strength are critical factors.

Chemical Processing:

Process Piping: Titanium seamless tubes are ideal for transporting corrosive chemicals in chemical processing plants. Their resistance to a wide range of corrosive media, including acids and chlorides, makes them suitable for handling aggressive chemicals safely.

Heat Transfer Equipment: Used in heat exchangers, condensers, and reactors where corrosion resistance is essential for maintaining operational efficiency and safety.

Medical Applications:

Implants: Grade 2 titanium seamless tubes are used in medical implants and surgical instruments due to their biocompatibility and resistance to corrosion within the human body. Examples include bone screws, joint replacements, and dental implants.

Medical Devices: They are also used in medical devices such as catheters and endoscopic instruments where biocompatibility and durability are crucial.

Marine Industry:

Seawater Desalination: Titanium seamless tubes are used in heat exchangers and tubing systems for seawater desalination plants due to their resistance to corrosion from seawater and saline environments.

Shipbuilding: They are used in critical components of ships and submarines where lightweight materials with high strength and corrosion resistance are required.

Oil and Gas Industry:

Offshore Platforms: Titanium tubes are used in offshore oil rigs and platforms where they withstand corrosive saltwater environments and provide long-term reliability in structural applications.

Pipelines: Used in pipelines for transporting corrosive fluids and gases where conventional materials may not offer adequate resistance to corrosion.
