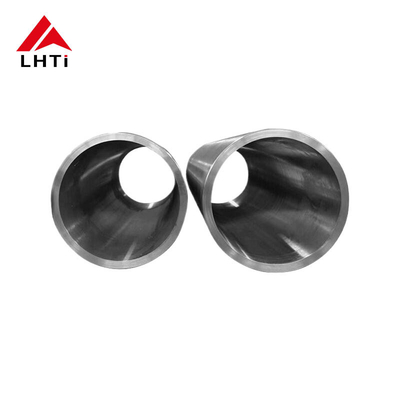

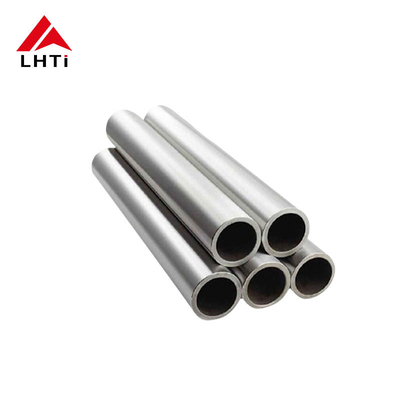

Titanium Alloy Tubing Ti Gr 1 Gr3 Gr5 Ge23 Titanium Seamless Tube For Medical Implants

Titanium Alloy Tubing Ti Gr 1 Gr3 Gr5 Ge23 Titanium Seamless Tube for Medical Implants

Introduction of Titanium Seamless Tube:

Titanium tubing combines the exceptional properties of titanium with the versatility of cylindrical metal forms. Titanium, known for its high strength-to-weight ratio and low density, is favored for its robustness and lightness in weight. Its corrosion resistance extends to harsh environments such as seawater and chlorine. Tubing, a cylindrical component available in various diameters and lengths, serves diverse applications due to its hollow structure.

Titanium tubes are integral components in various industries due to titanium's exceptional properties. Renowned for its high strength-to-weight ratio, corrosion resistance, and biocompatibility, titanium tubes are pivotal in aerospace, medical, marine, and chemical processing applications.

Key Features of Titanium Tubes:

1. High Strength and Low Density: Titanium's strength is comparable to steel but at approximately half the weight, making titanium tubes ideal for lightweight structures without compromising strength.

2. Corrosion Resistance: Titanium exhibits superb resistance to corrosion, including resistance to seawater, acids, and chloride solutions. This property ensures longevity and reliability in harsh environments.

3. Biocompatibility: Titanium is biocompatible and non-toxic, making it suitable for medical implants such as joint replacements and surgical instruments. Grade 23 (Ti-6Al-4V ELI) is particularly favored in medical applications due to its enhanced biocompatibility.

4. Heat and Cold Resistance: Titanium maintains its mechanical properties in extreme temperatures, from cryogenic conditions to elevated temperatures up to around 600°C (depending on the grade).

5. Formability and Weldability: Depending on the grade, titanium can be easily formed, welded, and machined, facilitating complex designs and assemblies.

Titanium Tubing Grades Guide:

Titanium tubing comes in several grades, each offering distinct properties tailored for specific applications:

CP Grade 1 (UNS R50250):

• Properties: Softest and most ductile grade.
• Characteristics: Excellent cold formability, high impact toughness, good welding properties.
• Applications: Ideal for applications requiring high formability and resistance to mild to high oxidation.

CP Grade 2 (UNS R50400):

• Properties: Widely used commercially pure titanium.
• Characteristics: Moderate strength, excellent cold-forming properties.
• Applications: Known as the "workhorse" of commercially pure titanium due to its balanced strength and ductility. Widely used in various industries.

CP Grade 3:

• Properties: Primarily used in pressure vessels.
• Characteristics: Excellent corrosion resistance.
• Applications: Suitable for applications where corrosion resistance is critical, such as in chemical processing.

Alloy Grade 5 (Ti-6Al-4V, UNS R56400):

• Properties: Most widely used titanium alloy.
• Characteristics: Two-phase α+β titanium alloy with aluminum as alpha stabilizer and vanadium as beta stabilizer.
• Applications: Offers comprehensive mechanical, physical, and chemical properties. Commonly used in aerospace, marine, and medical applications.

Alloy Grade 23 (Ti-6Al-4V ELI, UNS R56401):

• Properties: Extra Low Interstitial version of Ti-6Al-4V.
• Characteristics: Superior damage tolerance, making it ideal for medical and dental applications.
• Applications: Specifically designed for enhanced biocompatibility and strength, suitable for surgical implants and medical devices.

Titanium 8Al-1Mo-1V:

• Properties: Near Alpha Alloy.
• Characteristics: Designed for elevated temperature use (up to 455°C), good creep strength.
• Applications: Used in aerospace and industrial applications where high temperature and low density are advantageous.

Each grade of titanium tubing is chosen based on specific requirements such as strength, corrosion resistance, formability, and temperature tolerance, ensuring optimal performance across a wide range of industrial and medical applications.

Technology Data Sheet of Titanium Tube:

Quality Test of Titanium Tube:

The inspection and testing of titanium tubes are critical to ensure they meet stringent quality standards and specifications. Here’s an overview of the various methods commonly used:

​Ultrasonic Testing (UT):

• Purpose: Used to detect internal defects such as cracks, voids, or inclusions.
• Method: Ultrasonic waves are transmitted through the tube walls; variations in wave reflections indicate defects.

Eddy Current Testing (ET):

• Purpose: Detects surface and near-surface flaws, cracks, and material changes.
• Method: Electrical currents induced in the tube interact with defects, producing measurable signals.

Flaring Testing:

• Purpose: Evaluates the tube’s ability to withstand deformation and assesses the quality of tube ends.
• Method: Tubes are flared to a specified diameter; the quality of the flare and any cracks are inspected.

Hydrostatic Testing:

• Purpose: Checks the tube’s strength and integrity under pressure.
• Method: Tubes are pressurized with water or another liquid to a specified pressure level, checking for leaks or permanent deformation.

​Flattening Testing:

• Purpose: Assesses ductility and resistance to deformation.
• Method: Tubes are flattened until the tube walls touch, evaluating the ability to withstand flattening without failure.

Visual Surface Inspection:

• Purpose: Detects surface defects such as scratches, pits, dents, or contamination.
• Method: Inspection by trained personnel using visual aids like magnification, lighting, or dye penetrants.

Dimensional Inspection:

• Purpose: Ensures tubes conform to specified dimensional tolerances.
• Method: Using calibrated measuring tools, dimensions such as outer diameter, wall thickness, length, and end preparations are verified.

Tensile Properties Inspection:

• Purpose: Determines mechanical properties such as tensile strength, yield strength, and elongation.
• Method: Samples are taken from the tube to conduct tensile tests according to applicable standards.

Chemical Elements Analysis:

• Purpose: Verifies the chemical composition of the titanium alloy.
• Method: Techniques such as spectroscopy or chemical analysis are used to measure elemental concentrations against specified requirements.

Quality Assurance and Compliance:

• Inspection and testing are conducted at various stages of manufacturing and after fabrication to ensure compliance with industry standards (e.g., ASTM, ASME) and customer specifications.
• Documentation of test results and certifications provides assurance of quality and traceability throughout the supply chain.

Applications of Titanium Tube:

Titanium tubes find diverse applications across several industries due to their exceptional properties, including high strength-to-weight ratio, corrosion resistance, and biocompatibility. Here are some key applications:

Aerospace: Titanium tubes are widely used in the aerospace industry for applications such as aircraft hydraulic systems, airframes, landing gear components, and exhaust ducts. Their lightweight nature helps reduce overall aircraft weight, enhancing fuel efficiency and performance.

Industrial: In industrial settings, titanium tubes are utilized in heat exchangers, condensers, and reactor vessels where resistance to corrosion from aggressive chemicals and high temperatures is crucial. They are also employed in desalination plants for their resistance to seawater corrosion.

Medical: Titanium tubes are essential in medical applications, particularly for manufacturing implants and surgical instruments. Titanium's biocompatibility and resistance to bodily fluids make it ideal for implants such as hip stems, bone plates, and dental implants.

Marine: Titanium tubes are used in marine environments for seawater-cooled condensers, heat exchangers, and piping systems. Their corrosion resistance ensures longevity and reliability in saltwater environments.

Automotive: Titanium tubes are employed in automotive applications, especially in high-performance vehicles, for components like exhaust systems and intake piping. Their high strength and heat resistance contribute to improved engine performance.
