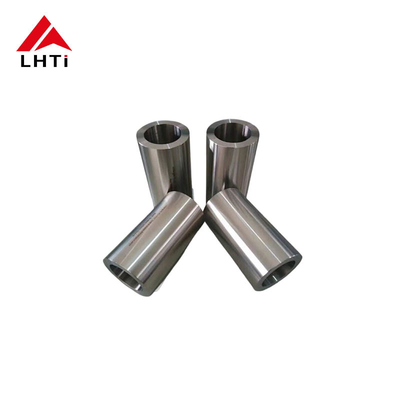

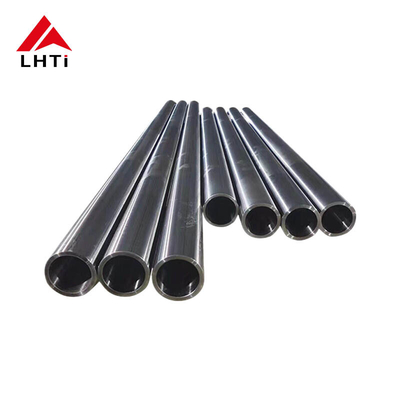

Titanium Tubes To Grade 2 ASTM B337/338 In 6mm OD X 1mm WT And Different Sizes

Titanium Tubes to Grade 2 ASTM B337/338 in 6mm OD x 1mm WT and Different Sizes​

Introduction of Titanium Seamless Tube and Titanium Tube:

Titanium's exceptional properties make it highly valuable in various industries, especially aerospace, military, and medical sectors. Here are some key points related to titanium's applications and properties based on your input:

Titanium is renowned for its high strength-to-weight ratio, which is crucial in aerospace applications where weight reduction is critical for fuel efficiency and performance.

Titanium's ability to form a protective oxide layer makes it highly resistant to corrosion, including in harsh environments such as saltwater. This property is particularly beneficial in marine and aerospace applications where exposure to moisture and corrosive elements is common.

Titanium alloys can retain their strength and integrity at high temperatures, up to about 1000 degrees Fahrenheit (538 degrees Celsius). This makes titanium alloys suitable for components in engines, exhaust systems, and other high-temperature environments in aerospace and industrial applications.

Titanium is often alloyed with elements like aluminum, manganese, iron, and others to enhance specific properties such as strength, ductility, and corrosion resistance. For example, Ti-6Al-4V (Titanium alloyed with 6% Aluminum and 4% Vanadium) is a widely used titanium alloy known for its high strength and toughness.

Titanium tubes are extensively used in aerospace for airframe components, structural elements, hydraulic systems, and engine parts due to their combination of strength, light weight, and corrosion resistance. They are also employed in military applications such as missiles and spacecraft where reliability under extreme conditions is crucial.

ASTM B338 specifies seamless and welded titanium tubes across several grades, each tailored for specific applications based on their unique properties. Here's an overview of the grades mentioned:

ASTM B338 Grade 1 Titanium Seamless Tubes

Composition:

• Titanium (Ti): Balance
• Oxygen (O): 0.18% maximum

Properties:

• Grade 1 titanium is the most ductile and softest titanium alloy. It offers excellent corrosion resistance in highly oxidizing environments, moderate strength, and good formability.

Applications:

• Chemical processing equipment where high corrosion resistance is required.
• Heat exchangers and condensers.

ASTM B338 Grade 2 Titanium Seamless Tubes

Composition:

• Titanium (Ti): Balance
• Oxygen (O): 0.25% maximum

Properties:

• Grade 2 titanium is the most commonly used titanium alloy due to its excellent combination of strength, ductility, and weldability. It has good corrosion resistance in a wide range of environments.

Applications:

• Aerospace components such as aircraft hydraulic systems and airframes.
• Medical implants and surgical instruments.
• Marine applications due to resistance to seawater corrosion.

ASTM B338 Grade 5 Titanium Seamless Tubes (Ti-6Al-4V)

Composition:

• Titanium (Ti): Balance
• Aluminum (Al): 6%
• Vanadium (V): 4%

Properties:

• Grade 5 titanium is a high-strength alloy with good corrosion resistance. It offers excellent weldability and fabricability along with good fatigue resistance.

Applications:

• Aerospace and aircraft components, including critical structural parts and engine components.
• Sports equipment such as bicycle frames and golf clubs.
• Marine applications requiring high strength and corrosion resistance.

ASTM B338 Grade 9 Titanium Seamless Tubes (Ti-3Al-2.5V)

Composition:

• Titanium (Ti): Balance
• Aluminum (Al): 3%
• Vanadium (V): 2.5%

Properties:

• Grade 9 titanium offers good weldability and fabricability combined with moderate strength and excellent corrosion resistance. It is lighter than Grade 5 titanium.

Applications:

• Chemical processing equipment where moderate strength and excellent corrosion resistance are required.
• Marine applications including seawater desalination plants.
• Medical implants and prosthetics.

Seamless vs. Welded Tubes:

• Seamless Tubes: Manufactured without welding seams, seamless tubes are generally stronger and more reliable in high-pressure applications where leak resistance is critical.

• Welded Tubes: Fabricated by welding sheets or plates, welded tubes are suitable for less demanding applications and can be more cost-effective.

Benefits of Titanium Tube:

Titanium tubing stands out as a superior choice compared to competing materials like stainless steel and nickel alloys, particularly in high-performance applications such as aerospace and motorsport, where weight and strength are critical factors.

One of titanium's primary advantages is its significantly lower density, approximately 60% that of stainless steel and nickel alloys. This weight reduction is crucial in industries where minimizing weight enhances performance and efficiency. For example, in aerospace applications, lighter components contribute to fuel savings and improved maneuverability.

Moreover, titanium exhibits high tensile strength, allowing for the use of thinner walls without compromising structural integrity. This characteristic enables further weight reduction and material savings, which can translate into lower production costs over the long term.

In summary, titanium tubing's combination of low density and high strength makes it an ideal choice for demanding applications where both performance and efficiency are paramount. Its ability to reduce weight while maintaining durability and reliability underscores its value across a spectrum of industries, from aerospace to motorsport and beyond.

Titanium Tube Specifications:

Applications of Titanium Seamless Tubes:

Aerospace Industry:

• Airframes and Components: Titanium seamless tubes are used in aircraft structures, landing gear, and hydraulic systems due to their high strength-to-weight ratio, corrosion resistance, and ability to withstand high temperatures.

Chemical Processing:

• Corrosion-resistant Piping: Titanium tubes are utilized in chemical processing plants for transporting corrosive chemicals and fluids. They offer superior resistance to a wide range of corrosive environments, including acids and chlorides.

Medical and Healthcare:

• Implants and Surgical Instruments: Grade 2 titanium tubes are biocompatible and resistant to corrosion within the human body, making them ideal for medical implants such as bone screws, joint replacements, and dental implants.

Marine Industry:

• Seawater Applications: Titanium seamless tubes are used in desalination plants, shipbuilding, and offshore oil platforms due to their resistance to corrosion from seawater and saltwater environments.

Power Generation:

• Heat Exchangers: Titanium tubes are employed in power plants for heat exchangers and condensers. Their excellent thermal conductivity and corrosion resistance enhance efficiency and reliability.

Automotive Industry:

• Exhaust Systems: High-performance vehicles utilize titanium seamless tubes in exhaust systems due to their lightweight properties, high strength, and resistance to corrosion from exhaust gases.

Sports and Recreation:

• Bicycle Frames: Titanium tubes are favored in high-end bicycle frames for their strength, durability, and light weight, offering performance advantages over traditional materials.

Oil and Gas Industry:

• Subsea Applications: Titanium tubes are used in oil and gas exploration and production for subsea pipelines and components, where corrosion resistance and reliability are critical.

Electronics and Semiconductor Manufacturing:

• Vacuum Systems: Titanium tubes are used in vacuum environments and semiconductor manufacturing processes due to their clean surface, low outgassing properties, and resistance to contamination.

​Architecture and Construction:

• Structural Applications: Titanium tubes are occasionally used in architectural projects and structural applications where corrosion resistance and aesthetic appeal are desired.
