ANSI B16.34 Titanium Gr2 Gr5 PN16 Flange Ball Valve For Chemical And Power Industry DN10-DN200

ANSI B16.34 Titanium Gr2 Gr5 PN16 Flange Ball Valve For Chemical And Power Industry DN10-DN200

ANSI B16.34 Titanium Gr2 Gr5 PN16 Flange Ball Valve For Chemical And Power Industry DN10-DN200

Brand Name: LHTi
Model Number: Titanium Ball Valve
MOQ: 5 pieces
Price: negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 5000 Pieces Per Month
Detail Information
Product Description
Detail Information
Place of Origin:
Baoji, Shaanxi, China
Certification:
ISO9001,CE,etc
Model:
Ball Valve
Body Type:
2-Piece, 3-Piece
Actuator Type:
Manual, Pneumatic, Electric
Seat Material:
PTFE, RPTFE, PEEK
Grades:
TA2
Ball Material:
Titanium, Stainless Steel
Operation:
Manual, Gear Operated, Pneumatic, Electric
Operation Method:
Lever, Gear, Actuator
Packaging Details:
Plywood case or pallet, or as per your requirement
Supply Ability:
5000 Pieces Per Month
Highlight:

Power Industry Titanium Ball Valve

,

Chemical Industry Titanium Ball Valve

,

PN16 Titanium Ball Valve

Product Description
ANSI B16.34 Titanium Gr2 Gr5 PN16 Flange Ball Valve
Designed for chemical and power industry applications with nominal diameters from DN10 to DN200, these titanium ball valves offer exceptional corrosion resistance and high strength performance.
Product Overview
Titanium ball valves are engineered for specialized processes and demanding environmental conditions. Leveraging the superior corrosion resistance and high strength of titanium alloys, these valves are widely utilized across chemical processing, marine engineering, and aerospace industries.
Available Titanium Ball Valve Types

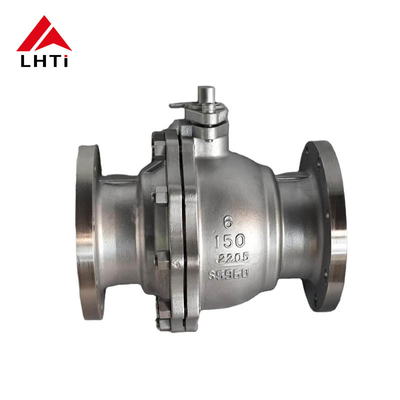

Floating Ball Valve
Features a straightforward design where the ball moves slightly under medium pressure to achieve sealing. Ideal for general fluid control applications under medium to low pressure and temperature conditions.
ANSI B16.34 Titanium Gr2 Gr5 PN16 Flange Ball Valve For Chemical And Power Industry DN10-DN200 0
Technical Specifications
Pressure Rating PN1.6-4.0Mpa Class150-300Lb
Nominal Diameter DN15-DN300 1/2"-12"
Drive Mode Handle, Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet Materials TA1, TA2, TA10, Gr2, Gr3
Ball Materials TA1, TA2, TA10, Gr2, Gr3
Stem Materials TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing Ring Materials PTFE, RPTFE, PPL, PEEK
Valve Models Q44F-16Ti, Q44F-25Ti, Q44F-40Ti, Q45F-16Ti, Q45F-25Ti, Q45F-40Ti, Q344F-16Ti, Q344F-25Ti, Q344F-40Ti, Q345F-16Ti, Q345F-25Ti, Q345F-40Ti, Q644F-16Ti, Q64F-25Ti, Q644F-40Ti, Q645F-16Ti, Q645F-25Ti, Q645F-40Ti, Q944F-16Ti, Q944F-25Ti, Q944F-40Ti, Q945F-16Ti, Q945F-25Ti, Q945F-40Ti, Q44F-150LB(Ti), Q44F-300LB(Ti), Q345F-150LB(Ti), Q645F-150LB(Ti), Q945F-150LB(Ti)
Design Standards GB/T12237, ASME B16.34
Face-to-Face Dimensions GB/T12221, ASME B16.10
Flange Connections HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Testing Standards JB/T9092, GB/T13927, API598
Trunnion Mounted Ball Valve
Features a fixed ball within the valve body with flow control achieved through stem rotation. This design provides reliable sealing and operational performance for high pressure and high temperature applications.
ANSI B16.34 Titanium Gr2 Gr5 PN16 Flange Ball Valve For Chemical And Power Industry DN10-DN200 1
V-Port Ball Valve
Incorporates a V-shaped ball design for enhanced regulation performance and precise fluid control, making it suitable for applications requiring accurate flow regulation.
Multi-Port Ball Valve
Features multiple inlet and outlet passages to enable complex fluid distribution and merging functions, ideal for sophisticated fluid control systems.
Operating Principle
Titanium ball valves control fluid flow through rotational movement of a sphere within the valve body, consisting of valve body, sphere, stem, and sealing components.
Open Position
When fully open, the sphere aligns parallel to the pipeline flow direction, allowing unrestricted fluid passage.
Closed Position
When fully closed, the sphere rotates perpendicular to the pipeline, effectively blocking fluid passage.
Intermediate Positions
Partial rotation of the stem allows the sphere to partially obstruct flow area, enabling precise flow regulation.
Sealing performance relies on tight contact between the sphere and valve seat, typically using elastic sealing components like O-rings or PTFE seals to ensure reliable leak prevention. Operation is achieved through stem rotation, with options for manual operation, electric actuators, or pneumatic actuators for remote control.
Industrial Applications
  • Chemical Industry: Excellent corrosion resistance makes these valves ideal for handling corrosive media including acid, alkali solutions, and oxides.
  • Petroleum and Natural Gas Industry: Critical for controlling flow and pressure in extraction, transportation, and processing operations to ensure system safety and stability.
  • Marine Engineering: Superior seawater corrosion resistance enables widespread use in subsea pipelines and offshore platform fluid control systems.
  • Aerospace Field: Lightweight and high-strength characteristics meet demanding requirements for hydraulic and fuel systems in aircraft applications.
  • Food and Pharmaceutical Industries: Non-toxic titanium materials prevent contamination, making these valves suitable for fluid control in processing and manufacturing operations.
