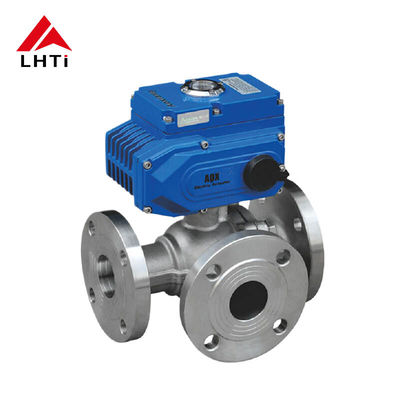

Electric Three Way Titanium Ball Valve with L-Type and T-Type Configurations for Quick-Connect Couplings

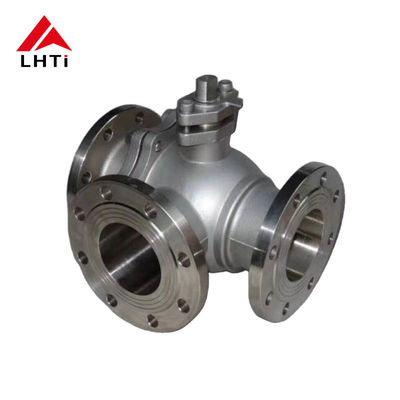

Three-Way Titanium Ball Valves: Available in L-Type (Q44F) and T-Type (Q45F) configurations for different flow control applications.

Designed for switching flow direction between two perpendicular channels, enabling medium path redirection.

Provides media distribution, confluence, and flow direction switching capabilities, allowing interconnection of three channels or any two-channel combinations.

• TA1 (Gr1): Pure titanium with excellent ductility and toughness, ideal for forming and welding.
• TA2 (Gr2): Pure titanium with balanced corrosion resistance and strength, easy to form and weld.
• TA9 (Gr7): Titanium with palladium addition for enhanced corrosion resistance in reducing environments.
• TA10 (Gr12): Titanium alloy with molybdenum and nickel for improved strength and heat resistance.
• TC4 (Gr5): High-strength titanium alloy with aluminum and vanadium, offering excellent corrosion resistance and low density.

• Flange Connection: Ideal for medium to high-pressure systems, offering reliable sealing and easy maintenance.
• Threaded Connection: Suitable for small diameter, low-pressure systems with simple installation.
• Welded Connection: Permanent solution for high-temperature, high-pressure, and corrosive media applications.
• Quick-Connect Couplings: Convenient for systems requiring frequent assembly and disassembly.
• Clamp Connection: Preferred for sanitary applications in food and pharmaceutical industries.
• Socket Connection: Provides good sealing and mechanical strength for small diameter systems.
