150 lb Titanium Ball Valves
, Two Piece Titanium Ball Valves
, Acetic Acid Flow Titanium Ball Valves

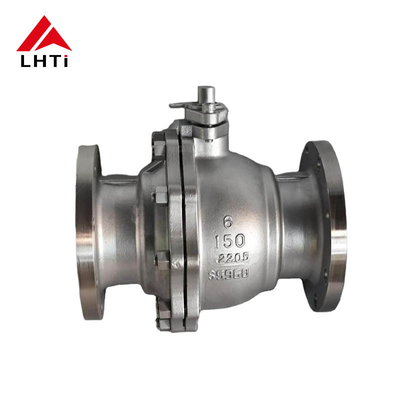

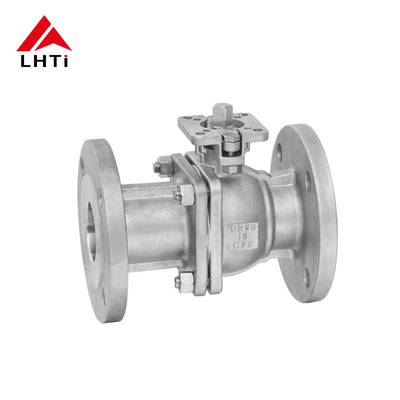

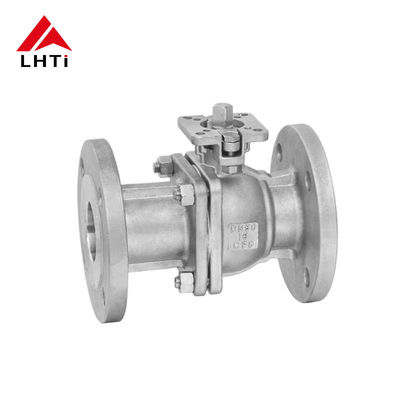

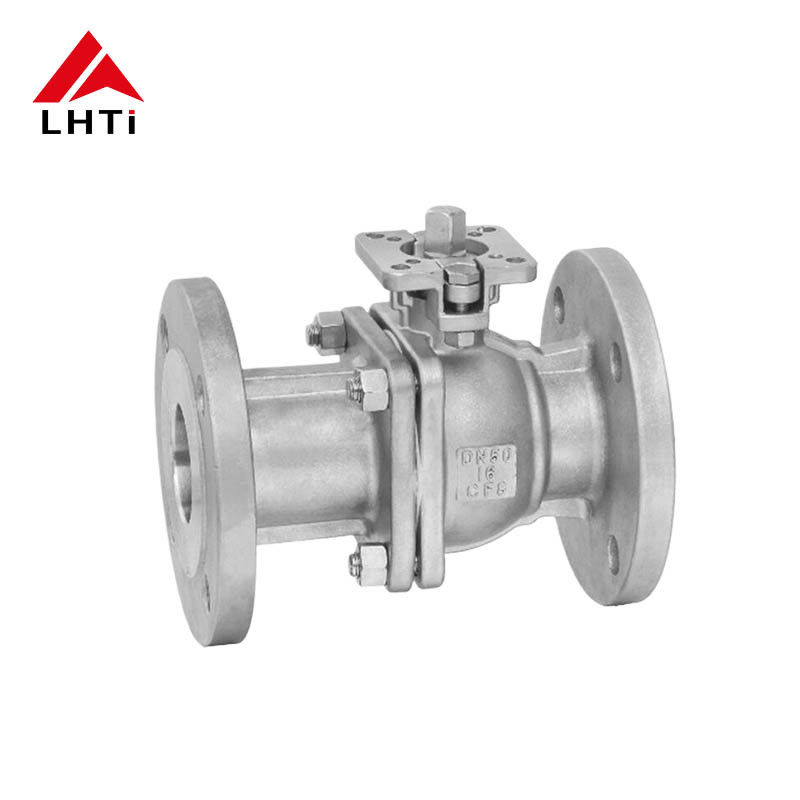

Titanium Stainless Steel Floating Ball Valves for Acetic Acid Flow Two Piece Ball Valves 150 lb
Titanium Stainless Steel Floating Ball Valves for Acetic Acid Flow Two Piece Ball Valves 150 lb
Product Introduction:
Special material ball valves encompass a variety of types, including two-way, three-way, and four-way ball valves. These valves come in both soft-seal and hard-seal configurations and are available in floating and trunnion-mounted designs. The materials used for these ball valves are selected for their exceptional performance in demanding environments and include titanium, nickel, zirconium, Hastelloy, Monel, Inconel, duplex stainless steel, 904L, Alloy 20, and C4 steel, among others. These high-performance materials ensure that the valves offer excellent corrosion resistance, mechanical strength, and reliability across a broad range of industrial applications.
Floating ball valves are a type of quarter-turn valve that uses a floating ball to control flow through it. They are commonly used in various industries, including chemical processing, where precise control and reliability are essential:
-
Material Compatibility: Ensure the valve is constructed from materials that are compatible with acetic acid to prevent corrosion and maintain performance over time.
-
Valve Design: Floating ball valves are suitable for moderate to high-pressure applications. The floating ball design allows for tight sealing, reducing the risk of leakage.
-
Pressure and Temperature Ratings: Verify that the valve meets the pressure and temperature requirements of your specific application to ensure safe and efficient operation.
-
Maintenance and Durability: Titanium are durable materials but may require specific maintenance procedures. Ensure that the valve design allows for easy maintenance and inspection.
| Dimensions for 2-Piece Flanged Ball Valves, 150 lb |
|
Size
|
d
|
D1
|
D2
|
D
|
L
|
b
|
n-φd1
|
Ra
|
Rb
|
A
|
B
|
KXK
|
H
|
V
|
|
1/2"
|
35
|
35
|
60.5
|
89
|
108
|
10.5
|
4-φ16
|
3
|
3
|
36
|
42
|
9
|
80
|
140
|
|
3/4"
|
43
|
43
|
70
|
98
|
117
|
10.5
|
4-φ16
|
3
|
3
|
36
|
42
|
9
|
85
|
140
|
|
1"
|
51
|
51
|
79.5
|
108
|
127
|
10.5
|
4-φ16
|
3
|
3.5
|
42
|
50
|
11
|
93
|
165
|
|
1-1/4"
|
64
|
64
|
89
|
115
|
140
|
11.2
|
4-φ16
|
3
|
3.5
|
42
|
50
|
11
|
104
|
165
|
|
1-1/2"
|
73
|
73
|
98.5
|
125
|
165
|
12.7
|
4-φ16
|
3.5
|
4.5
|
50
|
70
|
14
|
115
|
195
|
|
2"
|
92
|
92
|
120.5
|
150
|
178
|
14.3
|
4-φ16
|
3.5
|
4.5
|
50
|
70
|
14
|
125
|
195
|
|
2-1/2"
|
105
|
105
|
139.5
|
178
|
190
|
15.9
|
4-φ16
|
4.5
|
5.5
|
70
|
102
|
17
|
145
|
260
|
|
3"
|
127
|
127
|
152.5
|
190
|
203
|
17.5
|
4-φ16
|
4.5
|
5.5
|
70
|
102
|
17
|
152
|
260
|
|
4"
|
157
|
157
|
190.5
|
229
|
229
|
22.3
|
8-φ19
|
4.5
|
5.5
|
70
|
102
|
17
|
180
|
300
|
|
5"
|
186
|
186
|
216
|
254
|
356
|
22.3
|
8-φ19
|
5.5
|
6.5
|
102
|
125
|
22
|
210
|
600
|
|
6"
|
216
|
216
|
241.5
|
279
|
394
|
23.9
|
8-φ19
|
5.5
|
6.5
|
102
|
125
|
27
|
225
|
600
|
|
25.4mm = 1"
|
Features of Titanium Ball Valve:
The ball of a titanium ball valve is floating. Under the action of medium pressure, the ball can produce a certain displacement and press tightly against the sealing surface of the outlet end to ensure the sealing of the outlet end. The main advantage of the American Standard titanium ball valve is that it utilizes the excellent stability and self-passivation capability of the oxide film formed on titanium metal in highly corrosive environments, allowing it to resist strong corrosion in various harsh working conditions.
Low Flow Resistance: Ball valves have relatively low fluid resistance among all valve types. Even for reduced bore ball valves, the fluid resistance is quite small.
Good Sealing Performance: The sealing performance of American Standard titanium ball valves is excellent. The valve seat (sealing ring) is generally made of elastic materials such as PTFE (polytetrafluoroethylene), which ensures sealing easily. Moreover, the sealing force of the ball valve increases with the pressure of the medium.
Reliable Stem Sealing: The stem of a ball valve only rotates 90° during opening and closing operations, so the packing seal of the stem is not easily damaged. Additionally, the sealing force of the reverse seal of the stem increases with the pressure of the medium.
Product Technical Specifications:
| Product Technical Specifications: |
| Pressure Rating: |
Class 150-600Lb |
| Nominal Diameter: |
1/2" - 10" |
| Drive Mode: |
Handle, Worm Gear, Pneumatic, Hydraulic, Electric |
| Body, Bonnet: |
TA1,TA2,TA10,Gr2,Gr3 |
| Ball: |
TA1,TA2,TA10,Gr2,Gr3 |
| Stem: |
TA1,TA2,TA10,TC4,Gr2,Gr3,Gr5 |
| Sealing Ring: |
PTFE,RPTFE,PPL,PEEK |
| American Standard Titanium Ball Valve Model: |
Q41F- 150Lb(Ti),Q41F-300Lb(Ti),Q41F-600Lb(Ti),Q341F-150Lb(Ti),Q341F-300Lb(Ti), Q341F-600Lb(Ti),Q341F-150Lb(A),Q341F-300Lb(A),Q341F-600Lb(A) |
| Design Standards: |
GB/T12237,API6D,ASME B16.34 |
| Face-to-Face Dimensions: |
GB/T12221,API6D,ASME B16.10 |
| Flange Connections: |
HG,GB,JB,API,ANSI,ISO,BS,DIN,NF,JIS |
| Testing Standards: |
JB/T9092,GB/T13927,API6D,API598 |
Installation and Maintenance Tips:
Ensure Proper Alignment: During installation, make sure all ports are correctly aligned to prevent leaks and ensure efficient flow control.
Use Compatible Seals: Depending on the application, choose seals that are compatible with the fluids being handled and the operational environment.
Regular Inspection: Periodic checks for signs of wear or damage can help maintain optimal performance and extend the valve's lifespan.
Cleanliness: In applications such as pharmaceuticals and food processing, ensure the valve is cleaned regularly to maintain hygiene standards.
Common Applications of Titanium Ball Valve:
Titanium ball valves are widely used in different industries due to their excellent corrosion resistance, high strength, and low density:
Chemical Industry: Titanium ball valves are commonly used to handle strong acids, alkalis, and other highly corrosive chemicals, ensuring long-term stable operation in harsh environments. They are applied in chemical equipment, reactors, storage tanks, and piping systems.
Oil and Gas Industry: Titanium ball valves are used in offshore oil platforms and onshore oilfield extraction and processing equipment to resist corrosion from seawater and hydrogen sulfide gas. They are suitable for use in oil pipelines, natural gas liquefaction facilities, and refineries.
Pharmaceutical and Food Industry: Titanium material meets hygiene standards, and its strong corrosion resistance prevents reactions with pharmaceuticals or food, making it widely used in pharmaceutical and food processing equipment. They are commonly used in purified water systems, reactors, and mixing vessels.
Marine Engineering: Due to its excellent resistance to seawater corrosion, titanium ball valves are used in marine structures, seawater desalination equipment, and subsea pipelines.
Power Industry:
Titanium ball valves are used in power plants to handle high-temperature, high-pressure steam and corrosive cooling water. They are mainly applied in nuclear power plants, thermal power plants, and cogeneration equipment.
