Titanium Ball Valves Gr2 DN 15 Class 150-2500 Flanges Ball Valve For Water Treatments

Brand Name:	LHTi
Model Number:	Three Way Titanium Ball Valve
MOQ:	1 piece
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Model:

Ball Valve

Material:

Titanium Alloy Gr1 Gr2 TA1 TA2

Actuator Type:

Manual, Pneumatic, Electric

Suitable Media:

Water, Oil, Gas, Chemicals

Size:

1/2 Inch - 12 Inch

Operation:

Manual, Pneumatic, Electric

End Connection:

Flanged, Threaded, Welded

Face To Face Dimension:

ASME B16.10

Fire Safe Design:

API 607, API 6FA

Temperature Range:

-196°C To 600°C

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

DN 15 Titanium Ball Valve

Water Treatments Titanium Ball Valve

Class 150-2500 Titanium Ball Valve

Product Description

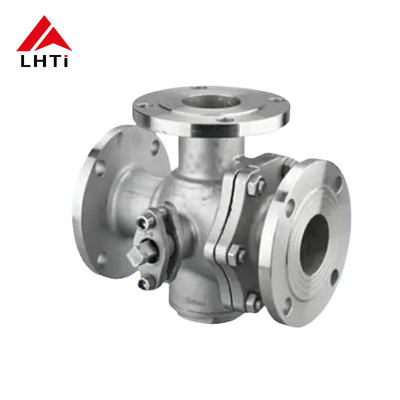

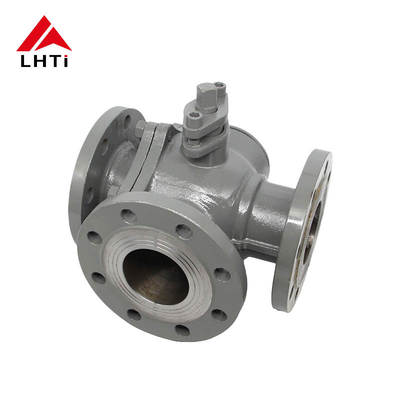

Titanium Ball Valves Gr2 DN 15 Class 150-2500 Flanges Ball Valve For Water Treatments

Three-way titanium ball valves are available in L-type (Q44F) and T-type (Q45F) configurations, each designed for specific flow control applications in demanding industrial environments.

L-Type (Q44F) Three-Way Ball Valve

The L-type three-way ball valve is engineered for switching flow direction between two perpendicular channels, providing efficient directional control for industrial processes.

T-Type (Q45F) Three-Way Ball Valve

The T-type three-way ball valve offers versatile media distribution, confluence, and flow direction switching capabilities, allowing interconnection of three channels or connection between any two channels for complex flow control systems.

Design & Testing Standards

Design Standard	BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B16.34 / API 6D
Inspection & Testing Standard	BS EN ISO 12266-(BS 6755 -1)
Flange To Flange Distance	Mfg. Standard
End Connection	Flanged End to ANSI B 16.5, Class 150 / 300 BS 10 Table D E F / H PN 6 / PN 10 / PN 16 PN 25 PN 40 DIN Standard / JIS Standard / IS Standard Screwed / Threaded End to ANSI B 1.20.1
Manufacturing Size Range	1/2"(DN15) to 12(DN 300) - Flanged Ends 1/2"(DN15) to 3(DN 80) - Screwed Ends
Pressure Rating of Valve	PN 10 / PN 16 / PN 25 / PN 40
Valve Operation	Manual Hand Lever / Worm-Gear Actuator Operated Pneumatic Rotary Quarter Turn Actuator / Electrical Actuator

Key Features

Corrosion Resistance: Exceptional resistance to seawater, chlorine, and aggressive chemicals for harsh environment applications
High Strength-to-Weight Ratio: Lightweight titanium construction with high strength for easier handling and installation
Temperature Tolerance: Reliable performance under high-temperature industrial conditions
Durability: Robust titanium construction ensures long service life with minimal maintenance requirements
Biocompatibility: Suitable for pharmaceutical and biological applications requiring material compatibility

Technical Specifications

Pressure Rating	Class 150-600Lb
Nominal Diameter	1/2" - 10"
Drive Mode	Handle, Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet	TA1, TA2, TA10, Gr2, Gr3
Ball	TA1, TA2, TA10, Gr2, Gr3
Stem	TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing Ring	PTFE, RPTFE, PPL, PEEK
American Standard Titanium Ball Valve Model	Q41F-150Lb(Ti), Q41F-300Lb(Ti), Q41F-600Lb(Ti), Q341F-150Lb(Ti), Q341F-300Lb(Ti), Q341F-600Lb(Ti), Q341F-150Lb(A), Q341F-300Lb(A), Q341F-600Lb(A)
Design Standards	GB/T12237, API6D, ASME B16.34
Face-to-Face Dimensions	GB/T12221, API6D, ASME B16.10
Flange Connections	HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Testing Standards	JB/T9092, GB/T13927, API6D, API598

Installation and Maintenance

Ensure Proper Alignment: Correct port alignment during installation prevents leaks and ensures efficient flow control
Use Compatible Seals: Select seals compatible with handled fluids and operational environment requirements
Regular Inspection: Periodic checks for wear or damage maintain optimal performance and extend valve lifespan
Cleanliness: Regular cleaning maintains hygiene standards for pharmaceutical and food processing applications

Industrial Applications

Chemical Industry: Handling corrosive media including acid, alkali solutions, and oxides in chemical production processes
Petroleum and Natural Gas Industry: Controlling flow and pressure in extraction, transportation, and processing systems
Marine Engineering: Fluid control systems in subsea pipelines and offshore platforms with excellent seawater corrosion resistance
Aerospace Field: Hydraulic and fuel systems requiring lightweight, high-strength components for aircraft applications
Food and Pharmaceutical Industries: Fluid control systems where non-toxic, non-contaminating materials are essential
