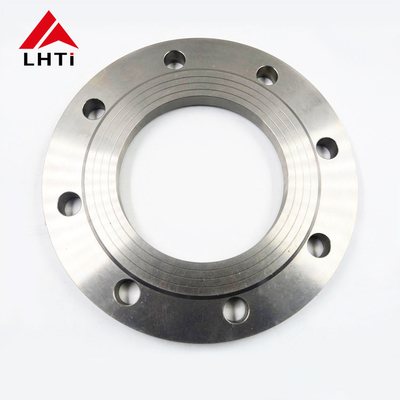

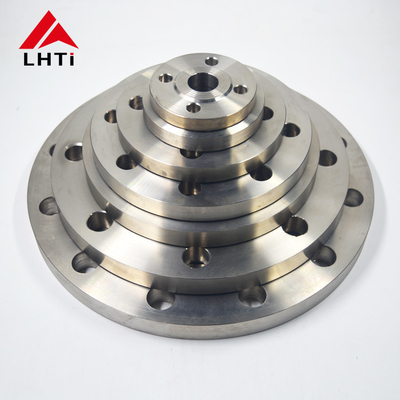

DIN 2503 Titanium Blind Plate Flange PN 25 Gr2 Gr5 Pipe Plate Flange for Industrial Applications

2. Grades of DIN 2503 Titanium Plate Flange

Titanium Grade 2:

• Composition: Titanium Grade 2, also known as commercially pure titanium (CP Ti), is composed of 99.2% titanium, with the remaining 0.8% consisting primarily of iron and oxygen.
• Properties:
  • Strength: It has good strength, comparable to some low-alloy steels.
  • Corrosion Resistance: Grade 2 titanium exhibits excellent corrosion resistance, especially in environments where chlorides are present.
  • Fabricability: It is readily weldable and formable, making it suitable for various manufacturing processes.
• Applications:
  • Chemical processing equipment
  • Marine and offshore applications
  • Medical implants and surgical instruments
  • Aerospace components where weight savings and corrosion resistance are critical

Titanium Grade 5 (Ti-6Al-4V):

• Composition: Titanium Grade 5 is an alloy composed of 90% titanium, 6% aluminum, and 4% vanadium.
• Properties:
  • Strength: Grade 5 titanium is significantly stronger than Grade 2, making it ideal for high-strength applications.
  • Corrosion Resistance: It offers good corrosion resistance, although not as high as Grade 2 in some environments.
  • Heat Resistance: Grade 5 maintains excellent strength at elevated temperatures.
  • Lightweight: Like all titanium alloys, Grade 5 is lightweight compared to many other metals.
• Applications:
  • Aerospace components (aircraft structural components, engine parts)
  • Automotive racing (engine components, exhaust systems)
  • Biomedical implants (orthopedic implants, dental implants)
  • Marine components
  • Sports equipment (bicycle frames, golf clubs)

3. Specifications for DIN2503 PN25 Titanium Plate Flange

4. Why We Choose Titanium Plate Flanges in the Applications?

Titanium plate flanges are chosen in various industries primarily due to their unique properties and advantages that make them suitable for specific applications where other materials may not perform as effectively.

Titanium exhibits exceptional corrosion resistance, especially in aggressive environments such as seawater, chemical processing, and marine applications. This resistance to corrosion helps extend the lifespan of equipment and reduces maintenance costs.

Titanium has a high strength-to-weight ratio, making it significantly stronger than many other metals such as stainless steel or aluminum alloys while being much lighter. This property is crucial in aerospace, marine, and automotive industries where weight savings are critical.

Titanium is biocompatible and non-toxic, making it ideal for medical implants such as orthopedic implants and surgical instruments. It integrates well with the human body and minimizes the risk of adverse reactions.

​Titanium retains its mechanical properties at elevated temperatures, making it suitable for applications where thermal stability is required. This includes aerospace components and industrial processes involving high heat.

​Titanium has a low coefficient of thermal expansion, similar to stainless steel. This property helps maintain dimensional stability in various temperature conditions, ensuring reliability in critical applications.

​Titanium is known for its durability and long service life, even in harsh operating conditions. This makes it a cost-effective choice over the long term, despite its higher initial cost compared to some other materials.

Titanium plate flanges are preferred in industries where their unique combination of properties is essential, such as aerospace, chemical processing, desalination plants, and offshore oil rigs.

5. Applications of DIN 2503 Titanium Plate Flange

• Pipeline Construction: Used to join sections of pipelines, ensuring secure and leak-free connections during fluid transport.
• Refineries and Petrochemical Plants: Installed in processing units for connecting vessels, reactors, and heat exchangers, where resistance to corrosive chemicals is essential.
• Offshore Platforms: Employed in offshore drilling rigs and production platforms to withstand marine environments and harsh weather conditions.
• Gas Processing Facilities: Utilized in compressors, pumps, and valves to maintain operational integrity and safety.
