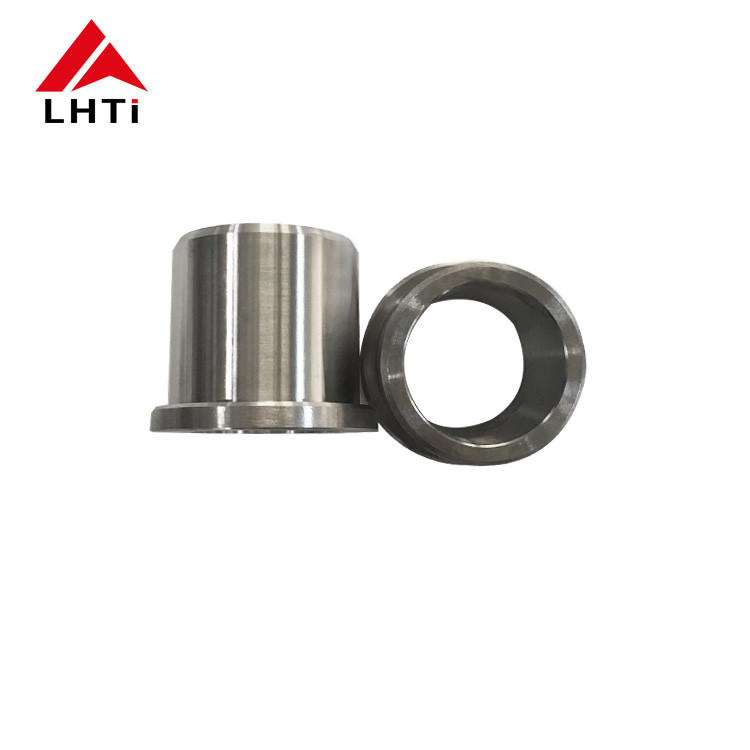

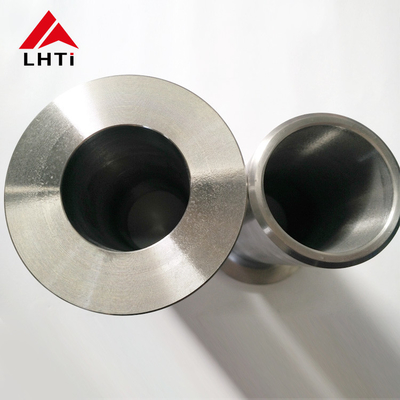

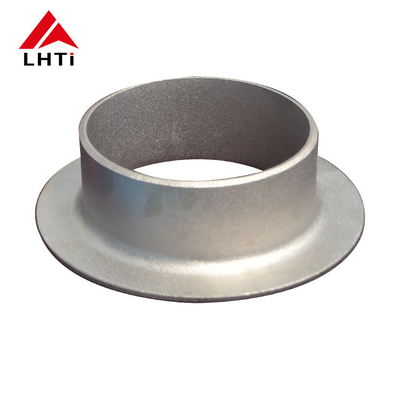

Welding GR2 Titanium Stub End ASTM B363 For Chemical Industry

Welding GR2 Titanium Stub End ASTM B363 For Chemical Industry

Brand Name: LHTi
Model Number: Titanium elbow
MOQ: 5 piece
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 50000 pcs per month
Detail Information
Place of Origin:
China
Certification:
ISO9001:2015; TUV; BV; SGS
Model Number:
High Qulity ASME B16.9 Titanium Grade 2 Stub Ends
Material:
Titanium
Connection:
Welding
Shape:
Reducing
KW:
Corrosion Resistance
Application:
Chemical Industry
Packaging Details:
Plastic Inside And The Good Wooden Export Case Outside, Suitable For Both Air And Sea Delivery
Packaging Details:
Plastic bag with laber, outside plastic box, then plywod box
Supply Ability:
50000 pcs per month
Highlight:

Grade 2 Titanium Stub End

,

Chemical Industry Titanium Stub End

,

Reducing Titanium Tube Stub End

Product Description

GR2 Titanium Stub End ASTM B363 For Chemical Industry



Titanium Stub Ends can only be welded with titanium pipe, argon arc welding and welding wire, which is made of titanium wire similar to titanium flanging, and can not be directly welded with stainless steel pipe or other materials. Do not use in high pressure pipeline environment.



1. Product Information



Grade: GR1 GR2 GR7 GR9 GR12

Standard: ASTM B363, ASME SB363, ASME B16.9, ANSI B16.9, JIS, ISO, BS, DN etc.

Application: Chemical industry

Type: 45 degree elbow, 90 degree elbow, 180 degree elbow

Type 2: Long radius, Short radius

Technique: Seamless, Welded

Outer Diameter: 1/2"-48"(DN15-DN1200)

Wall Thickness: Sch5s-Sch160s

Specifications:



aterial

Pure titanium(CP) or Titanium alloy Gr1, GR2, GR3, GR4, GR7, GR9, GR12

Other material:Zirconium , Nickle etc

Type short pattern and long pattern.
Specifications Outer diameter DN15-1200 NPS 1/2"-48"Wall thickness 1-15MM Sch5s-Sch160s
Standard ASTM B363, ASME B16.9, ASME SB363, ANSI B16.9
Technique Welded, Forged, Rolled, Seamless
Surface finished Sand blasting, Polishing, Pickling
Quality control 100% of the X-ray detection (RT)100% of Surface penetrant inspection (PT)



Application Structure Pipe, Gas Pipe, Hydraulic Pipe, Chemical Fertilizer Pipe
Other products Caps, flingers, socket welding fittings, flange, tee, reducer, valves etc available



Specifications
Nominal diameter DN Diameter of mm Grade
3/8 17.1 Gr1/Gr2/Gr7/gr12
1/2 21.3 Gr1/Gr2/Gr7/gr12
1 33.4 Gr1/Gr2/Gr7/gr12
1 1/4 42.2 Gr1/Gr2/Gr7/gr12
1 1/2 73.0 Gr1/Gr2/Gr7/gr12
2 60.3 Gr1/Gr2/Gr7/gr12
2 1/2 73.0 Gr1/Gr2/Gr7/gr12
3 88.9 Gr1/Gr2/Gr7/gr12
3 1/2 101.6 Gr1/Gr2/Gr7/gr12
4 114.3 Gr1/Gr2/Gr7/gr12
5 141.3 Gr1/Gr2/Gr7/gr12
6 168.3 Gr1/Gr2/Gr7/gr12
8 219.1 Gr1/Gr2/Gr7/gr12
10 273.1 Gr1/Gr2/Gr7/gr12
12 323.9 Gr1/Gr2/Gr7/gr12
14 355.6 Gr1/Gr2/Gr7/gr12
16 406.4 Gr1/Gr2/Gr7/gr12
18 457.2 Gr1/Gr2/Gr7/gr12
... ... Gr1/Gr2/Gr7/gr12
Note: Specific thickness and diameter can also be customized.
