Product Details
Place of Origin: Baoji Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-12
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US dollar $25/kg-US dollar $150/kg
Packaging Details: standard export plywood case
Delivery Time: 5-10 days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Grade: |
Gr1,Gr2,Gr5,Gr7,Gr12 Etc |
Technique: |
Forged,rolling |
Application: |
Chemical Industrial Or Aeronautics |
Powder Or Not: |
Not Powder |
Ti Content (%): |
99.0%min |
Dimensions: |
50-600mm Or As Your Requirment |
Material: |
Titanium |
Standard: |
ASTM B381/AMS4928 Etc |
Surface: |
Bright Surface |
Shape: |
Round Ring |
Density: |
4.51/m^3 |
Key Words: |
Forged Titanium Ring |
Grade: |
Gr1,Gr2,Gr5,Gr7,Gr12 Etc |
Technique: |
Forged,rolling |
Application: |
Chemical Industrial Or Aeronautics |
Powder Or Not: |
Not Powder |
Ti Content (%): |
99.0%min |
Dimensions: |
50-600mm Or As Your Requirment |
Material: |
Titanium |
Standard: |
ASTM B381/AMS4928 Etc |
Surface: |
Bright Surface |
Shape: |
Round Ring |
Density: |
4.51/m^3 |
Key Words: |
Forged Titanium Ring |
Gr2 Forged Pure Titanium Ring
Titanium Alloy Forged Rings can be widely used in the automotive industry due to its lightweight structure and good corrosion resistance. It has a metallic luster and is malleable. Its main advantages include low density, high mechanical strength and easy processing, meanwhile, it has good corrosion resistance and is not affected by the atmosphere and seawater.
| Material | Pure titanium and titanium alloy |
| Grade | Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr12 etc |
| Size | OD:300-1500mm, ID:200-1400mm; H:20-500mm |
| Quality control | Ultrasonic Testing& Material Test Report& Visual inspection |
| Pressure rating | 0.6~32Mp |
| (DIN)PN6, PN10, PN16, PN25 though PN250 | |
| (ASNI)CL150, CL300, CL600, CL900, CL1500 | |
| Working temperature | -60℃~250℃ |
| Flange surface | FF, RF, TG, RJ etc |
| Value Added Services | Customized |
| Status | Hot forging, Annealed (M) |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

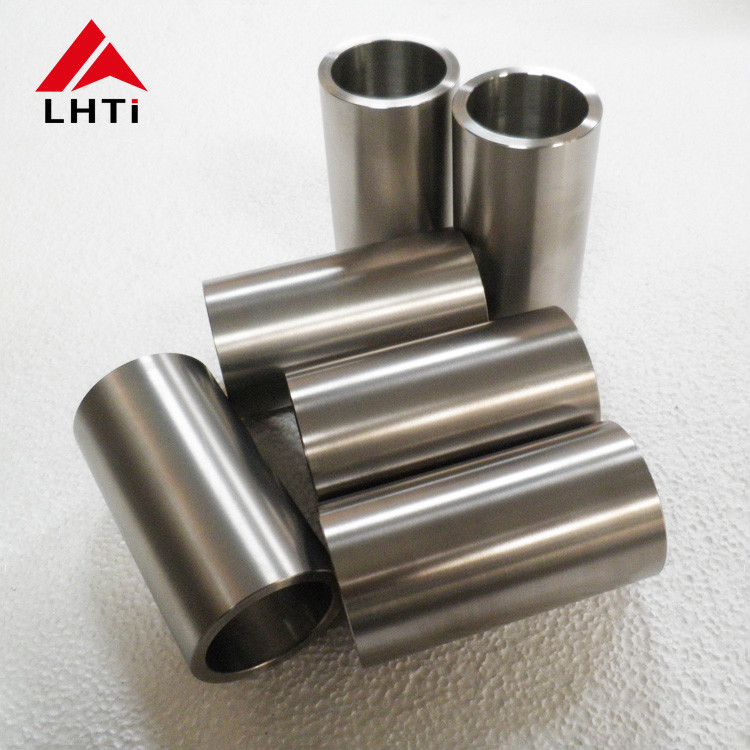

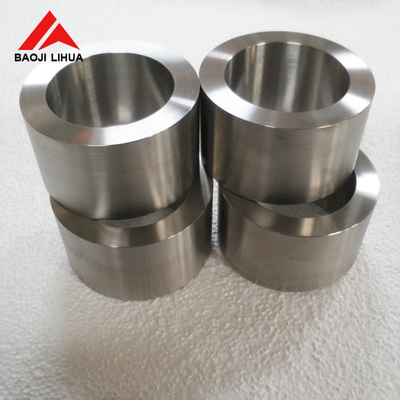

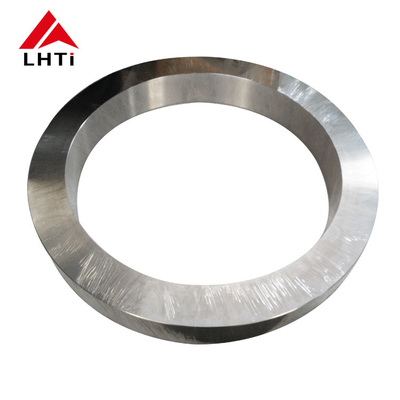

Product picture:
