Home > products > Titanium Ring > ASTM B381 Titanium Magnetic Ring Gr7 TiPd Titanium Alloy Forged Ring

ASTM B381 Titanium Magnetic Ring Gr7 TiPd Titanium Alloy Forged Ring

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015; TUV; SGS; BV

Model Number: Titanium ring

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: USD12.00-35.00 per kg

Packaging Details: Plywood box with soft foam for additional protection against any shipping-induced trauma

Delivery Time: 12-25 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal

Supply Ability: 200000 kg per month

Get Best Price
Highlight:

ASTM B381 Titanium Magnetic Ring

,

TiPd Titanium Alloy Forged Ring

,

Gr7 Titanium Magnetic Ring

Standard:
ASTM B381
Production Process:
Hot Rolled/Annealed
Wall Thickness:
0.5mm-25mm
Application:
Chemical Engineering & Petrochemical Technology
Characteristic 1:
Excellent Corrosion Resistance
Surface:
Bright Polished
Standard:
ASTM B381
Production Process:
Hot Rolled/Annealed
Wall Thickness:
0.5mm-25mm
Application:
Chemical Engineering & Petrochemical Technology
Characteristic 1:
Excellent Corrosion Resistance
Surface:
Bright Polished
ASTM B381 Titanium Magnetic Ring Gr7 TiPd Titanium Alloy Forged Ring

Titanium Magnetic Ring ASTM B381 Gr7 TiPd Titanium Alloy Forged Ring



Production process: the forging die forging - rotary swaging forging - welding.
Surface treatment: machine ,chamfering.
Areas of application: aerospace, aerospace, military industry, light industry, chemical industry, textile, medical and petrochemical and other fields.



Chemical requirements
  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal



Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
  KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18

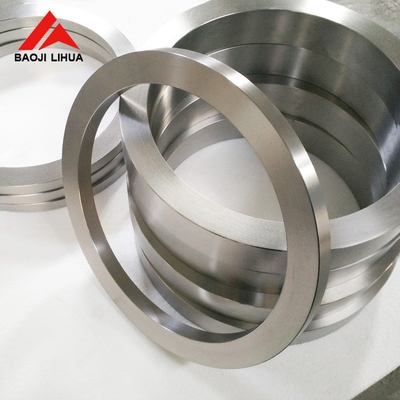

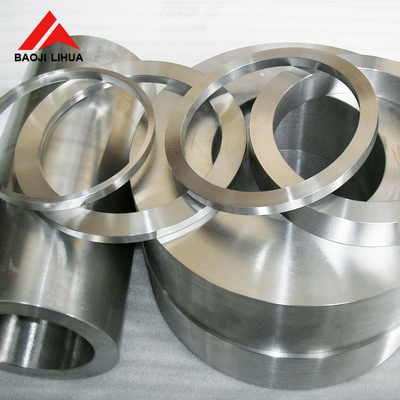

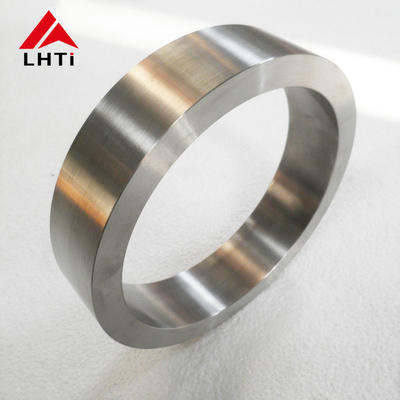

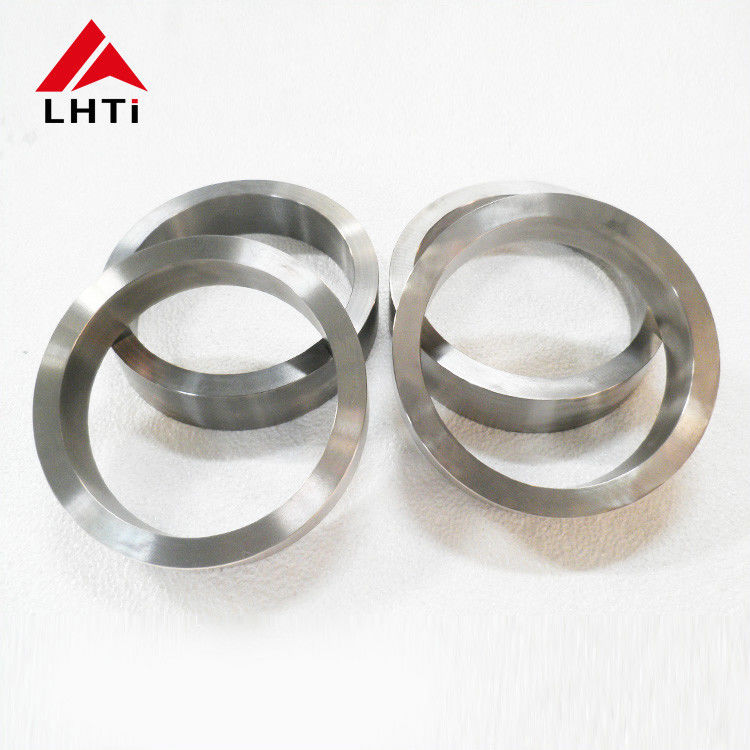

Product picture:



ASTM B381 Titanium Magnetic Ring Gr7 TiPd Titanium Alloy Forged Ring 0ASTM B381 Titanium Magnetic Ring Gr7 TiPd Titanium Alloy Forged Ring 1ASTM B381 Titanium Magnetic Ring Gr7 TiPd Titanium Alloy Forged Ring 2ASTM B381 Titanium Magnetic Ring Gr7 TiPd Titanium Alloy Forged Ring 3ASTM B381 Titanium Magnetic Ring Gr7 TiPd Titanium Alloy Forged Ring 4ASTM B381 Titanium Magnetic Ring Gr7 TiPd Titanium Alloy Forged Ring 5ASTM B381 Titanium Magnetic Ring Gr7 TiPd Titanium Alloy Forged Ring 6ASTM B381 Titanium Magnetic Ring Gr7 TiPd Titanium Alloy Forged Ring 7ASTM B381 Titanium Magnetic Ring Gr7 TiPd Titanium Alloy Forged Ring 8ASTM B381 Titanium Magnetic Ring Gr7 TiPd Titanium Alloy Forged Ring 9
