Product Details
Place of Origin: China
Brand Name: LH-Ti
Certification: ISO 9001: 2015
Model Number: BL
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: $45-$159 / PC
Packaging Details: Carton box/plywood case
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 10000 pcs per month
Porduct Name: |
Customized Forging CNC Gr2 Gr5 Gr7 Gr12 Titanium Blind Flange BL 6" CL 150 |
Material: |
Grade 2 Titanium |
Standard: |
ASTM / ANSI B16.5 |
Flange Type: |
Blind |
Size: |
1/2''~80" |
Pressure: |
Class 150 Class 300 Class 600 Class 900 Class 1500 |
MOQ: |
1PC |
Quality Test: |
Ultrasonic Testing |
Technique: |
Forged, CNC Machined |
Porduct Name: |
Customized Forging CNC Gr2 Gr5 Gr7 Gr12 Titanium Blind Flange BL 6" CL 150 |
Material: |
Grade 2 Titanium |
Standard: |
ASTM / ANSI B16.5 |
Flange Type: |
Blind |
Size: |
1/2''~80" |
Pressure: |
Class 150 Class 300 Class 600 Class 900 Class 1500 |
MOQ: |
1PC |
Quality Test: |
Ultrasonic Testing |
Technique: |
Forged, CNC Machined |
A blind flange is a solid disk used to block off a pipeline or to create a stop. It is machined in the same manner as a regular flange with the mounting holes around the perimeter and the gasket sealing rings machined into the mating surface. The difference is that a blind flange has no opening to allow fluid to pass through. The blind flange can be inserted between two open flanges and used to block off the flow of liquid through a pipeline
Product name: Titanium blind flange,Binld titanium flange,Grade 2 titanium flange,Titanium Flange Manufacturers,Titanium Flange factory
Size: 1'' and 1/2'' ~ 80' (DN40-DN2500)
Standard:ANSI, ASME
Material :Gr2 titanium
Type: Blind flange
Connection type: RF
MOQ: 1 piece

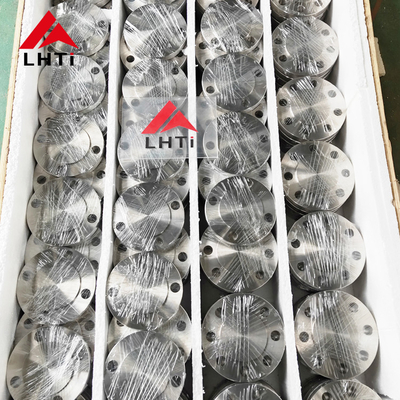

Package: Standard export packaging, inside foam film and pearl cotton protection, outside fumigation-free plywood case.
Application:Usually used in constructions,petroleum, chemical industry, power, ship building, paper making, metallurgy, water supply and sewage work, light and heavy industry, plumbing and electric etc.
Chemical composition (Wt%)
ASTM No. | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min)
ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
ksi | Mpa | ksi | Mpa | |||
Grade 2 | Unalloyed Ti ("Pure") 50A -CP2 | 64 | 440 | 46 | 320 | 18 |

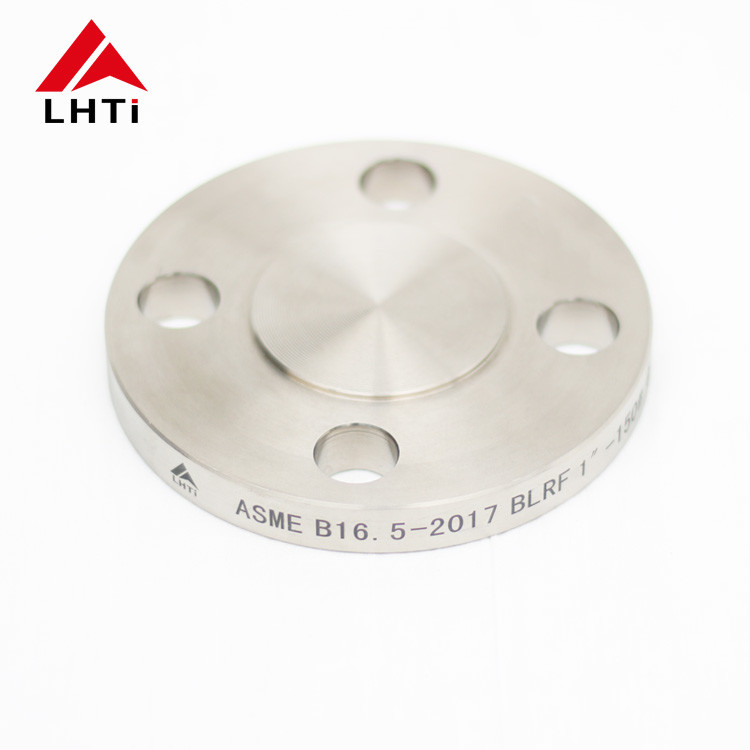

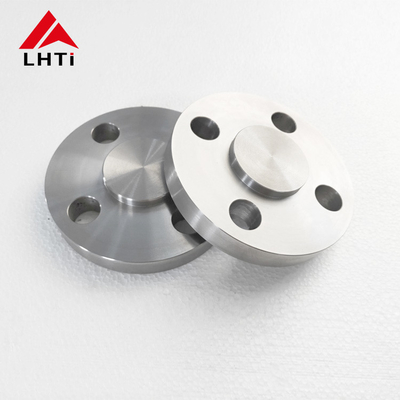

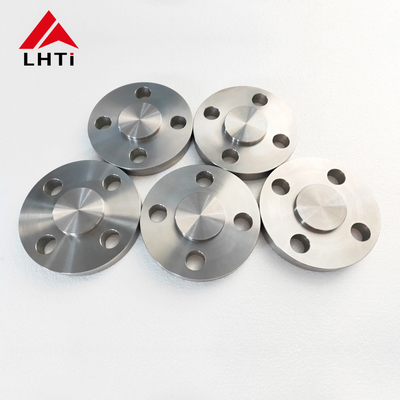

Detailed images of titanium blind flanges:
