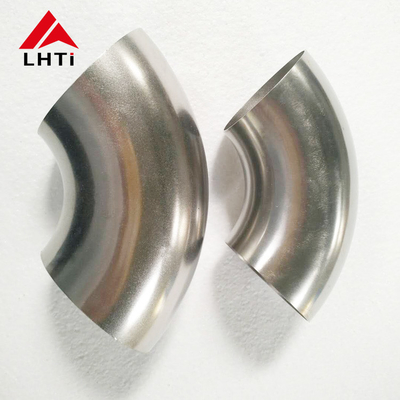

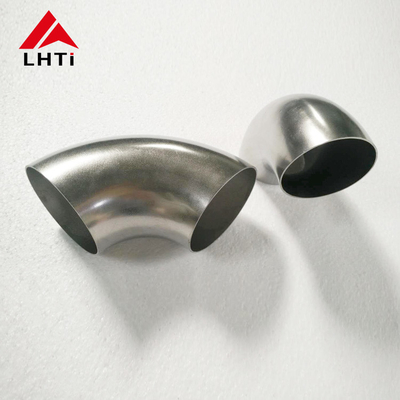

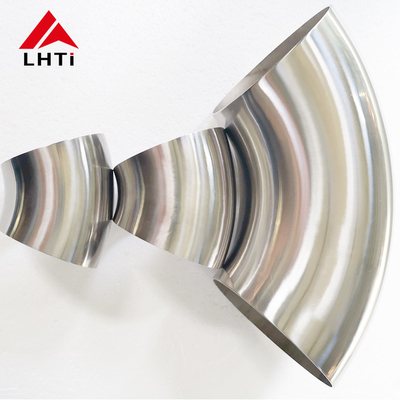

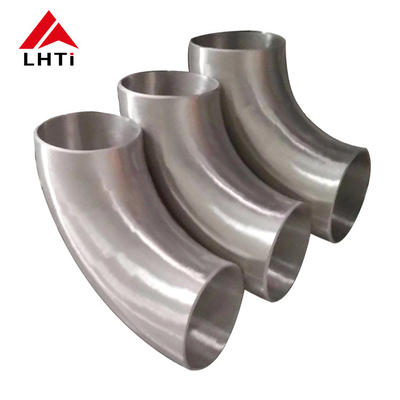

Pickling Surface Pure Titanium Elbow 45 Degree / 90 Degree Titanium Pipe Elbow

Brand Name:	LHTI
Model Number:	LH-145
MOQ:	5 piece
Price:	US dollar $10/pc-US dollar $60/pc
Payment Terms:	L/C, D/P, T/T, Western Union,Paypal etc
Supply Ability:	10000 piece per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji Shaanxi China

Certification:

ISO9001

Material:

Titanium

Grade:

Gr1,Gr2

Purity:

99.5%min

Degree:

45 Degree /90 Degree

Radius:

Long Radius

Key Words:

Titanium Elbow

Keyword:

Titanium Bends

Keywords:

Titanium Fittings Pipe

Package:

Plwood Case

Surface:

Pickling Surface/Sandblasting Surface Etc

Supply Ability:

10000 piece per month

Highlight:

90 Degree Pure Titanium Elbow

45 Degree Titanium Pipe Elbow

Pickling Surface Pure Titanium Elbow

Product Description

Pure Titanium Elbow , 45 Deg 90 Deg Titanium Pipe

Titanium tube dimensional tolerances conform to ASME B16.9. Titanium fitting wall thicknesses conform with standard schedule 10S and 40S ASME B36.19M wall pipe.

1.More details

Pickling Surface Pure Titanium Elbow 45 Degree / 90 Degree Titanium Pipe Elbow 0

TItanium elbow
Material	Titanium(Gr1,Gr2,Gr7,Gr12)
Standard	Ansi/asme b16.9, b16.28
Degree	30D,45D,90D,120D,180D
Wall thickness	Sch5 s-Sch160 s(1-15mm)
Technical	Pressing,welded, seamless
Inspection for welding lines	X-Ray Tests or Dye Penetrate Tests
Material Test Report	EN10204.3.1,Chemical Composion And Physical Properties
Product Marking	All products are marked by laser after they are finished
Application	Petroleum, Chemical Industry, Chloralkali, Metallurgy, Carbonization, Refrigeration, Light Industry, Salt Industry, Electric Power,etc.
Certifcate	Germany TUV Assessment, ISO9001:2008
Payment	T/T in advance, L/C at sight,Weastern Union, Paypal, Escrow,
package	Plastic bag first,then form inside, plywood case outside

Pickling Surface Pure Titanium Elbow 45 Degree / 90 Degree Titanium Pipe Elbow 1

45° Grade 2 Titanium Elbows Data

						Schedule 10S Light N.P.S.						Schedule 40S Standard N.P.S.
Nominal Pipe Size		Outside Diameter		Center to Face		Wall Thickness		Inside Diameter		Approx. Wt in Lbs./Kgs.		Wall Thickness		Inside Diameter		Approx. Wt in Lbs./Kgs.
in	mm	in	mm	in	mm	in	mm	in	mm	lb	kg	in	mm	in	mm	lb	kg
1/2″	15	0.84	21.34	0.63	15.88	0.08	2.11	0.67	17.12	0.04	0.02	0.11	2.77	0.62	15.80	0.05	0.02
3/4″	20	1.05	26.67	0.44	11.11	0.08	2.11	0.88	22.45	0.04	0.02	0.11	2.87	0.82	20.93	0.05	0.02
1″	25	1.32	33.40	0.88	22.23	0.11	2.77	1.10	27.86	0.11	0.05	0.13	3.38	1.05	26.64	0.14	0.06
1-1/4″	32	1.66	42.16	1.00	25.40	0.11	2.77	1.44	36.63	0.14	0.06	0.14	3.56	1.38	35.05	0.22	0.10
1-1/2″	40	1.90	48.26	1.13	28.58	0.11	2.77	1.68	42.72	0.22	0.10	0.15	3.68	1.61	40.89	0.28	0.13
2″	50	2.38	60.33	1.38	34.93	0.11	2.77	2.16	54.79	0.32	0.15	0.15	3.91	2.07	52.50	0.50	0.23
2-1/2″	65	2.88	73.03	1.75	44.45	0.12	3.05	2.64	66.93	0.61	0.28	0.20	5.16	2.47	62.71	0.97	0.44
3″	80	3.50	88.90	2.00	50.80	0.12	3.05	3.26	82.80	0.79	0.36	0.22	5.49	3.07	77.93	1.36	0.62
3-1/2″	90	4.00	101.60	2.25	57.15	0.12	3.05	3.76	95.50	0.95	0.43	0.23	5.74	3.55	90.12	1.79	0.81
4″	100	4.50	114.30	2.50	63.50	0.12	3.05	4.26	108.20	1.36	0.62	0.24	6.02	4.03	102.26	2.63	1.19
5″	125	5.56	141.30	3.13	79.38	0.13	3.40	5.30	134.49	2.29	1.04	0.26	6.55	5.05	128.19	4.33	1.96
6″	150	6.63	168.28	3.75	95.25	0.13	3.40	6.36	161.47	3.43	1.56	0.28	7.11	6.07	154.05	6.86	3.11
8″	200	8.63	219.08	5.00	127.00	0.15	3.76	8.33	211.56	6.75	3.06	0.32	8.18	7.98	202.72	13.50	6.12
10″	250	10.75	273.05	6.25	158.75	0.17	4.19	10.42	264.67	12.50	5.67	0.37	9.27	10.02	254.51	24.50	11.11
12″	300	12.75	323.85	7.50	190.50	0.18	4.57	12.39	314.71	17.00	7.71	0.38	9.53	12.00	304.80	37.50	17.01
14″	350	14.00	355.60	8.75	222.25	0.19	4.78	13.62	346.05	23.00	10.43	0.38	9.53	13.25	336.55	44.50	20.18
16″	400	16.00	406.40	10.00	254.00	0.19	4.78	15.62	396.85	30.00	13.61	0.38	9.53	15.25	387.35	58.00	26.30
18″	450	18.00	457.20	11.25	285.75	0.19	4.78	17.62	447.65	38.00	17.23	0.38	9.53	17.25	438.15	75.00	34.01
20″	500	20.00	508.00	12.50	317.50	0.22	5.54	19.56	496.93	63.00	28.57	0.38	9.53	19.25	488.95	94.00	42.63
24″	600	24.00	609.60	15.00	381.00	0.25	6.35	23.50	596.90	89.00	40.36	0.38	9.53	23.25	590.55	133.00	60.32

90° Grade 2 Titanium Elbows Data

						Schedule 10S Light N.P.S.						Schedule 40S Standard N.P.S.
Nominal Pipe Size		Outside Diameter		Center to Face		Inside Diameter		Wall Thickness		Approx. Wt. in Lbs./Kgs.		Inside Diameter		Wall Thickness		Approx. Wt in Lbs./Kgs.
in	mm	in	mm	in	mm	in	mm	in	mm	lb	kg	in	mm	in	mm	lb	kg
1/2″	15	0.84	21.34	1.50	38.10	0.67	17.12	0.08	2.11	0.08	0.04	0.62	15.80	0.11	2.77	0.10	0.05
3/4″	20	1.05	26.67	1.13	28.58	0.88	22.45	0.08	2.11	0.09	0.04	0.82	20.93	0.11	2.87	0.11	0.05
1″	25	1.32	33.40	1.50	38.10	1.10	27.86	0.11	2.77	0.17	0.08	1.05	26.64	0.13	3.38	0.20	0.09
1-1/4″	32	1.66	42.16	1.88	47.63	1.44	36.63	0.11	2.77	0.29	0.13	1.38	35.05	0.14	3.56	0.32	0.15
1-1/2″	40	1.90	48.26	2.25	57.15	1.68	42.72	0.11	2.77	0.39	0.18	1.61	40.89	0.15	3.68	0.50	0.23
2″	50	2.38	60.33	3.00	76.20	2.16	54.79	0.11	2.77	0.65	0.29	2.07	52.50	0.15	3.91	0.89	0.40
2-1/2″	65	2.88	73.03	3.75	95.25	2.64	66.93	0.12	3.05	1.08	0.49	2.47	62.71	0.20	5.16	1.72	0.78
3″	80	3.50	88.90	4.50	114.30	3.26	82.80	0.12	3.05	1.54	0.70	3.07	77.93	0.22	5.49	2.75	1.25
3-1/2″	90	4.00	101.60	5.25	133.35	3.76	95.50	0.12	3.05	2.14	0.97	3.55	90.12	0.23	5.74	3.57	1.62
4″	100	4.50	114.30	6.00	152.40	4.26	108.20	0.12	3.05	2.72	1.23	4.03	102.26	0.24	6.02	5.26	2.39
5″	125	5.56	141.30	7.50	190.50	5.30	134.49	0.13	3.40	4.58	2.08	5.05	128.19	0.26	6.55	8.65	3.92
6″	150	6.63	168.28	9.00	228.60	6.36	161.47	0.13	3.40	6.86	3.11	6.07	154.05	0.28	7.11	13.75	6.24
8″	200	8.63	219.08	12.00	304.80	8.33	211.56	0.15	3.76	13.50	6.12	7.98	202.72	0.32	8.18	27.00	12.24
10″	250	10.75	273.05	15.00	381.00	10.42	264.67	0.17	4.19	25.00	11.34	10.02	254.51	0.37	9.27	48.50	22.00
12″	300	12.75	323.85	18.00	457.20	12.39	314.71	0.18	4.57	34.00	15.42	12.00	304.80	0.38	9.53	75.00	34.01
14″	350	14.00	355.60	21.00	533.40	13.62	346.05	0.19	4.78	46.00	20.86	13.25	336.55	0.38	9.53	89.00	40.36
16″	400	16.00	406.40	24.00	609.60	15.62	396.85	0.19	4.78	60.00	27.21	15.25	387.35	0.38	9.53	116.00	52.61
18″	450	18.00	457.20	27.00	685.80	17.62	447.65	0.19	4.78	75.00	34.01	17.25	438.15	0.38	9.53	154.00	69.84
20″	500	20.00	508.00	30.00	762.00	19.56	496.93	0.22	5.54	126.00	57.14	19.25	488.95	0.38	9.53	189.00	85.71
24″	600	24.00	609.60	36.00	914.40	23.50	596.90	0.25	6.35	177.00	80.27	23.25	590.55	0.38	9.53	265.00	120.18
