Product Details
Place of Origin: BaoJi City Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-01
Payment & Shipping Terms
Minimum Order Quantity: If in stock, sample is available; If not in stock,100kgs of each size
Price: US dollar $23/kg-US dollar $31/kg
Packaging Details: Each tube with environmental protection bags,outside is standard plywood case
Delivery Time: 15 working days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Key Words 1: |
Factory Gr2 Gr1 Gr5 Gr7 Gr9 Gr12 Gr23 Titanium Pipe Prices Seamless Tube From Factory |
Key Words 2: |
20mm GR2 Titanium Tube |
Key Words 3: |
Titanium Heat Exchanger Tube |
Material: |
Pure Titanium |
Grade: |
Grade 2 |
Purity: |
99.5%min |
Length: |
Max 12 Meter |
Surface: |
Pickling Surface |
Application: |
Heat Exchanger |
Production Time: |
15 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |
Key Words 1: |
Factory Gr2 Gr1 Gr5 Gr7 Gr9 Gr12 Gr23 Titanium Pipe Prices Seamless Tube From Factory |
Key Words 2: |
20mm GR2 Titanium Tube |
Key Words 3: |
Titanium Heat Exchanger Tube |
Material: |
Pure Titanium |
Grade: |
Grade 2 |
Purity: |
99.5%min |
Length: |
Max 12 Meter |
Surface: |
Pickling Surface |
Application: |
Heat Exchanger |
Production Time: |
15 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |
Gr1, Gr2 Gr5 Titanium Tube Pure Titanium Titanium Pipe/tube
Titanium Tube Information
Name | Pure Titanium & Titanium Alloy Tube /Pipe/Tubing |
Tube Shape | Round Square Flat Coil |
Material | Gr1,Gr2,Gr7,Gr12. |
Standard | ASTM SB338 |
Type |
Seamless |
OD | 20 mm |
Wall Thickness | 1.2mm or as customized |
Length | Max 12 meter |
End | Plain End, Beveled End, Threaded |
Certificate | EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report---TUV,BV,SGS etc |
Application |
Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment Sea Water Equipment Heat Exchangers Condensers Pulp and Paper Industry |
Grade | Tensile Strength(min) | Yeild Strength(0.2% offset)) | Elongation(%) | ||||
ksi | MPa | Min | Max | ||||
Ksi | Mpa | Ksi | Mpa | ||||
1 | 35 | 240 | 25 | 170 | 45 | 310 | 24 |
2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
7 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
9 | 90 | 620 | 70 | 483 | - | - | 15C |
12 | 70 | 483 | 50 | 345 | - | - | 18C |
Grade | N | C | H | Fe | O | Al | V | Ti | Other , max |
1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | Bal | 0.4 |
2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | Bal | 0.4 |
7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | Bal | 0.4 |
9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | Bal | 0.4 |
12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | Bal | 0.4 |

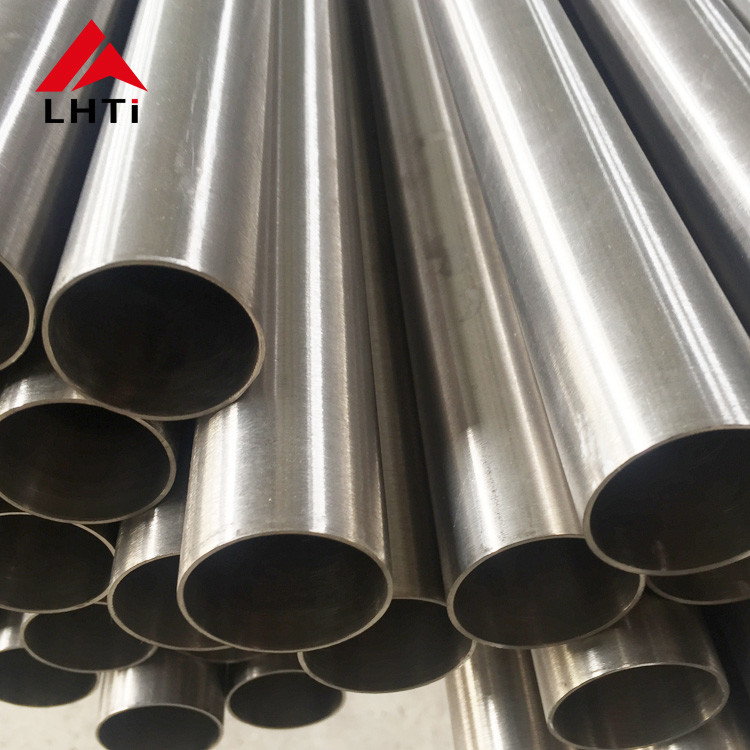

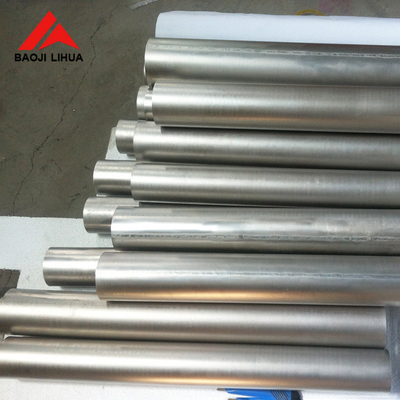

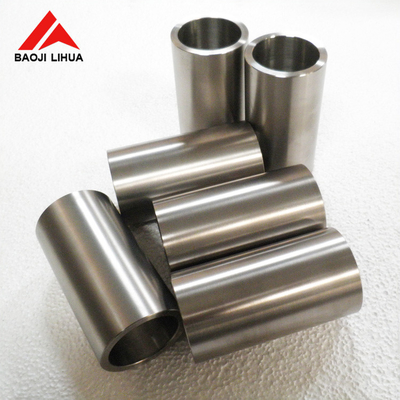

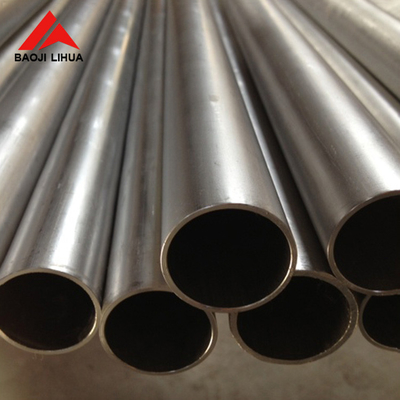

Detailed images:
