ASTM B348 Gr2 Gr5 TC11 Titanium Alloy Bar Forged Titanium Rod for Aerospace Applications

Name: ASTM B348 Gr2 Gr5 TC11 Titanium Alloy Bar Forged Titanium Rod for Aerospace Applications
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: TC11
Price: 40.00 USD
Availability: InStock

Brand Name:	LH-Ti
Model Number:	TC11
MOQ:	10kg
Price:	USD 30-50 / kg
Payment Terms:	T/T,MoneyGram,L/C,Western Union,Paypal
Supply Ability:	5 Ton per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Product Name:

Titanium Bar

Standard:

ASTM B348

Material:

TC11

Shape:

Round, Square, Flat, Hex

Diameter:

6-350mm

Length:

Max 6000mm

Surface:

Bright

Packaging Details:

Standard exporting packing: protecting foam and EPE inside and plywood case outside.

Supply Ability:

5 Ton per month

Highlight:

Square Forged Titanium Bar

Rectangular Titanium Rod

ASTM B348 Square Titanium Rod

Product Description

ASTM B348 Gr2 Gr5 Forged Titanium Bar Square Rectangular Titanium Rod

ASTM B348 gr2 gr5 forged titanium square bar, titanium bar, and rectangular titanium rod are high-performance materials designed for demanding industrial applications.

TC11 Titanium Alloy Bar

As a crucial aerospace material, TC11 is an α+β dual-phase titanium alloy with phase transfer temperature between 998-1020°C. Its exceptional properties including high strength and fatigue resistance make it ideal for aircraft engine components.

TC11 titanium alloy maintains excellent microstructure and performance stability under 300°C/5000h conditions, with superior high-temperature properties including tensile strength, creep resistance, and durability. Through normal annealing treatment, TC11 semi-finished products meet aircraft structural requirements for temperatures below 300°C.

Product Advantages

Competitive Pricing: With 16+ years of titanium manufacturing experience, we offer market-leading prices.
Advanced Equipment: Our facility includes annealing furnaces, forging hammers, milling machines, straightening machines, and comprehensive finishing equipment.
Quality Assurance: Our titanium rods meet international standards (MTC, EN10204.3.1) with optional third-party testing (TUV, SGS, BV).
Flexible Shipping: Multiple shipping options including EXW, FOB, and CIF available.

Chemical Composition Requirements

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal
TC11	0.05	0.08	0.012	0.25	0.15	5.8~7.0	/	/	2.8~3.8	/	bal

Tensile Strength Requirements

Grade	Tensile Strength (min)	Yield Strength	Elongation
Gr1	35 KSI / 240 MPa	20 KSI / 138 MPa	24%
Gr2	50 KSI / 345 MPa	40 KSI / 275 MPa	20%
Gr5	130 KSI / 895 MPa	120 KSI / 828 MPa	10%
Gr7	50 KSI / 345 MPa	40 KSI / 275 MPa	20%
Gr12	70 KSI / 438 MPa	50 KSI / 345 MPa	18%

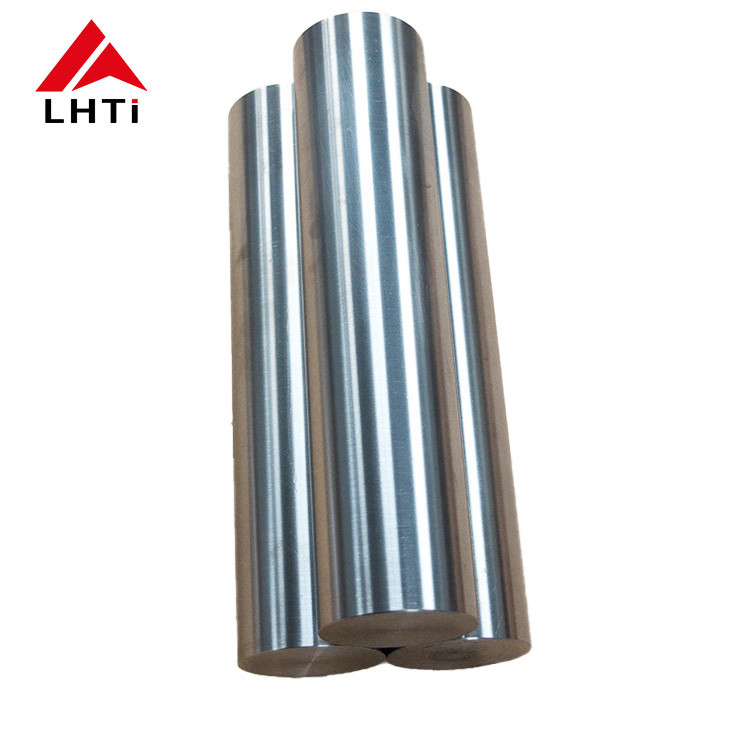

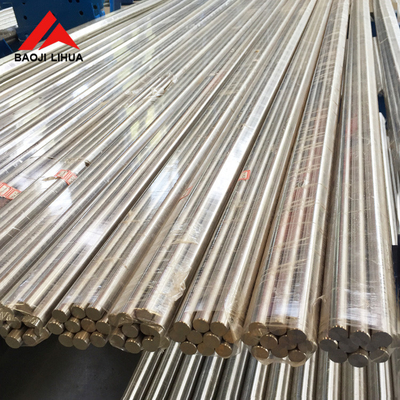

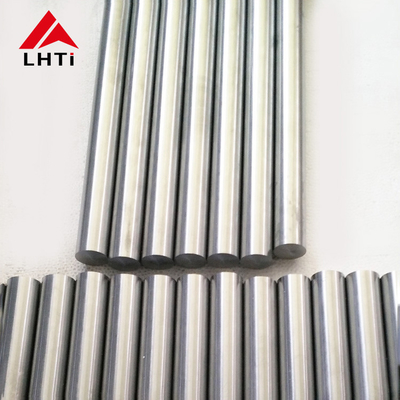

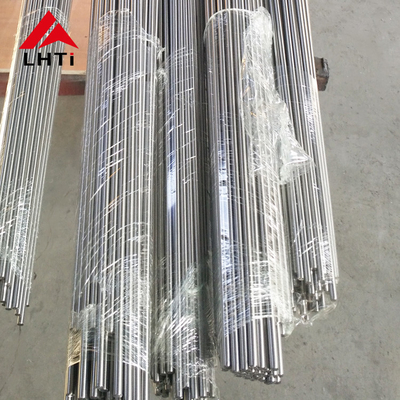

Product Images
