| Place of Origin: | China |
|---|---|
| Brand Name: | LHTi |
| Certification: | ISO 9001:2015 |
| Model Number: | LH-Ti10 |
| Minimum Order Quantity: | 5 pcs |
| Packaging Details: | Standard export packing,plywood case outside |
| Delivery Time: | 15-30 Days |
| Payment Terms: | L/C,D/P, T/T etc. |
| Product Name: | Gr2 Titanium Elbow 90 Degree | Material: | TA0,TA1,TA2,TA9,TA10,BT1-00,BT1-0,Gr1,Gr2 |
|---|---|---|---|
| Standard: | ASTM 337 338, | OD: | 1/8" To 48" |
| Wall Thickness: | Sch5s To Sch160 | Processing: | Push |
| Applications: | Pipe Fitting Connetion | Third Party Test: | Available |
| Processing Service: | Bending, Welding, Decoiling, Cutting, Punching, Forged | ||
| High Light: | Gr7 Titanium 90 Degree Elbow,Sch160 Titanium Elbow,Fitting Connection Titanium Pipe Elbow |
||

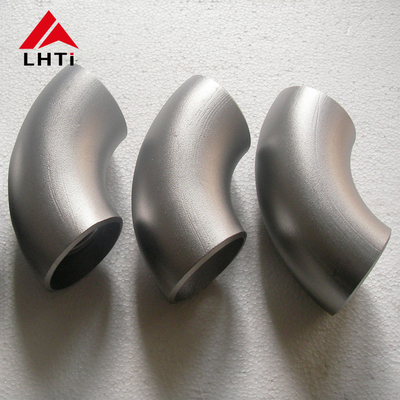

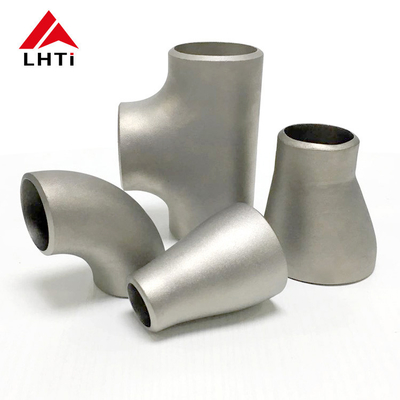

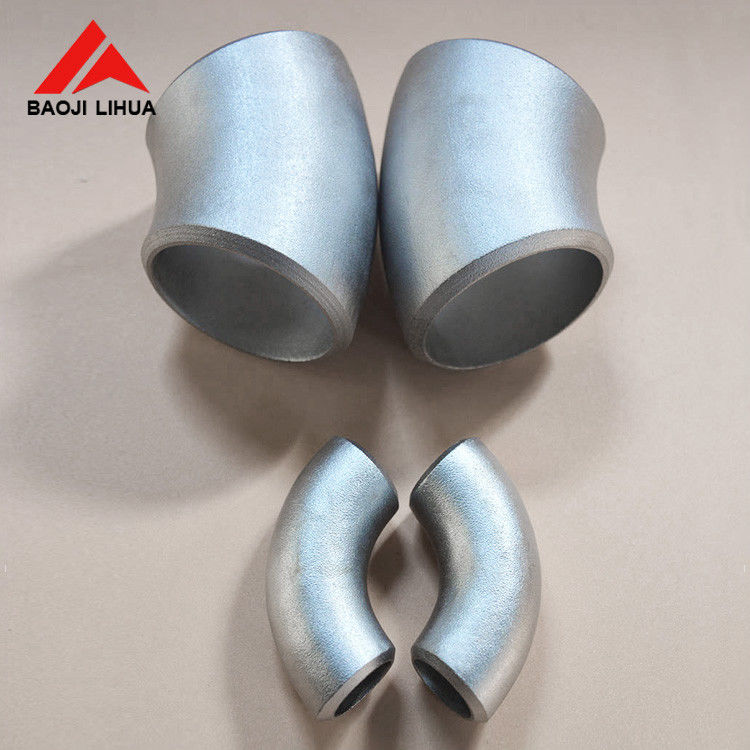

Gr2 Gr7 Gr12 titanium elbow 90 degree price
Titanium elbow has the advantages of smooth inner wall, small heat medium flow resistance, acid and alkali resistance, long service life and convenient installation. Widely used in chemical industry, petroleum, light and heavy industry, electric power, aerospace, shipbuilding and other basic engineering.
Product Name: Titanium Elbow
Standard: ASME B16.9 ASME B363
Material: Gr1, Gr2, Gr7, Gr12
Outer Diameter: 1/2"-48"
Wall Thickness: Sch5s-Sch160s
Type: Seamless/Welded
Technique: Extruded,welded
MOQ:5 PCS
Delivery time:
If in stock, 3-54 working days
If need to manufacture, 15-35 working days
|
|
Tensile Strength(min) |
Yeild Strength(min) |
Elongation(%) |
||
|
|
ksi |
MPa |
ksi |
MPa |
|
|
Grade 1 |
35 |
240 |
20 |
138 |
24 |
|
Grade2 |
50 |
345 |
40 |
275 |
20 |
|
Grade 7 |
50 |
345 |
40 |
275 |
20 |
|
Grade 12 |
70 |
483 |
50 |
345 |
18 |
Titanium elbows quality inspections:
Dimention inspection, Tensile testing, UT ,PT ,Chemical composition inspection,
Hydrodtatic test, Eddy current inspection,Radiographic inspection,Thickness inspection,PMI inspection
Titanium 90 Degree Elbow Data
| Schedule 10S Light N.P.S. | Schedule 40S Standard N.P.S. | ||||||||||||||||
| Nominal Pipe Size | Outside Diameter | Center to Face | Inside Diameter | Wall Thickness | Approx. Wt. in Lbs./Kgs. | Inside Diameter | Wall Thickness | Approx. Wt in Lbs./Kgs. | |||||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | lb | kg | in | mm | in | mm | lb | kg |
| 1/2″ | 15 | 0.84 | 21.34 | 1.50 | 38.10 | 0.67 | 17.12 | 0.08 | 2.11 | 0.08 | 0.04 | 0.62 | 15.80 | 0.11 | 2.77 | 0.10 | 0.05 |
| 3/4″ | 20 | 1.05 | 26.67 | 1.13 | 28.58 | 0.88 | 22.45 | 0.08 | 2.11 | 0.09 | 0.04 | 0.82 | 20.93 | 0.11 | 2.87 | 0.11 | 0.05 |
| 1″ | 25 | 1.32 | 33.40 | 1.50 | 38.10 | 1.10 | 27.86 | 0.11 | 2.77 | 0.17 | 0.08 | 1.05 | 26.64 | 0.13 | 3.38 | 0.20 | 0.09 |
| 1-1/4″ | 32 | 1.66 | 42.16 | 1.88 | 47.63 | 1.44 | 36.63 | 0.11 | 2.77 | 0.29 | 0.13 | 1.38 | 35.05 | 0.14 | 3.56 | 0.32 | 0.15 |
| 1-1/2″ | 40 | 1.90 | 48.26 | 2.25 | 57.15 | 1.68 | 42.72 | 0.11 | 2.77 | 0.39 | 0.18 | 1.61 | 40.89 | 0.15 | 3.68 | 0.50 | 0.23 |
| 2″ | 50 | 2.38 | 60.33 | 3.00 | 76.20 | 2.16 | 54.79 | 0.11 | 2.77 | 0.65 | 0.29 | 2.07 | 52.50 | 0.15 | 3.91 | 0.89 | 0.40 |
| 2-1/2″ | 65 | 2.88 | 73.03 | 3.75 | 95.25 | 2.64 | 66.93 | 0.12 | 3.05 | 1.08 | 0.49 | 2.47 | 62.71 | 0.20 | 5.16 | 1.72 | 0.78 |
| 3″ | 80 | 3.50 | 88.90 | 4.50 | 114.30 | 3.26 | 82.80 | 0.12 | 3.05 | 1.54 | 0.70 | 3.07 | 77.93 | 0.22 | 5.49 | 2.75 | 1.25 |
| 3-1/2″ | 90 | 4.00 | 101.60 | 5.25 | 133.35 | 3.76 | 95.50 | 0.12 | 3.05 | 2.14 | 0.97 | 3.55 | 90.12 | 0.23 | 5.74 | 3.57 | 1.62 |
| 4″ | 100 | 4.50 | 114.30 | 6.00 | 152.40 | 4.26 | 108.20 | 0.12 | 3.05 | 2.72 | 1.23 | 4.03 | 102.26 | 0.24 | 6.02 | 5.26 | 2.39 |
| 5″ | 125 | 5.56 | 141.30 | 7.50 | 190.50 | 5.30 | 134.49 | 0.13 | 3.40 | 4.58 | 2.08 | 5.05 | 128.19 | 0.26 | 6.55 | 8.65 | 3.92 |
| 6″ | 150 | 6.63 | 168.28 | 9.00 | 228.60 | 6.36 | 161.47 | 0.13 | 3.40 | 6.86 | 3.11 | 6.07 | 154.05 | 0.28 | 7.11 | 13.75 | 6.24 |
| 8″ | 200 | 8.63 | 219.08 | 12.00 | 304.80 | 8.33 | 211.56 | 0.15 | 3.76 | 13.50 | 6.12 | 7.98 | 202.72 | 0.32 | 8.18 | 27.00 | 12.24 |
| 10″ | 250 | 10.75 | 273.05 | 15.00 | 381.00 | 10.42 | 264.67 | 0.17 | 4.19 | 25.00 | 11.34 | 10.02 | 254.51 | 0.37 | 9.27 | 48.50 | 22.00 |
| 12″ | 300 | 12.75 | 323.85 | 18.00 | 457.20 | 12.39 | 314.71 | 0.18 | 4.57 | 34.00 | 15.42 | 12.00 | 304.80 | 0.38 | 9.53 | 75.00 | 34.01 |
| 14″ | 350 | 14.00 | 355.60 | 21.00 | 533.40 | 13.62 | 346.05 | 0.19 | 4.78 | 46.00 | 20.86 | 13.25 | 336.55 | 0.38 | 9.53 | 89.00 | 40.36 |
| 16″ | 400 | 16.00 | 406.40 | 24.00 | 609.60 | 15.62 | 396.85 | 0.19 | 4.78 | 60.00 | 27.21 | 15.25 | 387.35 | 0.38 | 9.53 | 116.00 | 52.61 |
| 18″ | 450 | 18.00 | 457.20 | 27.00 | 685.80 | 17.62 | 447.65 | 0.19 | 4.78 | 75.00 | 34.01 | 17.25 | 438.15 | 0.38 | 9.53 | 154.00 | 69.84 |
| 20″ | 500 | 20.00 | 508.00 | 30.00 | 762.00 | 19.56 | 496.93 | 0.22 | 5.54 | 126.00 | 57.14 | 19.25 | 488.95 | 0.38 | 9.53 | 189.00 | 85.71 |
| 24″ | 600 | 24.00 | 609.60 | 36.00 | 914.40 | 23.50 | 596.90 | 0.25 | 6.35 | 177.00 | 80.27 | 23.25 | 590.55 | 0.38 | 9.53 | 265.00 | 120.18 |
Detailed images:
Baoji Lihua Non-ferrous Metals Co.,Ltd found in 2006, lies in Baoji city--"The Titanium Valley of China. We are specialized in manufacturing, reaseaching and marketing titanium. All our products are mainly exported to Europe, USA, Australia, Middle East and South East Asia. Besides, our products are manufactured either in accordance with the leading regulatory international and domestic standards, such as the ASME, ANSI, EN, DIN, BS, NF, JIS, AS, KS, GB, JB, HG, SH standards, or according to the drawings specified by purchasers. For the material, we mainly produce titanium and titanium alloy, nickel and nickel alloy.
