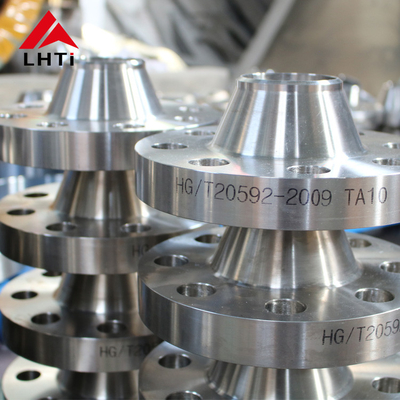

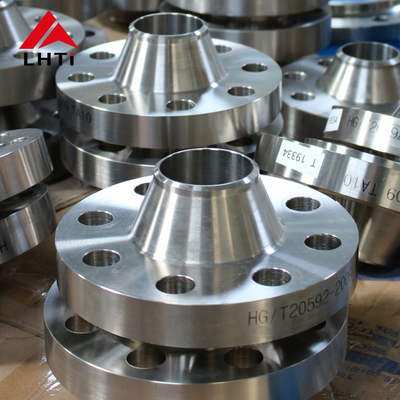

ASME SB381 B16.5 Titanium Alloy Weld Neck Flange For Pipe Fittings Connection

Brand Name:	LIHUA
Model Number:	LH-WN
MOQ:	5 Pieces
Price:	US dollar $25/pc--US dollar $85/pc
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Product Name:

Titanium WN Flange

Standard:

ASME B16.5

Material:

Gr1, Gr2, Gr5, Gr7, Gr12

Application:

Chemical Industry

Sealing Surface:

RF, FF, TG, RJ Etc.

Size:

NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure:

150#-2500#

Surface:

Polished

Technique:

Forged And CNC Machined

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

50000 pcs per month

Highlight:

Titanium Alloy Weld Neck Flange

ASME SB381 Titanium Weld Neck Flange

Pipe Fittings Connection Titanium Flange

Product Description

Titanium weld neck Flange

Product name: Titanium weld neck flange/ titanium WN flange

Standard:ANSI, ASME

Size: 1'' and 1/2'' ~ 80' (DN40-DN2500)

Material:Titanium grade 1 grade 2 grade 5 grade 7 grade 12

Type: SO

Material :Gr2 titanium

Connection type: RF

MOQ: 1 piece

Physical Properties (Min):

Grade	Tensile strength(min)	Tensile strength(min)	Yeild strength(min)	Yeild strength(min)	Elongation
	Ksi	Mpa	Ksi	Mpa	%
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	90	620	70	438	15

ASME SB381 B16.5 Titanium Alloy Weld Neck Flange For Pipe Fittings Connection 0

Applications

ASME SB381 B16.5 Titanium Alloy Weld Neck Flange For Pipe Fittings Connection 2

Production Process

ASME SB381 B16.5 Titanium Alloy Weld Neck Flange For Pipe Fittings Connection 3

Our Factory

ASME SB381 B16.5 Titanium Alloy Weld Neck Flange For Pipe Fittings Connection 4

Stock

ASME SB381 B16.5 Titanium Alloy Weld Neck Flange For Pipe Fittings Connection 5

Quality Inspection

ASME SB381 B16.5 Titanium Alloy Weld Neck Flange For Pipe Fittings Connection 6

Titanium Pipe Flanges Test Certificates:

We, Baoji Lihua, provide Manufacturer TC (Test Certificate) in accordance to EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report. We also provide Standard certificates like EN 10204 3.1 and additional requirement like. NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.

• EN 10204/3.1B,

• Raw Materials Certificate

• 100% Radiography Test Report

• Third Party Inspection Report, etc

Baoji Lihua has rich experience in forging and machining, which makes our titanium flange products keep good quality.At the same time, to meet the specific requirements of customers, we also produce titanium flange according to customer drawings.

Why choose Baoji Lihua?

1. Over 15 years exporting experience

2. High quality control:All of titanium flange will be produced by the standard of ASTM B16.5, and made all of necessary quality inspections

3. Favorable price with good quality

4. Flexible payment way

Packaging

ASME SB381 B16.5 Titanium Alloy Weld Neck Flange For Pipe Fittings Connection 7
