Welding Materials AWS A5.16 Titanium Wire ERTI-2 for Pipe Welding
Product Details
Place of Origin: Baoji ,Shaanxi ,China
Brand Name: LHTI
Certification: ISO9001:2015; SGS;BV;TUV
Model Number: Titanium welding wire
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Price: USD30-50 per kg
Packaging Details: Inside Plastic bag with laber, outside plastic box, then carton box/plywood case
Delivery Time: 7-10 working days
Payment Terms: D/A, D/P, T/T, Western Union, L/C
Supply Ability: 5 tons per month
Standard: |
Astm B863 |
Grade: |
Gr1 Gr2 Gr5 Gr7 Gr12 |
Diameter: |
1.2mm 2.0mm |
Material: |
Pure Titanium, Alloy Titanium |
Shape: |
Coil |
Product Name: |
Titanium Welding Wire |
Surface: |
Pickled, Polished |
Marterial: |
ER Ti-2 |
Standard: |
Astm B863 |
Grade: |
Gr1 Gr2 Gr5 Gr7 Gr12 |
Diameter: |
1.2mm 2.0mm |
Material: |
Pure Titanium, Alloy Titanium |
Shape: |
Coil |
Product Name: |
Titanium Welding Wire |
Surface: |
Pickled, Polished |
Marterial: |
ER Ti-2 |
ER Ti2 TIG Rod dia2.4 mm L1000 mm straight wire
1. chemical composition
| Chemical composition | |||||||||
| Grade | Essential component<= | Impurities <= | |||||||
| Ti | Al | Mn | V | C | O | N | H | Fe | |
| ERTi-1 | Remainder | — | — | — | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 |
| ERTi-2 | Remainder | — | — | — | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 |
| ERTi-3 | Remainder | — | — | — | 0.03 | 0.13-0.20 | 0.02 | 0.008 | 0.16 |
| ERTi-4 | Remainder | — | — | — | 0.03 | 0.18-0.32 | 0.025 | 0.008 | 0.25 |
| ERTi-5 | Remainder | 5.5-6.75 | — | 3.5-4.5 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 |
| ERTi-23 | Remainder | 5.5-6.5 | — | 3.5-4.5 | 0.03 | 0.03-0.11 | 0.012 | 0.005 | 0.2 |
2.Production Process of titanium wire:
Titanium sponge→compacting electrodes→melting→forging→bar billets→hot rolling→cold draw→titanium wires

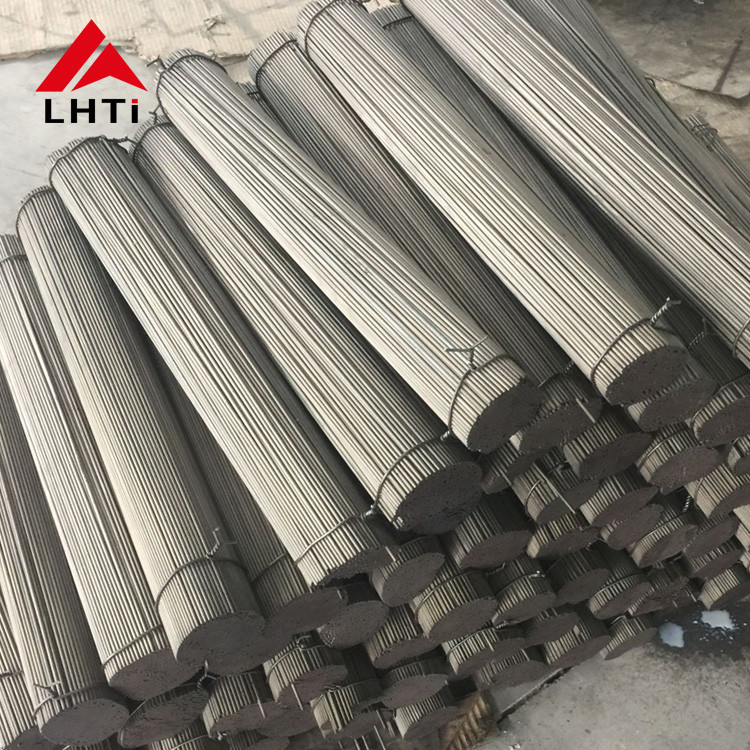

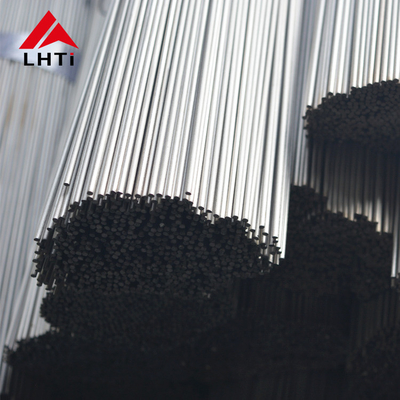

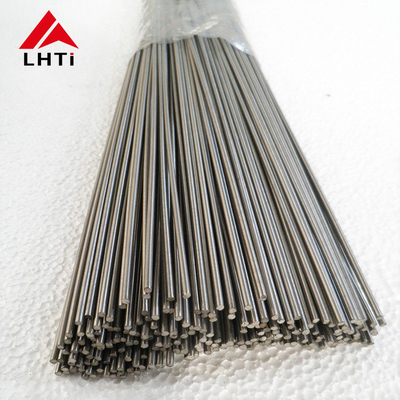

3.Detailed pictures:
Surface quality: high precision, good finish, no oxidation color, no cracks, peeling, thorns, marks and inclusions. Minor
local scratches, abrasions, spots and pits that do not exceed the allowable deviation of the wire diameter are allowed.
Quality Assurance:
1. Titanium wire is manufactured by globally recognized standards, such as ASMT B863,AWS A5.16.
2. Factory will do quality testes for each batch titanium wire: Mechanical properties,chemical composition,Microstructure
3. The Third Party Quality Test is available: SGS,BV,TUV
Titanium wire is widely used in heating titanium wire, titanium wire weaving, welding, chemical titanium equipment tower foam titanium broken mesh weaving, 60 mesh titanium packing weaving, electrolytic battery titanium anode mesh manufacturing and other industries. We have more than 15 years experience in manufacturing and exporting titanium wire. Product quality has been widely recognized by domestic and foreign customers. There's a lot in stock.
|
Product name |
Titanium wire |
| Grade | Gr1, Gr2, Gr3,Gr4,Gr5, Gr7, Gr12,Gr23 ect. |
| Standard | ASTM B863,AWS A5.16, ASTM F136, ASTM F67 etc. |
| Size | 0.1-7.0mm |
| Type | 10-15kgs/spool |
| Shape | Spool,coil,straight |
| Surface | Polishing, Pickling |
| Technique | Cold Rolled : Pury titanium (Gr1 /Gr2/Gr4 ) and Gr7 |
| Hot Rolled : Alloy titanium wire except Gr7,when drawn need heating wire ,When the temperature reached 800 degrees Celsius, carries on the drawing |
