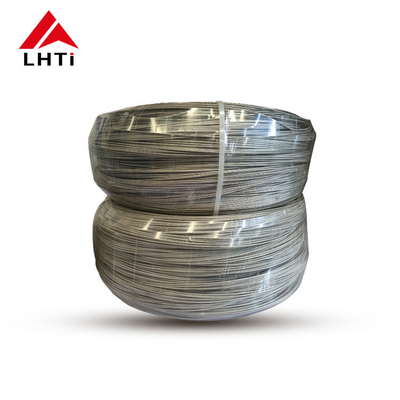

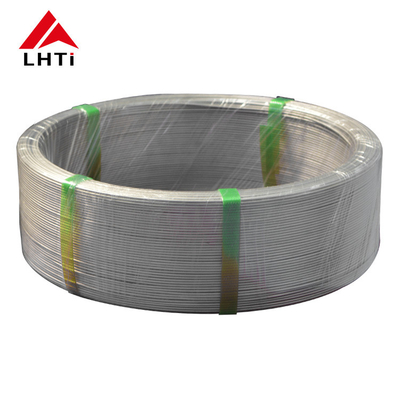

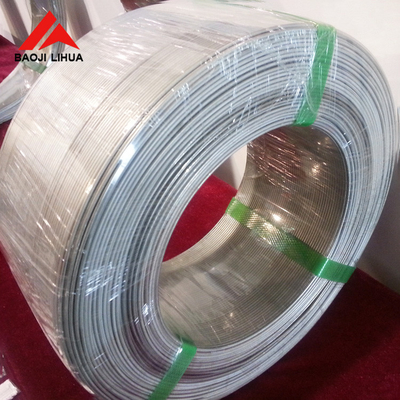

ASTM B348 Bending Titanium Wire For Fishing 0.5mm

Name: ASTM B348 Bending Titanium Wire For Fishing 0.5mm
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Wire
Price: 22.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Wire
MOQ:	20 kg
Price:	USD16.00-28.00 per kg
Payment Terms:	T/T,MoneyGram,L/C,Western Union,Paypal
Supply Ability:	200000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Material:

Best Price Manufacture ASTM B348 Good Quality Titanium Wire And Titanium Fishing With Low Price

Grade:

Gr1, Gr2

Diameter:

0.5mm-3mm

Straight Wire Length:

1000mm-3000mm

MOQ:

20 Kg

Package Box:

5kg Per Plastic Box, Or As Your Request

Certificate:

ISO9001:2008

Processing Service:

Bending, Cutting

Package Coil:

10~15kg ,or As Per Buyer Requirement

Advantage:

Corrosion Resistance, High Strength, Light Quality

Packaging Details:

Plastic bag with laber, outside plastic box, then plywod box

Supply Ability:

200000 kg per month

Highlight:

Bending Titanium Fishing Wire

0.5mm Welded Wire Mesh

Fishing Titanium Coil Wire

Product Description

ASTM B348 Bending Titanium Wire For Fishing 0.5mm

Product Specifications

High-quality ASTM B348 compliant titanium wire specifically designed for fishing applications with 0.5mm diameter.

Delivery States

M (Annealed soft state) - Fully annealed for maximum ductility
R (Processing of soft state) - Soft condition for forming operations
Y (Processing of hard state) - Hard condition for spring applications
D (Memory training, Dedicated Nitinol) - Shape memory alloy processing

Packaging Options

Soft paper or plastic bag as inner packaging with wooden case as outer packaging, or customized according to customer requirements.

Available Diameters & Packaging Types

Size (mm)	0.5	0.8	1.0	1.2	1.6	2.0	2.4	2.5	3.0	3.2	4.0
Size (inch)	0.020"	0.031"	0.039"	0.047"	0.062"	0.079"	0.093"	0.098"	0.12"	0.125"	0.16"
Straight					✓	✓	✓	✓	✓	✓	✓
Spool	✓	✓	✓	✓	✓
Coil					✓	✓	✓	✓	✓	✓	✓

Filler Metal Selection Guide for Titanium Welding

ASTM Base Metal Grade	Base Metal	UTS(min.) ksi[MPa]	YS(min.) ksi[MPa]	Normal Composition	Recommended Filler Metal
Grade 1	Unalloyed Ti CP1	35[240]	20[138]	Commercially Pure	ERTi-1
Grade 2	Unalloyed Ti CP2	50[345]	40[275]	Commercially Pure	ERTi-2
Grade 4	Unalloyed Ti CP4	80[550]	70[483]	Commercially Pure	ERTi-4
Grade 5	Ti 6AL-4V	130[895]	120[828]	Ti-6Al-4V	ERTi-5
Grade 7	Ti 0.15Pd	50[345]	40[275]	Commercially Pure + Pd	ERTi-7

Chemical Composition Requirements

AWS	UNS Number	C	O	N	H	Fe	Al	V	Pd
ERTi-1	R50100	0.03	0.03-0.10	0.012	0.005	0.08	-	-	-
ERTi-2	R50120	0.03	0.08-0.16	0.015	0.008	0.12	-	-	-
ERTi-4	R50130	0.03	0.08-0.32	0.025	0.008	0.25	-	-	-
ERTi-5	R56400	0.05	0.12-0.20	0.03	0.015	0.22	5.5-6.7	3.5-4.5	-
ERTi-7	R52401	0.03	0.08-0.16	0.015	0.008	0.12	-	-	0.12-0.25

Grade Definitions & Applications

ERTi-1 (Grade 1)

The lowest strength unalloyed (Commercially Pure) grade. Ideal for applications requiring maximum ductility such as explosive cladding, loose linings, expanded metal, and deep drawing. Also used in electrolytic applications including coated anode substrates for chlorine and sodium chlorate production.

ERTi-2 (Grade 2)

The standard grade for industrial corrosion applications and most common unalloyed (Commercially Pure) titanium. Widely available in all product forms with competitive pricing. Used for process equipment including pressure vessels, columns, tanks, heat exchangers, shafts, blowers, fans, condenser tubing, valves, fittings, and pipe systems.

ERTi-4 (Grade 4)

The highest strength unalloyed (Commercially Pure) titanium grade. While rarely used in corrosion service, it's employed in aircraft components under AMS specifications where its superior strength reduces weight in critical structures like bulkheads and firewalls.
