Home > products > Titanium Elbow > Seamless 90 Degree Titanium Welded Elbow Tube Fittings

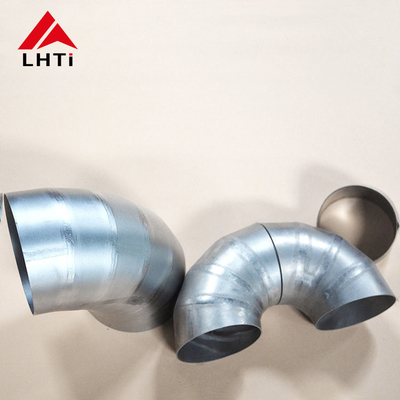

Seamless 90 Degree Titanium Welded Elbow Tube Fittings

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO 9001:2015

Model Number: LH-Ti10

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Packaging Details: Standard export packing,plywood case outside

Delivery Time: 15-30 Days

Payment Terms: L/C,D/P, T/T etc.

Get Best Price
Highlight:

Seamless Titanium Welded Elbow

,

90 Degree Butt Weld Elbow

,

Welded Titanium 90 Degree Elbow

Product Name:
Titanium Seamless 90 Degree Welded Elbow Tube Fittings
Material:
TA0,TA1,TA2,TA9,TA10,BT1-00,BT1-0,Gr1,Gr2
Standard:
ASTM 337 338, GB/T3624-2010 GB/T3625-2007 ASTM 337 33
OD:
1/8" To 48"
Wall Thickness:
Sch5s To Sch160
Processing:
Push
Applications:
Pipe Fitting Connetion
Third Party Test:
Available
Processing Service:
Bending, Welding, Decoiling, Cutting, Punching, Forged
Product Name:
Titanium Seamless 90 Degree Welded Elbow Tube Fittings
Material:
TA0,TA1,TA2,TA9,TA10,BT1-00,BT1-0,Gr1,Gr2
Standard:
ASTM 337 338, GB/T3624-2010 GB/T3625-2007 ASTM 337 33
OD:
1/8" To 48"
Wall Thickness:
Sch5s To Sch160
Processing:
Push
Applications:
Pipe Fitting Connetion
Third Party Test:
Available
Processing Service:
Bending, Welding, Decoiling, Cutting, Punching, Forged
Seamless 90 Degree Titanium Welded Elbow Tube Fittings

Titanium Seamless 90 Degree Welded Elbow Tube Fittings



Titanium elbow is one of the commonly used titanium pipe fittings.Titanium pipe fittings has extremely high corrosion resistance in most media, especially in neutral, oxidizing and seawater media. The corrosion resistance in seawater is higher than that of aluminum alloys, stainless steels and nickel-based alloys.So it has been used in the industrial, agricultural environment and marine atmosphere for several years, and the surface has not changed.

Titanium pipe fittings is also highly stable in various concentrations of nitric acid and chromic acid, and it is also very resistant to corrosion in alkaline solutions and most organic acids and compounds.



Product name: Titanium 90 degree elbow

OD: 1/2"-36"

Wall thickness: 1.0-18mm

Standard: ANSI / ASME B16.9 ,ANSI / ASME B16.9 B363

Material grade: Titanium Grade 1 grade 2 grade 7 Grade 12

Type: Seamless ,welded

Surface: Pickled, polished,sand-blasting

Application: Pipe fittings







Tensile Strength(min)

Yeild Strength(min)

Elongation(%)



ksi

MPa

ksi

MPa



Grade  1

35

240

20

138

24

Grade2

50

345

40

275

20

Grade 7

50

345

40

275

20

Grade 12

70

483

50

345

18





























Titanium elbows quality inspections:

Dimention inspection, Tensile testing, UT ,PT ,Chemical composition inspection,

Hydrodtatic test, Eddy current inspection,Radiographic inspection,Thickness inspection,PMI inspection



QQ截图20200806152931



 Detailed images:

Seamless 90 Degree Titanium Welded Elbow Tube Fittings 1Seamless 90 Degree Titanium Welded Elbow Tube Fittings 2Seamless 90 Degree Titanium Welded Elbow Tube Fittings 3Seamless 90 Degree Titanium Welded Elbow Tube Fittings 4Seamless 90 Degree Titanium Welded Elbow Tube Fittings 5





Baoji Lihua Non-ferrous Metals Co.,Ltd found  in 2006, lies in Baoji city--"The Titanium Valley of China. We are specialized in manufacturing, reaseaching and marketing titanium. All our products are mainly exported to Europe, USA, Australia, Middle East and South East Asia. Besides, our products are manufactured either in accordance with the leading regulatory international and domestic standards, such as the ASME, ANSI, EN, DIN, BS, NF, JIS, AS, KS, GB, JB, HG, SH standards, or according to the drawings specified by purchasers. For the material, we mainly produce titanium and titanium alloy, nickel and nickel alloy.

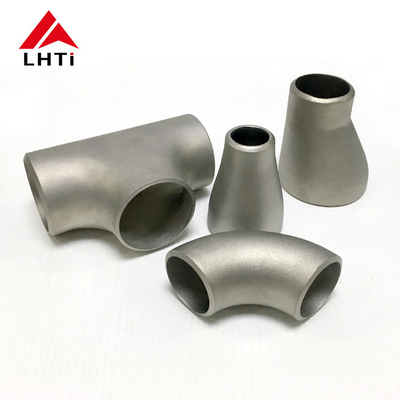

 Seamless 90 Degree Titanium Welded Elbow Tube Fittings 6




Exhibitions and customer visits:

  Seamless 90 Degree Titanium Welded Elbow Tube Fittings 7





Welcome to contact and visit us in any time!

Seamless 90 Degree Titanium Welded Elbow Tube Fittings 8
