Home > products > Titanium Elbow > 1.75" 90 Degree CP2 Titanium Exhaust Bends 45 X1mm

1.75" 90 Degree CP2 Titanium Exhaust Bends 45 X1mm

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO 9001:2015

Model Number: LH-Ti10

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Packaging Details: Standard export packing,plywood case outside

Delivery Time: 15-30 Days

Payment Terms: L/C,D/P, T/T etc.

Get Best Price
Highlight:

45 X1mm Titanium Exhaust Bends

,

CP2 Titanium Exhaust Bends

,

Titanium 1.75" 90 Degree Elbow

Product Name:
Facotory Direct-sales 1.75" 90 Degree CP2 Titanium Exhaust Bends 45 X1mm Titanium Elbow
Material:
Gr1 Gr2 Gr7 Gr12 Titanium
Standard:
ASTM/ASME B363
OD:
1/8" To 48"
Wall Thickness:
Sch5s To Sch160
Processing:
Push
Applications:
Pipe Fitting Connetion
Third Party Test:
Available
Product Name:
Facotory Direct-sales 1.75" 90 Degree CP2 Titanium Exhaust Bends 45 X1mm Titanium Elbow
Material:
Gr1 Gr2 Gr7 Gr12 Titanium
Standard:
ASTM/ASME B363
OD:
1/8" To 48"
Wall Thickness:
Sch5s To Sch160
Processing:
Push
Applications:
Pipe Fitting Connetion
Third Party Test:
Available
1.75" 90 Degree CP2 Titanium Exhaust Bends 45 X1mm

1.75" 90 Degree CP2 Titanium Exhaust Bends 45 x1mm Titanium Elbow



Titanium elbow is one of the commonly used titanium pipe fittings.Titanium pipe fittings has extremely high corrosion resistance in most media, especially in neutral, oxidizing and seawater media. The corrosion resistance in seawater is higher than that of aluminum alloys, stainless steels and nickel-based alloys.So it has been used in the industrial, agricultural environment and marine atmosphere for several years, and the surface has not changed.

Titanium pipe fittings is also highly stable in various concentrations of nitric acid and chromic acid, and it is also very resistant to corrosion in alkaline solutions and most organic acids and compounds.



Product name: Titanium 90 degree elbow

OD: 1/2"-36"

Wall thickness: 1.0-18mm

Standard: ANSI / ASME B16.9 ,ANSI / ASME B16.9 B363

Material grade: Titanium Grade 1 grade 2 grade 7 Grade 12

Type: Seamless ,welded

Surface: Pickled, polished,sand-blasting

Application: Pipe fittings







Tensile Strength(min)

Yeild Strength(min)

Elongation(%)



ksi

MPa

ksi

MPa



Grade  1

35

240

20

138

24

Grade2

50

345

40

275

20

Grade 7

50

345

40

275

20

Grade 12

70

483

50

345

18





























Titanium elbows quality inspections:

Dimention inspection, Tensile testing, UT ,PT ,Chemical composition inspection,

Hydrodtatic test, Eddy current inspection,Radiographic inspection,Thickness inspection,PMI inspection



QQ截图20200806152931

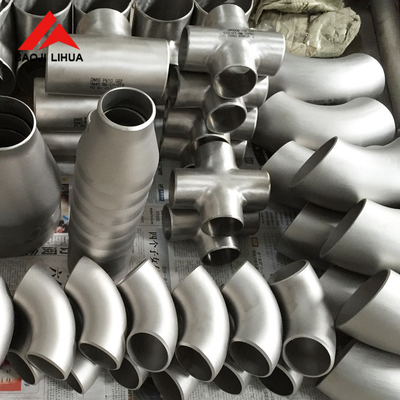

 Detailed images:

1.75" 90 Degree CP2 Titanium Exhaust Bends 45 X1mm 11.75" 90 Degree CP2 Titanium Exhaust Bends 45 X1mm 21.75" 90 Degree CP2 Titanium Exhaust Bends 45 X1mm 31.75" 90 Degree CP2 Titanium Exhaust Bends 45 X1mm 41.75" 90 Degree CP2 Titanium Exhaust Bends 45 X1mm 5





Baoji Lihua Non-ferrous Metals Co.,Ltd found  in 2006, lies in Baoji city--"The Titanium Valley of China. We are specialized in manufacturing, reaseaching and marketing titanium. All our products are mainly exported to Europe, USA, Australia, Middle East and South East Asia. Besides, our products are manufactured either in accordance with the leading regulatory international and domestic standards, such as the ASME, ANSI, EN, DIN, BS, NF, JIS, AS, KS, GB, JB, HG, SH standards, or according to the drawings specified by purchasers. For the material, we mainly produce titanium and titanium alloy, nickel and nickel alloy.
