AWS A5.16 Bending Titanium Wire Spool Gr1 Machined Finish

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015; TUV; SGS;BV

Model Number: Titanium wire

Payment & Shipping Terms

Minimum Order Quantity: 20 kg

Price: USD16.00-28.00 per kg

Packaging Details: Plastic bag with laber, outside plastic box, then plywod box

Delivery Time: 7-20 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal

Supply Ability: 200000 kg per month

Get Best Price
Highlight:

Gr1 Titanium Round Wire

,

Bending Titanium Wire Spool

,

Machined Finish Titanium Wire Spool

Material:
Best Price Titanium Wire In Spool AWS A5.16 Machined Finish
Grade:
Gr1, Gr2
Diameter:
0.5mm-3mm
Straight Wire Length:
1000mm-3000mm
MOQ:
20 Kg
Package Box:
5kg Per Plastic Box, Or As Your Request
Certificate:
ISO9001:2008
Processing Service:
Bending, Cutting
Package Coil:
10~15kg ,or As Per Buyer Requirement
Advantage:
Corrosion Resistance, High Strength, Light Quality
Material:
Best Price Titanium Wire In Spool AWS A5.16 Machined Finish
Grade:
Gr1, Gr2
Diameter:
0.5mm-3mm
Straight Wire Length:
1000mm-3000mm
MOQ:
20 Kg
Package Box:
5kg Per Plastic Box, Or As Your Request
Certificate:
ISO9001:2008
Processing Service:
Bending, Cutting
Package Coil:
10~15kg ,or As Per Buyer Requirement
Advantage:
Corrosion Resistance, High Strength, Light Quality
AWS A5.16 Bending Titanium Wire Spool Gr1 Machined Finish

Best Price Titanium Wire In Spool AWS A5.16 Machined Finish





Delivery State:



1. M (Annealed soft state);

2. R (Processing of soft state);

3. Y (Processing of hard state);

4. D (Memory training, Dedicated Nitinol).



Packing: Soft paper or plastic bag as inside, wooden case as outside,

or according to customer's demand



1. Available Diameter, Type & Packing



Size (mm) Dia 0.5 Dia 0.8 Dia 1.0 Dia 1.2 Dia 1.6 Dia 2.0 Dia 2.4 Dia 2.5 Dia 3.0 Dia 3.2 Dia 4.0
Size (inch) 0.020' 0.031" 0.039" 0.047" 0.062" 0.079" 0.093" 0.098' 0.12" 0.125" 0.16'
Straight
Spool
Coil







2.Guide to choose of filler metal for general purpose titanium welding



ASTM Base Metal Grade Base metal Normal composition Recommended Filler Metal
  UTS(min.) ksi[Mpa] YS(min.) ksi[Mpa]
Grade 1 35[240] 20[138] Unalloyed Ti CP1 ERTi-1
Grade 2 50[345] 40[275] Unalloyed Ti CP2 ERTi-2
Grade 4 80[550] 70[483] Unalloyed Ti CP4 ERTi-4
Grade 5 130[895] 120[828] Ti 6AL-4V ERTi-5
Grade 7 50[345] 40[275] Ti 0.15Pd ERTi-7







3.Chemical compostion requirements



AWS CHEMICAL SPECIFICATIONS
AWS A5.16 UNS C O N H I Al V Pd
  Number
ERTi 1 R50100 0.03 0.03-0.10 0.012 0.005 0.08 - - -
ERTi 2 R50120 0.03 0.08-0.16 0.015 0.008 0.12 - - -
ERTi 4 R50130 0.03 0.08-0.32 0.025 0.008 0.25 - - -
ERTi 5 R56400 0.05 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5 -
ERTi 7 R52401 0.03 0.08-0.16 0.015 0.008 0.12 - - 0.12-0.25







4. Definition of Different Levels



ERTI-1: Grade 1 is the lowest strength unalloyed (or Commercially Pure-CP)grade. Grade 1 is used in applications where ductility is paramount,such as explosive cladding, loose linings, expanded metal, and deep drawing applications. It is also used in electrolytic applications like coated anode substrates for production of chlorine and sodium chlorate.



ERTI-2: Grade 2 is the "workhorse"of the industrial corrosion market and most common unalloyed(or commercially Pure-CP)grade. Grade 2 is generally the most readily available in all product forms and has the lowest cost . It is used for process equirpment like pressure vessels ,columns ,tanks,heat exchangers,shafts,blowers and fans,conderser tubing ,valves,fittings and pipe.



ERTI-4: Grade 4 is the highest strenth unalloyed(or Commerically Pure-CP) grade.Grade 4 is rarely used I corrosion service ,but have beeen used(under AMS Specifications)in aircraft components where its higher strength can reduce the weight of components like bulk-heads and firewalls.







5. Detailed Images and Application

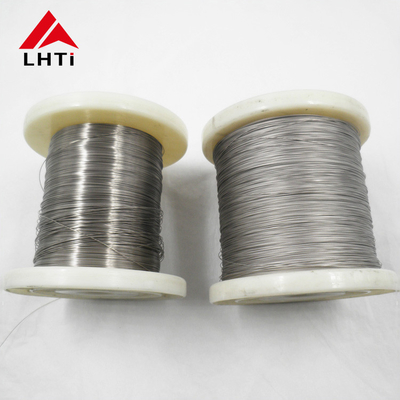

AWS A5.16 Bending Titanium Wire Spool Gr1 Machined Finish 0

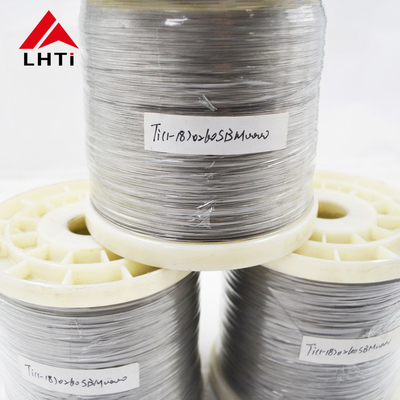

AWS A5.16 Bending Titanium Wire Spool Gr1 Machined Finish 1







6. Our Service



  • We have the stocks so we would provide our clients the short delivery time.
  • Strict control from raw materials till products finished, so the quality is guaranteed.
  • Customized sizes are offered as well as specified sizes and multiple sizes.
  • Strict quality test from raw material to product.
  • Original mill sheet test reports EN 10204.3.1 is available.
