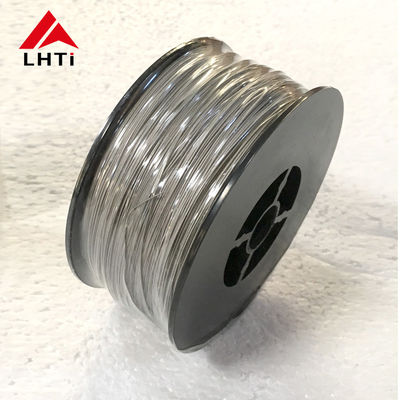

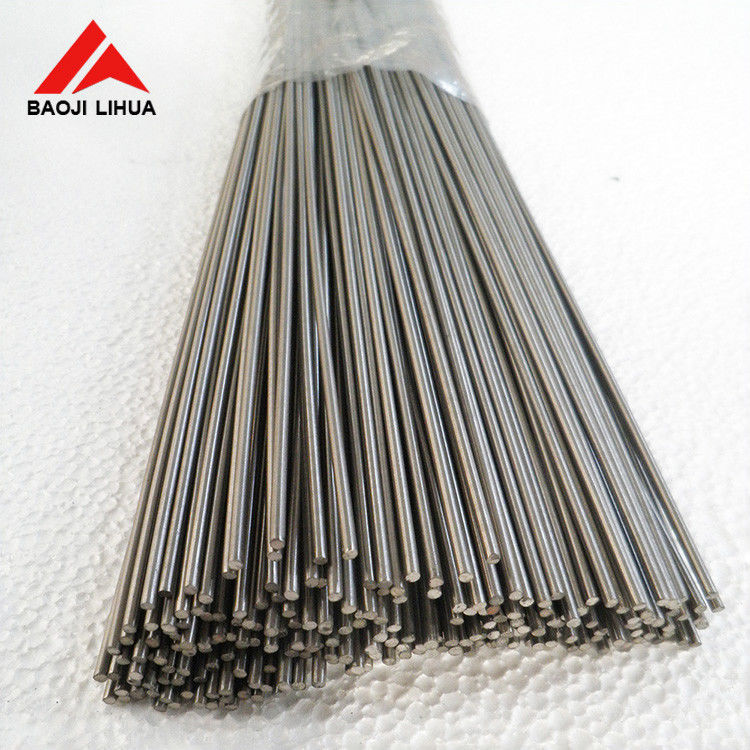

Gr5 Titanium Alloy Wire Grade 5 Titanium Welding Wire

Brand Name:	LH
Model Number:	LHTS
MOQ:	10kgs
Price:	USD15.5-39.5 per kg
Payment Terms:	D/A,D/P,T/T,Western Union,L/C
Supply Ability:	50000 kgs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji ,Shaanxi ,China

Certification:

ISO9001:2015; SGS;BV;TUV

Standard:

ASTM / ASME SB863 , AWS A5.16

Grade:

Grade 5

Diameter:

0.1-7.0mm

Length:

1000mm 2000mm 3000mm, Or As Customers' Requets

Material:

Titanium Alloy

Shape:

Straight, Spool, Coil

Product Name:

Gr5 Titanium Wire

Surface:

Pickled, Polished

Packaging Details:

Inside Plastic bag with laber, outside plastic box, then carton box/plywood case

Supply Ability:

50000 kgs per month

Highlight:

titanium alloy wire

pure titanium wire

Product Description

Gr5 Titanium Alloy Wire Grade 5 Titanium Welding Wire

Grade 5 Titanium Wire is alloyed with 6% Aluminum and 4% Vanadium. This high-performance material is used across various industries including motorsports, aerospace, naval, and industrial applications. Titanium Grade 5 Wire has successfully replaced heavier, less durable materials in many engineering applications due to its superior strength-to-weight ratio and cost-effectiveness.

As the most common high-strength, lightweight titanium alloy, Grade 5 offers exceptional corrosion resistance in both natural and industrial environments. The alloy's composition includes aluminum, manganese, iron, molybdenum and other metals to enhance strength, temperature resistance, and reduce weight.

Typical applications include pressure vessels, rocket engine cases, helicopter rotor hubs, fasteners, and critical forgings requiring high strength-to-weight ratios. With ultimate tensile strength exceeding 120,000 psi, this aerospace-grade alloy accounts for approximately 50% of global titanium usage.

Product Specifications

Product Name:

Titanium wire

Specifications:

ASTM B863 ASME SB863

Material Grade:

Gr.5 Ti6Al4V / UNS R56400

Diameter:

0.1-7.0mm

Length:

As customer's request

Shape:

In coil, spool, straight

Specialization:

Filler Wire, Coil Wire, Electrode Wire, Welding Wire

Diameter Range & Types

Diameter (mm)	Diameter (inch)	Coil	Spool	Straight
>0.78 to 3.25	>0.031 to 0.128	Yes	Yes	Yes
>3.25 to 6.00	>0.128 to 0.236	Yes	No	Yes

* Diameter Tolerance: +/-0.05mm (+/-0.002") or finer
* Spools: 100mm - 300mm (3.9" - 12")
* Straight Length: 300mm - 3000mm (12" - 118")

Permissible Diameter Variations

Outside Diameter (inch/mm)	Wire in Coil or Spool (mm)	Wire in Straight (mm)
0.02~0.045 (0.508~1.143), excl	±0.001 (±0.0254)	±0.0015 (±0.0254)
0.045~0.062 (1.143~1.575), excl	±0.0015 (±0.0381)	±0.002 (±0.0508)
0.062~0.090 (1.575~2.286), excl	±0.002 (±0.0508)	±0.0025 (±0.0635)
0.090~0.187 (2.286~4.750), excl	±0.003 (±0.0762)	±0.003 (±0.0762)
0.187~0.250 (4.750~6.350), excl	±0.004 (±0.1016)	±0.004 (±0.1016)
