Gr7 Titanium Alloy Sheet Cold Rolled ASTM B265

Name: Gr7 Titanium Alloy Sheet Cold Rolled ASTM B265
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Sheet
Price: 25.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Sheet
MOQ:	50 kg
Price:	USD13.00-38.00 per kg
Payment Terms:	T/T,,L/C,Western Union
Supply Ability:	200000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Standard:

ASTM B265

Technology:

Cold Rolled

Shape:

Straight

Surface:

Polished, Acid Washing

Packaging Details:

Plywood box with soft foam for additional protection

Supply Ability:

200000 kg per month

Highlight:

Cold Rolled Pure Titanium Sheet

Polished Titanium Alloy Plate

GR7 Ti Plates

Product Description

Gr7 Titanium Alloy Sheet Cold Rolled ASTM B265

This titanium sheet and plate is cold rolled to ASTM B265 and supplied with a polished or acid washed surface. Gr7 titanium carries a small addition of palladium, which raises its resistance to chlorides and acidic media, so it holds up where plain titanium would pit. The material is light, strong and non-magnetic, has a good strength to weight ratio, and keeps its strength when working from 450 to 500 Celsius. Sheet and plate are cut to the customer size and can be supplied in thicknesses from 0.5 mm to 80 mm for forming, welding or machining.

Technical Specifications

Product	Titanium sheet and plate
Material	Titanium and titanium alloy
Grade	Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Standard	ASTM B265, ASTM F136, ASTM F67
Technology	Cold rolled
Surface	Polished, acid washing
Shape	Straight
Density	4.51 g/cm3

Available Sizes

Thickness	Width	Length
0.5 to 5.0 mm	1000 mm	2000 to 3500 mm
5.0 to 30 mm	1000 to 2500 mm	3000 to 6000 mm
30 to 80 mm	1000 mm	2000 mm

Chemical Composition Requirements (max %)

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni
Gr1	0.03	0.08	0.015	0.20	0.18	-	-	-	-	-
Gr2	0.03	0.08	0.015	0.30	0.25	-	-	-	-	-
Gr5	0.05	0.08	0.015	0.40	0.20	5.5-6.75	3.5-4.5	-	-	-
Gr7	0.03	0.08	0.015	0.30	0.25	-	-	0.12-0.25	-	-
Gr9	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0	-	-	-
Gr12	0.03	0.08	0.015	0.30	0.25	-	-	-	0.2-0.4	0.6-0.9

Material Properties

Property	Value
Strength to density ratio	Better than most structural metals
Working temperature	450 to 500 °C for long service
Corrosion resistance	Chlorides, sea water, nitric and sulphuric acid
Magnetic property	Non-magnetic

Product Pictures

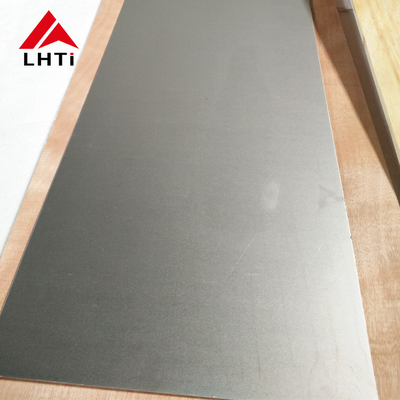

Gr7 cold rolled titanium sheet ASTM B265

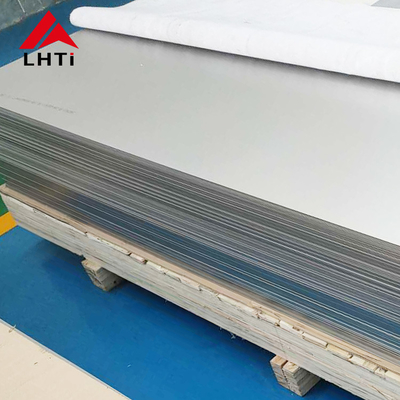

Polished titanium alloy plate Gr7

Applications

The sheet and plate are used where corrosion resistance and light weight matter. Typical uses include chemical and process equipment, heat exchangers, desalination and water treatment plants, marine structures, aircraft parts and medical components. Gr7 is chosen for chloride and acid service where standard titanium could pit. Sheet and plate can be cut, formed and welded to the customer drawing, and each batch is supplied with a material test certificate. Material is packed in a plywood box with soft foam to protect the surface for export.
