products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Titanium Sheet
Created with Pixso.

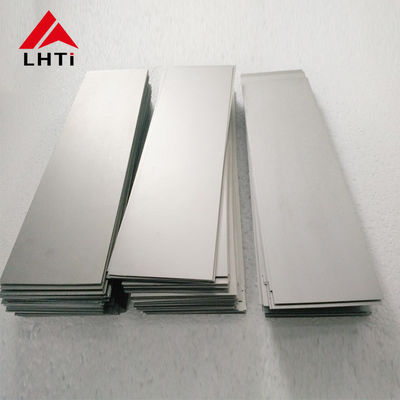

Grade 2 and Grade 5 Titanium Sheet with 99.0% Min Purity and Max 25mm Thickness for Industrial Applications

Grade 2 and Grade 5 Titanium Sheet with 99.0% Min Purity and Max 25mm Thickness for Industrial Applications

Grade 2 and Grade 5 Titanium Sheet with 99.0% Min Purity and Max 25mm Thickness for Industrial Applications

Brand Name: LHTI
Model Number: LH-145
MOQ: 1kg
Price: US dollar $15/kg--US dollar $29.5/kg
Payment Terms: L/C,D/P,T/T,Western Union,Paypal.
Supply Ability: 10000 kgs per month
Detail Information
Product Description
Detail Information
Place of Origin:
Baoji Shaanxi China
Certification:
ISO9001
Standard:
ASTM B265
Material:
Titanium
Grade:
Grade 2 Grade 5
Purity:
99.0%min
Key Words:
Titanium
Thickness:
Max 25mm
Width:
2000mm
Length:
3000mm
Packaging Details:
Pearl cotton package surface, then put into the standard export cases or Carton case.
Supply Ability:
10000 kgs per month
Highlight:

thin titanium sheet

,

forming titanium sheet

Product Description
Grade 2 Titanium Sheet Grade 5 ASTM B265 99.0% Min Purity Machined Finish
Product Specifications
Item Name: Gr5 titanium plate/titanium sheet
Material: GR1, GR2, GR3, GR4, GR5, GR7, GR12
Standard: ASTM B265, ASTM F136, ASTM F67, ASTM 4928
Dimensions
Width: 400-3000mm (Hot rolled), 400-1300mm (cold rolled)
Length: 1000-8000mm (Hot rolled), 1000-4000mm (cold rolled)
Thickness: >4.0-80.0mm (Hot rolled), 0.3-6.0mm (cold rolled)
Shape: Sheet (plate), block or ingot
Applications
  • Heat exchangers and condensers
  • Seawater desalination industry
  • Chemical Industry
  • Electroplating equipment
  • Precision instruments
  • Environmental protection equipment
  • Auto industry
  • Medical and Sports industry
  • Electric power industry
Certifications
ISO9001:2008, TUV, EN10204.3.1
Mechanical Properties
Ta1: M(anneal) thickness=0.3-25.0mm tensile strength(Rm/Mpa):>=240
Ta2: M(anneal) thickness=0.3-25.0mm tensile strength(Rm/Mpa):>=400
Tc4: M(anneal) thickness=0.8-2.0mm/>2.0-5.0mm/>5.0-10.0mm/10.0-50.0mm tensile strength(Rm/Mpa):>=895
Payment Options
T/T, L/C, Paypal, Escrow, Western union or as your inquiry
ASTM Grade Specifications
ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation %
ksi Mpa ksi Mpa
Gr1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 24
Gr2 Unalloyed Ti ("Pure") 50A -CP2 50 345 40 275 20
Gr4 Unalloyed Ti ("Pure") 80A -CP4 80 550 70 483 15
Gr5 Ti 6Al 4V 130 895 120 828 10
Gr7 T-50A 0.15Pd 50 345 40 275 20
