Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015
Model Number: LH-Ti2, SS
Payment & Shipping Terms
Minimum Order Quantity: 1 pieces
Price: US dollar $550piece--US dollar $2,500/piece
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 15-30 Days
Payment Terms: L/C,D/P, T/T etc.
Supply Ability: 20000 pieces per month
Product Name: |
Factory Manufacture Various Sheet To Tube Sheet Welding Clad Tube Sheet For Heat Exchanger |
Material: |
Ti , SS , Suplex |
Standard: |
ASTM/ASME B265,ASTM/ASME B381 |
Tubesheet Diameter: |
MaxΦ8600mm |
Hole Diameter Range: |
1.5mm---238mm |
Hole Depth: |
Max1100mm |
Quality Test: |
UT,PT |
Third-party Testing: |
Available |
Product Name: |
Factory Manufacture Various Sheet To Tube Sheet Welding Clad Tube Sheet For Heat Exchanger |
Material: |
Ti , SS , Suplex |
Standard: |
ASTM/ASME B265,ASTM/ASME B381 |
Tubesheet Diameter: |
MaxΦ8600mm |
Hole Diameter Range: |
1.5mm---238mm |
Hole Depth: |
Max1100mm |
Quality Test: |
UT,PT |
Third-party Testing: |
Available |
Factory Manufacture Various Sheet To Tube Sheet Welding Clad Tube Sheet For Heat Exchanger
The heat exchanger tube sheet, It's in the round plate to drill out than the outer diameter of the heat exchanger pipe is slightly larger than the hole, is the heat exchanger to play a fixed tube and sealing medium role of the round cake. An accessory that wears a tube into a welded hold and holds it in such a way.
Item name : Titanium Tubesheet
Material: Ti , SS , Duplex
Size &Standard: As per client drawing
Production Method: Forging,annealing and machining
Advantage: Excellent corrosion resistance ability
Packing: Plywood case
Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc.

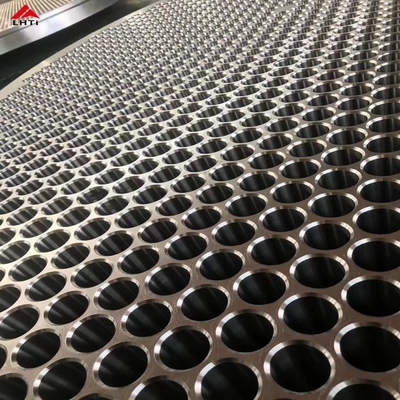

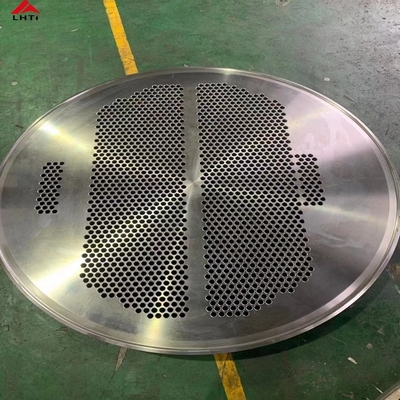

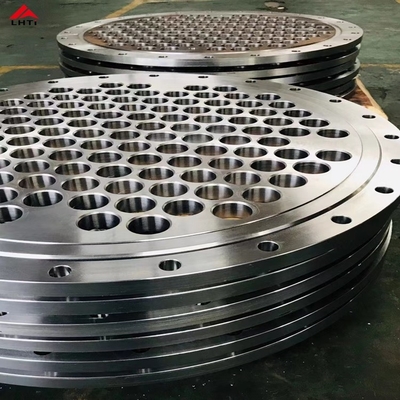

Detailed images:
Application
Boilers and pressure vessels;Petroleum;Chemical industry;Shipbuilding;Pharmaceutical;Metallurgy;Machinery;Food production ETC.
Product performance
● Low Density and High Strength
● Excellent Corrosion Resistance
● Good resistance to effect of heat
● Excellent Bearing to cryogenic property
● Nonmagnetic and Non-toxic
● Good thermal properties
Grade | Fe max | O max | N max | C max | H max | Pd | Al | V | Mo | Ni | Elong'n |
Σb (Mpa) |
σr0.2 (Mpa) |
No | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | % | MPa | MPa |
Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | 24 | 240 | 140 | |||||
Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 20 | 400 | 275 | |||||
Grade 5 | 0.4 | 0.2 | 0.05 | 0.1 | 0.015 | 5.5-6.7 | 3.5-4.5 | 10 | 895 | 828 | |||
Grade 7 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0,12-0,25 | 20 | 400 | 275 | ||||
Grade 12 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0.3 | 0.8 | 18 | 460 | 300 |
Production Testing
●According to globally recognized standards, such as ASTM, AMS, ASMEand provide third-party inspection reports, DNV accredited ISO 9001: 2008 quality management system.
●100% titanium sponge to produce titanium ingot and 3 times melting to ensure the uniformity of chemical composition. For chemical composition inspection , not only inspect the titanium ingot, but also the semi finished products and finished products, just to ensure 100% qualified products before shipping.
●Mechanical property testing making sure all titanium products can satisfy mechanical features before delivery.
●Strict inspection when producing and finished products.Visual inspection to check surface quality, ensuring without flaw, black dot and any other defects.
●Ultrasonic Flaw Detection make sure thers are no defect inside.
●Chemical Composition detection make sure all chemical component can meet your demands.
●Yield strength,tensile strength ,elongation percentage reduction of area,Impact bending test,microstructure tests,
bending strength test etc.
● Hardness testing, Penetrant testing, Radiographic testing etc. as per your requirements.
Titanium tubesheet used in heat exchanger:
About our company:
Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road, Baoji city---
It is famous for manufacturing Titanium, called “China Titanium Valley”.We are specialized in
manufacturing titanium products.With more than 14 years export Experience, our products was
sold to Asia, Europe, North America in large quantity.In addition to provide preferential price
for customers, we pay much attention to quality, and have a good after-sales service.
All products we produced are based on the standard: Amecian standard,German standard ,
Aerospace standard, European standard, etc. Including ASTM/ASME.JIS,DIN etc.Lihua is
certified by ISO9001:2008 . Our company's mantains long-term cooperations with SGS,BV,
LR'S ,TUV and other international inspection agency .Third party test is available.
Packing and shipping:
We suggest you pack them in plywood cases. Because we have to consider safety and freight.
In plywood cases, we usually put the product in a plastic bag, which is filled with protective pearl wool or foam film to prevent the product from being scratched.
The most important thing is that we have to make sure that the product is safe in transit and that you have to pay less for shipping.
