Metal Duplex Titanium PVDF PP ABS Bubble Cap Tray PT Test

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015
Model Number: LH-Ti2
Minimum Order Quantity: 1 pieces
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 15-30 Days
Payment Terms: L/C,D/P, T/T etc.
Supply Ability: 20000 pieces per month
Detail Information
Product Name: Bubble Cap Tower Tray For Distillation Column For Tower InternalsCustomized Metal Duplex & Titanium PVDF PP ABS Bubble Cap Tray Material: Titanium Nickel Zirconium
Type: Tower Trays Function: Vapor Fully Contacts With Liquid
Application: Petrochemical Refinery Distillation Towers Quality Test: UT,PT
Third-party Testing: Available
High Light:

PP ABS Bubble Cap Tray

,

Titanium PVDF Bubble Cap Tray

,

Nickel Zirconium Bubble Cap Tray


Product Description

Bubble Cap Tower Tray For Distillation Column for tower internals



Description

Bubble cap tray is a flat perforated plate with risers (like pipes) around the perforations, and caps in the form of inverted cups over the risers.

The caps are usually equipped with slots or holes through which vapor comes out. The cap is mounted so that there is a space between riser and cap to allow the passage of vapor. Vapor rises through the riser and is directed downward by the cap passing through slots in the cap, and finally bubbling through the liquid on the tray. As vapor has to pass through many passages, this leads to higher pressure drop and lower capacity than other conventional trays. Liquid and froth are filled on the tray to a depth at least equal to weir height or riser height, hereby giving the bubble cap tray a unique ability to be used for reaction applications.


Advantage
(1) The gas and liquid phases are in full contact and the mass transfer area is large, so the tray efficiency is high.
(2) The operation flexibility is large, and the high efficiency can be maintained when the load variation range is large.
(3) It has high production capacity and is suitable for large-scale production.
(4) It is not easy to block, the medium adapts to a wide range, and the operation is stable and reliable
Application:
Mainly usend in reactive distillation, separation of certain organic products; separation of benzene-methyl; separation of
nitrochlorobenzene; oxidation and absorption of ethylene.



Bubble cap tower tray for distillation system

Tower tray is recommended to be applied in the tray columns in the columns. Valve tray offer to you solution with higher capacity, higher separation efficiency, lower pressure drop and better flexibility as well as lower capital costs.

Feature:
1) Higher capacity - typically 20-40%,

2) Higher tray efficiency - typically 5-15%

3) Lower pressure drops - typically 15-20%

4) Higher turn down flexibility

5) Longer column run-time
Application area:
Petrochemical, coal chemical, precision chemical, nuclear power, metallurgical, pharmaceutical, machinery, food, pesticide, rubber, aerospace, marine, dye, new power equipment and so on.

Detailed images:

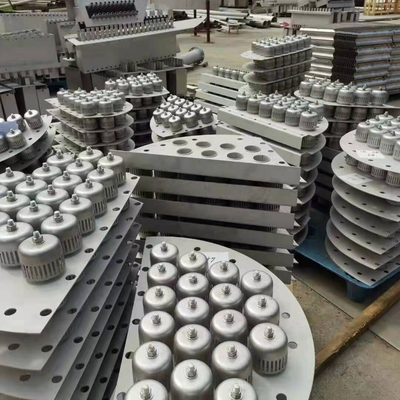

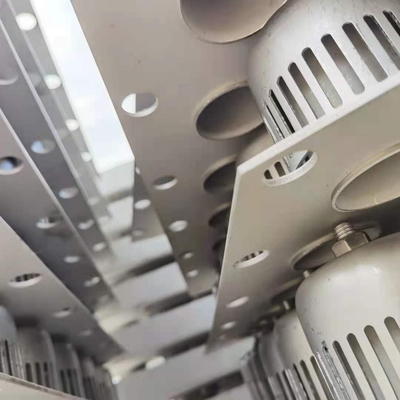

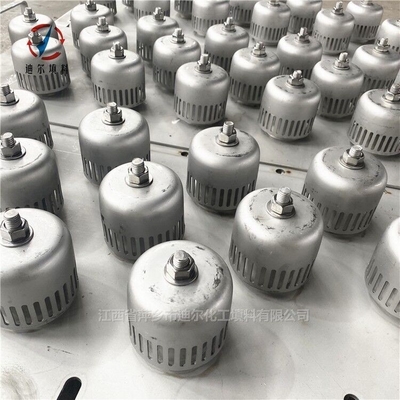

Metal Duplex Titanium PVDF PP ABS Bubble Cap Tray PT Test 0

Metal Duplex Titanium PVDF PP ABS Bubble Cap Tray PT Test 1

 Metal Duplex Titanium PVDF PP ABS Bubble Cap Tray PT Test 2





Application
Bubble-Cap trays have numerous applications in refinery and gas plants.
Model
Material Type
1
2
Norminal Dia. Dg
80
100
150
80
100
150
Slot Height
H
1
20
20
35
20
20
35
2
25
25
-
25
25
-
3
30
32
-
30
32
-
Slot Breadth b1
4
5
R4/13.5
4
5
R4/13.5
Slot Number n
30
32
28
30
32
28
Slot Pitch f
8.38
9.82
17.7
8.38
9.82
17.7
Riser Pore Dia. d1
55
68
106
55
68
106





Related products :





Related Products

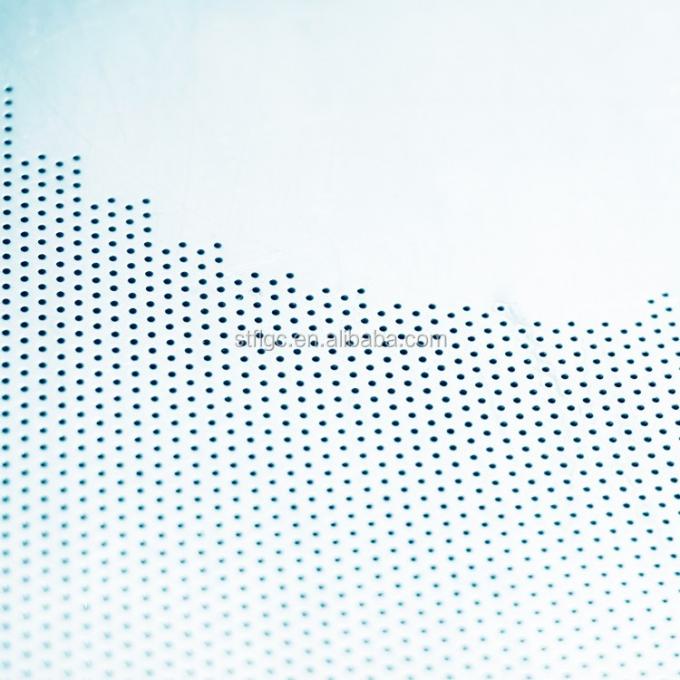

Metal Duplex Titanium PVDF PP ABS Bubble Cap Tray PT Test 3



Sieve Trays

100% Response Rate

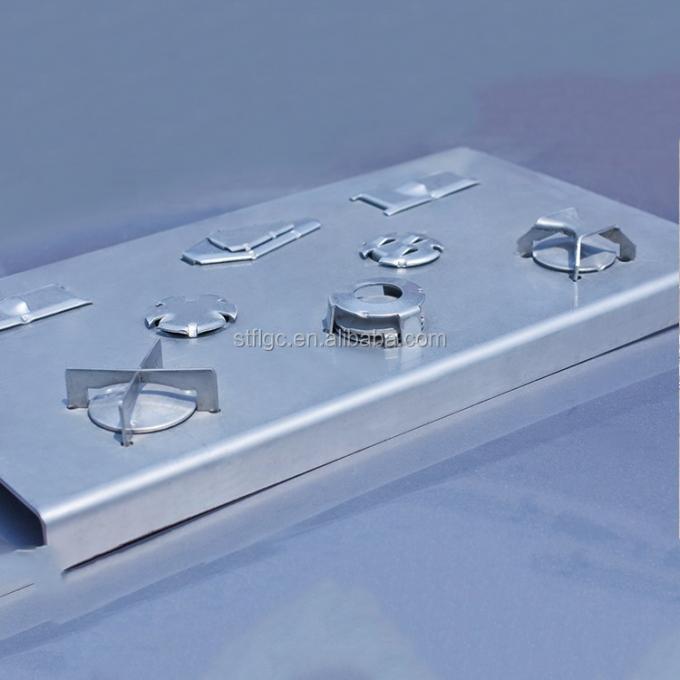

Metal Duplex Titanium PVDF PP ABS Bubble Cap Tray PT Test 4



Floating Valve Trays

100% Response Rate

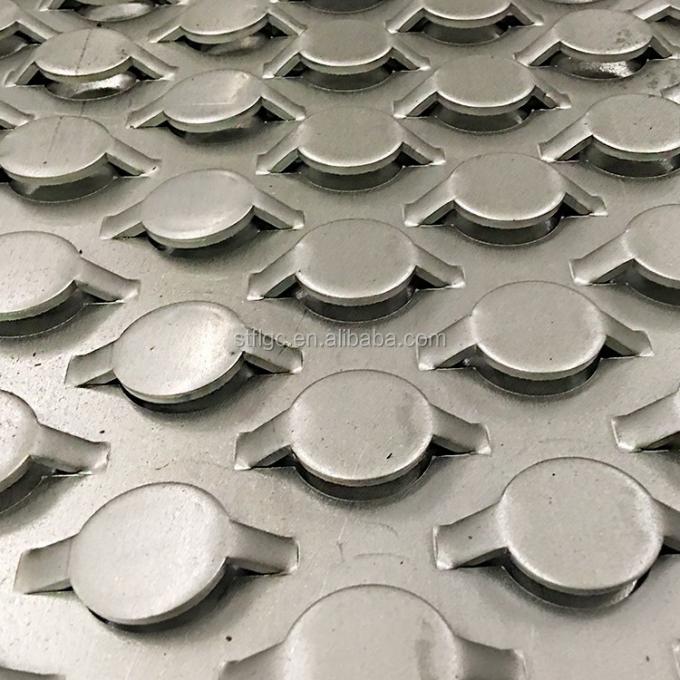

Metal Duplex Titanium PVDF PP ABS Bubble Cap Tray PT Test 5
