GR5 Round Titanium Rod ASTM F136 Dia 32mm Annealed Titanium Bar

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015; TUV; SGS;BV

Model Number: Titanium rod

Payment & Shipping Terms

Minimum Order Quantity: 50 kg

Packaging Details: Plywood box with soft foam for additional protection

Delivery Time: 10-25 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal

Supply Ability: 300000 kg per month

Get Best Price
Highlight:

GR5 Round Titanium Rod

,

ASTM F67 Annealed Titanium Bar

,

Dia 6mm Annealed Titanium Bar

Diameter:
3mm-350mm
Material:
Pure/alloy Titanium
Surface:
Bright,Polished,Pickling
Condition:
Annealed; M
MOQ:
50 Kg
Packing:
Standard Export Packing
Diameter:
3mm-350mm
Material:
Pure/alloy Titanium
Surface:
Bright,Polished,Pickling
Condition:
Annealed; M
MOQ:
50 Kg
Packing:
Standard Export Packing
GR5 Round Titanium Rod ASTM F136 Dia 32mm Annealed Titanium Bar

GR5 Round Titanium Rod ASTM F136 Dia 32mm Annealed Titanium Bar



As a leading manufacturer of titanium products for over 16 years, Baoji Lihua has exported medical titanium bar to many countries, including the US, Ukraine, Egypt, Turkey and Russia etc. The quality of our products is widely recognized. So you should have confidence in our company.



1. Product Information



A. Standard: ASTM B348,ASTM F67,ASTM F136, AMS 4928.



B. Material grade: Grade 1, grade 2, grade 5, grade 9, grade 23(Gr5 ELI).



C. Diameter size in stock: 3mm/6mm/8mm/10mm/20mm/30mm, length: 1000mm-6000mm, or cutting to your needed length



D. Product Status: Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status



E. Shape: Round bar, square bar , hex bar



F. Feature: 1.Polished surface without any defects free from cracks no pitting.

                  2.Two ends flatting making sure length tolerance and good looking.







2. Chemical requirements



  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal









3. Physical Properties



Physical Properties
  Tensile Strength(min) Yield Strength(min) Elongation(%)
ksi MPa ksi MPa
Grade 1 35 240 20 138 24
Grade2 50 345 40 275 20
Grade 3 65 450 55 380 18
Grade 4 80 550 70 483 15
Grade 5 130 895 120 828 10
Grade 7 50 345 40 275 20
Grade 9 90 620 70 483 15
Grade 12 70 483 50 345 18
Grade 23 120 828 110 759 10







4. Tolerance



Diameter(mm) h7 h8 h9 h10 h11 h12
Tolerance precision (um)
3~6 12 18 30 48 75 120
6~10 15 22 36 58 90 150
10~18 18 27 43 70 110 180
"h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X)

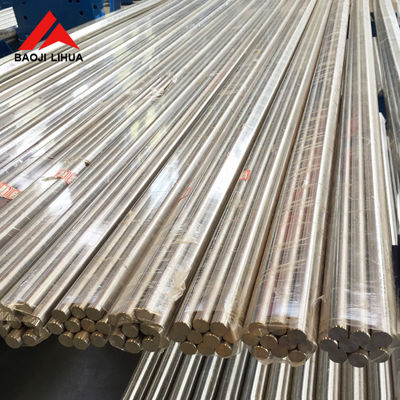

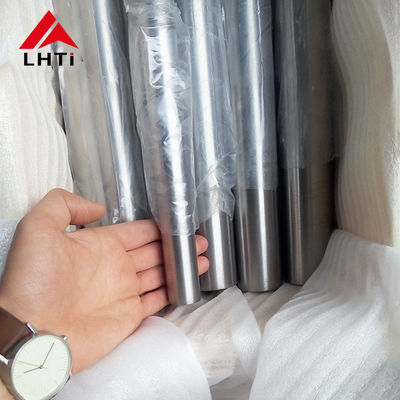

5. Detailed Images





GR5 Round Titanium Rod ASTM F136 Dia 32mm  Annealed Titanium Bar 0



GR5 Round Titanium Rod ASTM F136 Dia 32mm  Annealed Titanium Bar 1

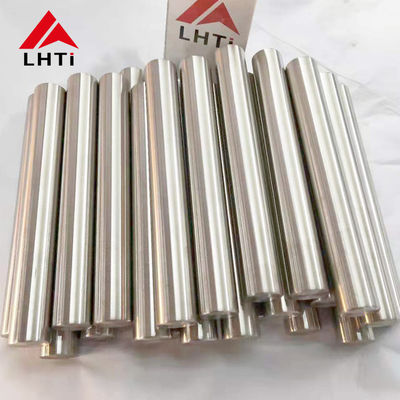

6. Production Process





GR5 Round Titanium Rod ASTM F136 Dia 32mm  Annealed Titanium Bar 2




Titanium rod processing Flow:



Titanium Sponge and master alloys Compacting electrodes Melting → Forging → Billets → Procision forging → Machining → Bars







7. Quality Assurance:





A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.



B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.



C. Chemical Composition making sure all chemical components can satisfy customer’s demands.



D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.







8. FAQ





FAQ
Q1.--How can you ensure the product quality?

--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.

Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customerized products.
Q3.--Can we get the free sample?
--Sure.
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
Q5.--Do you have your website?
--Yes, Please click here. http://www.metalstitanium.com(Independent website)
Q6.--What is the necessary information for a inquiry?

--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.
