| Place of Origin: | China |
|---|---|
| Brand Name: | LHTi |
| Certification: | ISO9001:2015; TUV; SGS |
| Model Number: | titanium coil |
| Minimum Order Quantity: | 5pcs |
| Packaging Details: | Plywood box with soft foam for additional protection |
| Delivery Time: | 12-25 work days |
| Payment Terms: | T/T, MoneyGram, L/C, Western Union, Paypal |
| Supply Ability: | 200000 kg per month |
| Materials: | Titanium Coil | Outer Diameter: | 6~168mm |
|---|---|---|---|
| Length: | <15000mm | Processing Service: | Bending, Cutting |
| Wall Thickness: | 0.5~10mm | Inside Diameter: | 0.5~100mm |
| Processing: | Seamless | MOQ: | 50 |
| High Light: | OD 6mm Titanium Tube Coil,SGS Heat Exchanger Titanium Tube Coil,ASTM B862 Titanium Tube Coil |
||

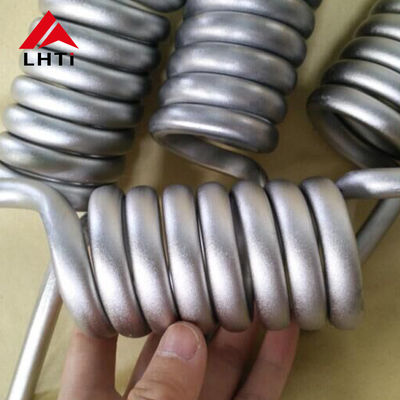

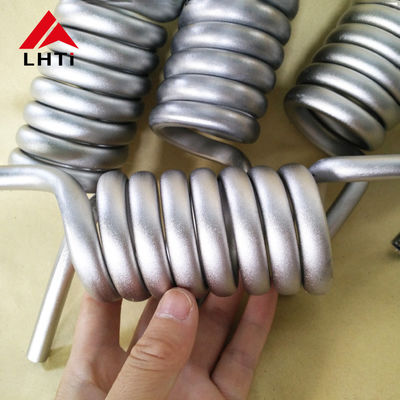

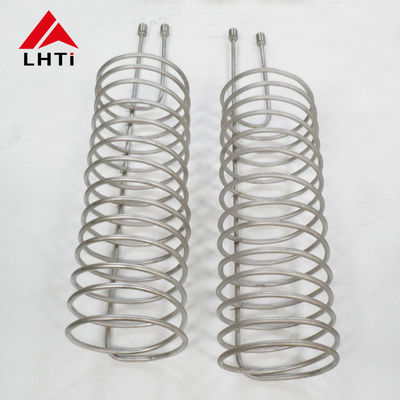

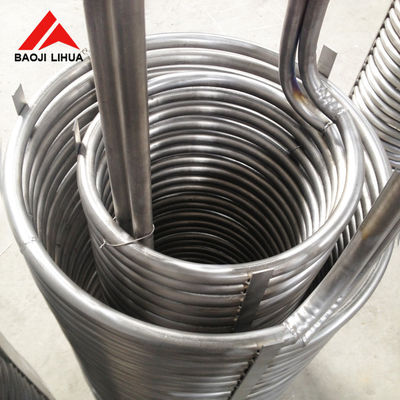

Pure titanium tube coil for heat exchanger pipe
Our Company
As a leading manufacturer of titanium products for over 16 years, Baoji Lihua has exported titanium tube to many countries, including the US, India and Korea etc. The quality of our products is widely recognized. So you should have confidence in our company.
1. Product Feature
Titanium tubes have the feature of light weight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condensator, evaporator and transmission pipeline. Many nuclear power industry ues titanium tubes as the unit standard tube
2.Quick Details
|
Place of Origin: |
Shaanxi, China |
|
Outer Diameter |
6~168mm |
|
Material |
Pure Titanium |
|
Standard |
ASTM B338, ASTM B337, ASTM B861, ASTM B862 |
|
Application |
Heat exchanger, condenser pipe, Heat exchanger, condenser |
|
Technique |
Seamless, Cold Roll & Annealed |
|
Grade |
Grade1 Grade2, Gr1 Gr2 |
|
Wall Thickness |
0.5~10mm |
|
Surface |
Polished surface |
|
Dimension |
Custom-made size available |
|
MOQ |
50 |
|
Key Words |
titanium tube coil for heat exchanger |
| DIMENSION (MM) | OD6~168*WT0.5~10.0×L1000~15000mm (Cold Roll & Seamless tube) |
3.Supply Ability
Supply Ability 30 Ton/Tons per Month
4.Packaging & Delivery
Packaging Details: plastic bag inside, wooden box outside.
Port: Shanghai, Tianjin
Leading time:
|
Quantity(Kilograms) |
1 - 1000 | >1000 |
| Est. Time(days) | 30 | To be negotiated |
5.Pure titanium tube coil for heat exchanger pipe
| Grade | N | C | H | Fe | O | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | bal |
| Gr2 | 0.03 | 0.05 | 0.015 | 0.30 | 0.25 | bal |
2. Mechanical Properties
| Grade | Tensile strength (δ5MPa) | Residual elongation stress (δ0.2MPa) | Elongation δ (%) |
| Gr1 | ≥240 | 140~310 | ≥24 |
| Gr2 | ≥400 | 275~450 | ≥20 |
6.Applications
Heat exchanger; Condenser;
Coiling pipe; petroleum pipeline;
Sea farming; electroplating equipment;
Fluid Transportation Piping
We need below information to quote for you:
1. What is the dimension of the titanium pipe? Out diameter? Wall thickness? Total length?
2. Material Grade? Gr1 or Gr2? Or some other Grade?
3. Produce Standard?
4. Application?
5. Quantity?
6. Other requirements?
If you have any interests, please don't hesitate to inquiry.
We welcome the sample orders.
