|Place of Origin:||China|
|Certification:||ISO9001:2015; TUV; BV; SGS|
|Model Number:||Titanium elbow|
|Minimum Order Quantity:||5 piece|
|Packaging Details:||Plastic bag with laber, outside plastic box, then plywod box|
|Delivery Time:||5-25 work days|
|Payment Terms:||T/T, MoneyGram, L/C, Western Union, Paypal|
|Supply Ability:||50000 pcs per month|
|Standard:||ASME B16.9||Material:||Gr2 Gr7 Gr9|
|Application:||Chemical Industry||Wall Thickness:||Sch5s-Sch160s|
|Technique:||Seamless/Welded||Type:||R=1.0D, R=1.5D, R=3D|
Gr9 Titanium Elbows,
Sch5s Titanium Elbows,
90 Degree Titanium Elbows
Titanium elbows 90 degree 45 degree 180 degree connector pipe fittings
1. Product Information
Grade: GR1 GR2 GR7 GR12
Standard: ASTM B363, ASME SB363, ASME B16.9, ANSI B16.9, JIS, ISO, BS, DN etc.
Application: Chemical industry
Type: 45 degree elbow, 90 degree elbow, 180 degree elbow
Type 2: Long radius, Short radius
Technique: Seamless, Welded
Outer Diameter: 1/2"-48"(DN15-DN1200)
Wall Thickness: Sch5s-Sch160s
|Nominal diameter DN||Diameter of mm||Grade|
|Note: Specific thickness and diameter can also be customized.|
2. Why Choose Titanium
|High Strength||Titanium strength/density ratio is better than other metals, components with high strength, good rigity, less weight can be made out of titanium. Titanium is applied for aircrafts engines, frames, skins, fastners and landing gears.|
|Anti-Corrosion||Compared with stainless steel, titanium alloy’s corrosion is better in moisture laden air, seawater, titanium greatly resists spot corrosion, acid corrosion and stress corrosion. Titanium resists corrosions to alkali, chloride, chlorinated organic sunstances, sulphuric acid, nitric acid.|
|High-Temperature Resistance||Titanium application temperature’s higher than aluminium alloys. Titanium can work in 450-500℃ for long time. Titanium alloy stil prossesses high strength when working in 150-500℃. Titanium working temperature can be reached to 500℃|
|Low Temperature Resistance||Titanium alloys still owns its mechanical properties when working in low or super low temperature conditions. Titanium alloys with low-temperature resisitance and extra low interstitial still possess good ductility, therefore, titanium alloy is sort of good low temperature structural material.|
|Eco-Friendly Metal||Thermal conductivity of titanium is lower than carbon steel or copper, but titanium owns very good corrosion resistance, therefore, titanium thickness can be greatly reduced, also the heat exchange mode is dropwise condensation between titanium and steam. This kind of mode reduces heat transfer resistance, no fouling on titanium surface, which makes titanium thermal conductivity better.|
|Good Thermal Conductivity||Titanium is non-magnetic metal, it can’t be magnetized in large magnetic field, also titanium is toxic-free and compatibility with blood, there, titanium is applied in medical field.|

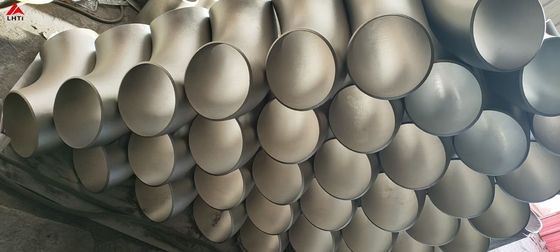

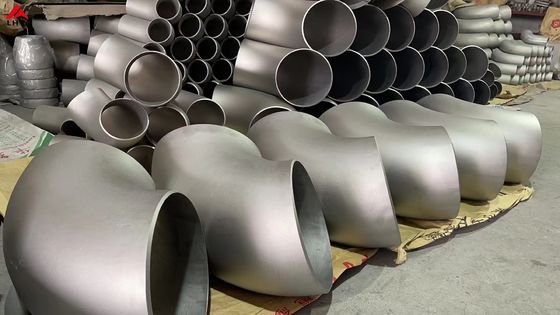

3. Detailed Images
4. Related Products
5. Our Services
(1) We have the stocks so we would provide our clients the short delivery time.
(2) Strict control from raw materials till products finished, so the quality is guaranteed.
(3) Customized sizes are offered as well as specified sizes and multiple sizes.
(4) Strict quality test from raw material to product.
(5) Original mill sheet test reports EN 10204.3.1 is available.
|Q1.--How can you ensure the product quality?|
--All products are manufactured according to ASTM standard (Bolts are according to ASME
MTC Material Test Certification.
|Q2.--Can you print our LOGO on the products?|
|--Sure, and we welcome the customerized products.|
|Q3.--Can we get the free sample?|
|Q4.--What about the payment terms?|
|--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.|
|Q5.--Do you have your website?|
|--Yes, Please click here. http://www.metalstitanium.com(Independent website)|
|Q6.--What is the necessary information for a inquiry?|
--Product name, specification, material grade and quantity. If customized products, your drawing and
special requests also needed.
7. Our Company
As a leading manufacturer of titanium products for over 16 years, we have exported titanium elbow to many countries, including Italy, Turkey, Korea and Chile etc. The quality of our products is widely recognized. So you should have confidence in our company.
